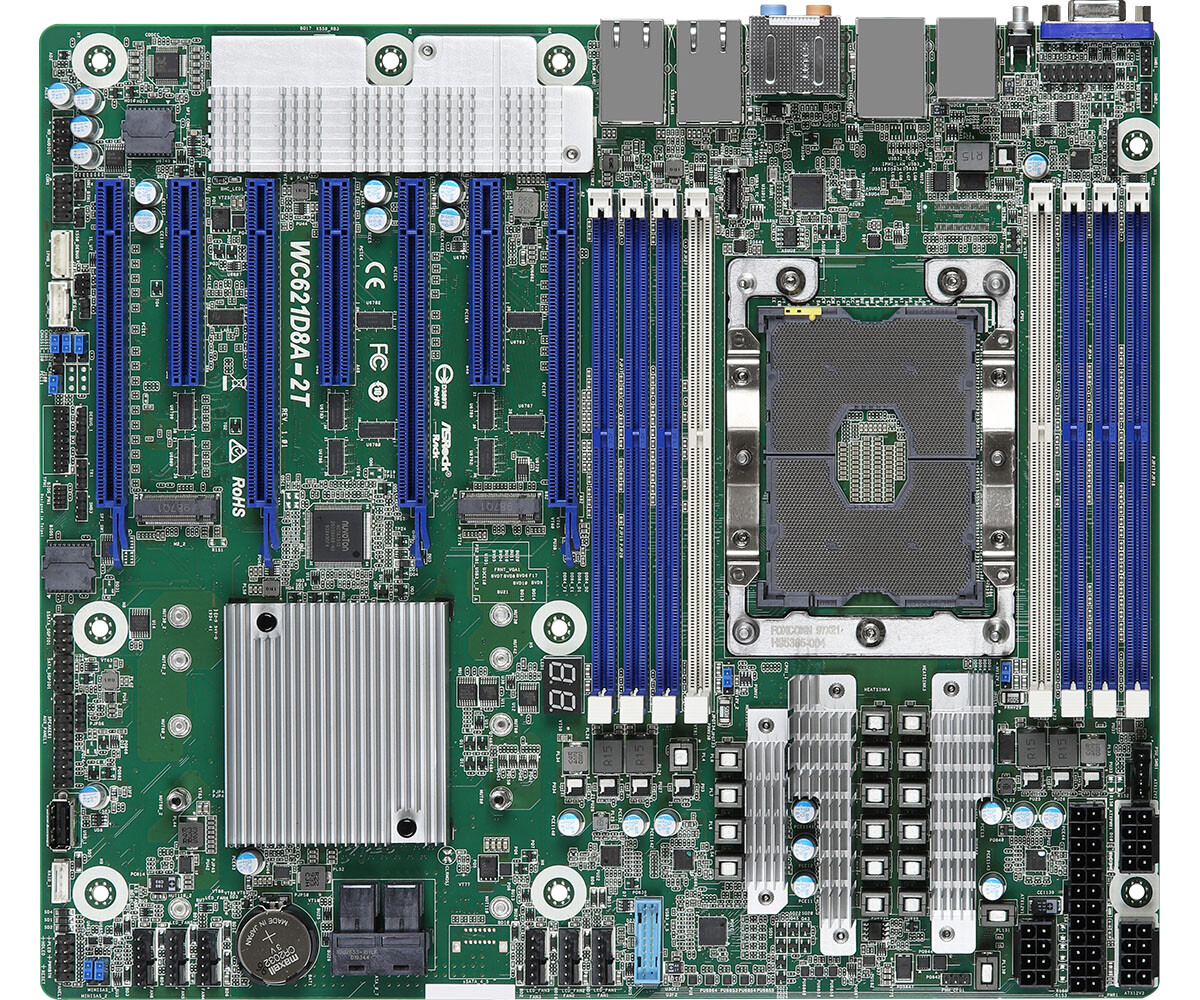

Physical informationversionCEBsize12'' x 10.5'' (30.5 cm x 26.7 cm)Processor systemCPUSupports Intel®Xeon®Scalable Processors and Intel®Xeon®W-3200 Series ProcessorsslotSingle Socket P (LGA 3647)Power supply designScalable Processors: max. 205W ; W Series Processors: max. 255WChipsetIntel®C621System memorycapacity8 DIMM slotstypeSix Channel Memory Technology
DDR4 288-pin RDIMM, LRDIMM, Intel®Optane™ DC Persistent MemoryThe DIMM sizes supported by each DIMMRDIMM: up to 64GB (DRx4)
RDIMM-3DS: up to 4H-256GB (8Rx4)
LRDIMM: up to 128GB (QRx4)
LRDIMM-3DS: up to 4H-256GB (8Rx4)Max. DIMM Frequency2933MT/svoltage1.2VExpansion slotsPCIe x 16SLOT7: PCIe3.0 x16 [CPU], auto-switch to PCIe3.0 x8 when SLOT6 occupied
SLOT5: PCIe3.0 x16 [CPU], auto-switch to PCIe3.0 x8 when SLOT4 occupied
SLOT3: PCIe3.0 x16 [CPU], auto-switch to PCIe3.0 x8 when SLOT2 occupied
SLOT1: PCIe3.0 x16*
*SLOT1 is only supported for Intel®Xeon®W-3200 ProcessorsPCIe x 8SLOT6: PCIe3.0 x8 [CPU]
SLOT4: PCIe3.0 x8 [CPU]
SLOT2: PCIe3.0 x8 [CPU]storageSATA controllerIntel®C621 (10 SATA 6Gb/s, support RAID 0/1/5/10):
1 Mini-SAS HD 8i, 2 M.2M.21 M-key (PCIe3.0 x4 or SATA 6Gb/s) [PCH]; support 22110/2280/2260/2242/2230 form factor
1 M-key (PCIe3.0 x1 or SATA 6Gb/s) [PCH]; support 22110/2280/2260/2242/2230 form factorEthernetAdditional GbE Controller2 RJ45 (10GbE) by Intel®X550-AT2
Management featuresBMC ControllerASPEED AST2500IPMI Standalone GLANs1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211EdisplaycontrollerASPEED AST2500:
1 DB15 (VGA)audioAudio codecsRealtek ALC892Rear panel I/O interfaceVGA interface1 DB15 (VGA)USB 3.0 interface3 Type-A (USB3.2 Gen1)USB 3.2 interface1 Type-C (USB3.2 Gen2)Network interfaces2 RJ45(10GbE), 1 dedicated IPMIUID Button/UID LED1 UID button w/ LEDaudio5+1 Jackother1 PS/2 KB/MouseBuilt-in interfacesPower connector1 (24-pin, ATX main power), 3 (8-pin, ATX 12V)Serial port connection socket1Auxiliary panel connectors1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBusTPM interface1 (17-pin, LPC)Thermal sensing interface1IPMB interface1VGA interface1Fan connector6 (6-pin)USB 3.2 (Gen1) connector1 (19-pin, 2 USB3.2 Gen1)Type-A USB 2.0 connector1 (Type-A, 1 USB2.0)NMI Header1System Panel1 (9-pin): power switch, reset switch, system power LED, HDD activity LEDloudspeaker1 (4-pin)BMC_SMB Header1SGPIO Header2VROC KEY1Clear CMOS1 (contact pads)On-board LEDStandby PWR LED 5vsb1Port 80 LED1Fan Fail LED6BMC heartbeat LED1System BIOSBIOS typeAMI 256Mb SPI Flash ROMBIOS featuresPlug and Play (PnP), ACPI 6.2 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant FlashHardware monitoringtemperatureCPU, System Temperature SensingfanFan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Controlvoltage+12V, +5V, +3.3V, CPU Vcore, DRAM, PCH, +BAT, 3VSB, 5VSBThe operating system is supportedoperating systemMicrosoft®Windows®(Server OS):
Server 2012 R2 (64 bit)
Server 2016 (64 bit)
Server 2019 (64 bit)
Windows®10 (64 bit)
Linux:
Red Hat Enterprise Linux Server 6.9 ( 64 bit) / 7.6 ( 64 bit)
CentOS 6.9 ( 64 bit) / 7.6 ( 64 bit)
SUSE Enterprise Linux Server 12 SP4 ( 64 bit) / 15 SP1 ( 64 bit)
FreeBSD 11.3 ( 64 bit)
Ubuntu 16.04 (64 bit) / 18.04 ( 64 bit)
Virtual:
VMWare®ESXi 6.5 u1/ vSphere 6.5 u1
Citrix XenServer 7.5
Win hyper-V Server 2016
*Please refer to our website for the latest OS support list.
*The SUSE Enterprise Linux Server 12 SP4 ( 64 bit) / 15 SP1 ( 64 bit) system only supports UEFI BOOT.
*On the Ubuntu 16.04 (64bit) / 18.04 (64 bit), the Intel®Raid mode only supports UEFI BOOT.
*Cascade lake CPU supports Red Hat 7.6 / CentOS We accept all kinds payment.
