buyer, thank you for viewing our page. We will provide youbest service and high quality products. Every Item will be inspectbefore ship it out, we ensure it qualified in orders, and everyonewill be packaged carefully. You must be happy to do business withus.
we specialize in computer accessories and so on. it is original parts please buy with confidence.Description
2x sata cable(free gift).
1 xI/O back panel.

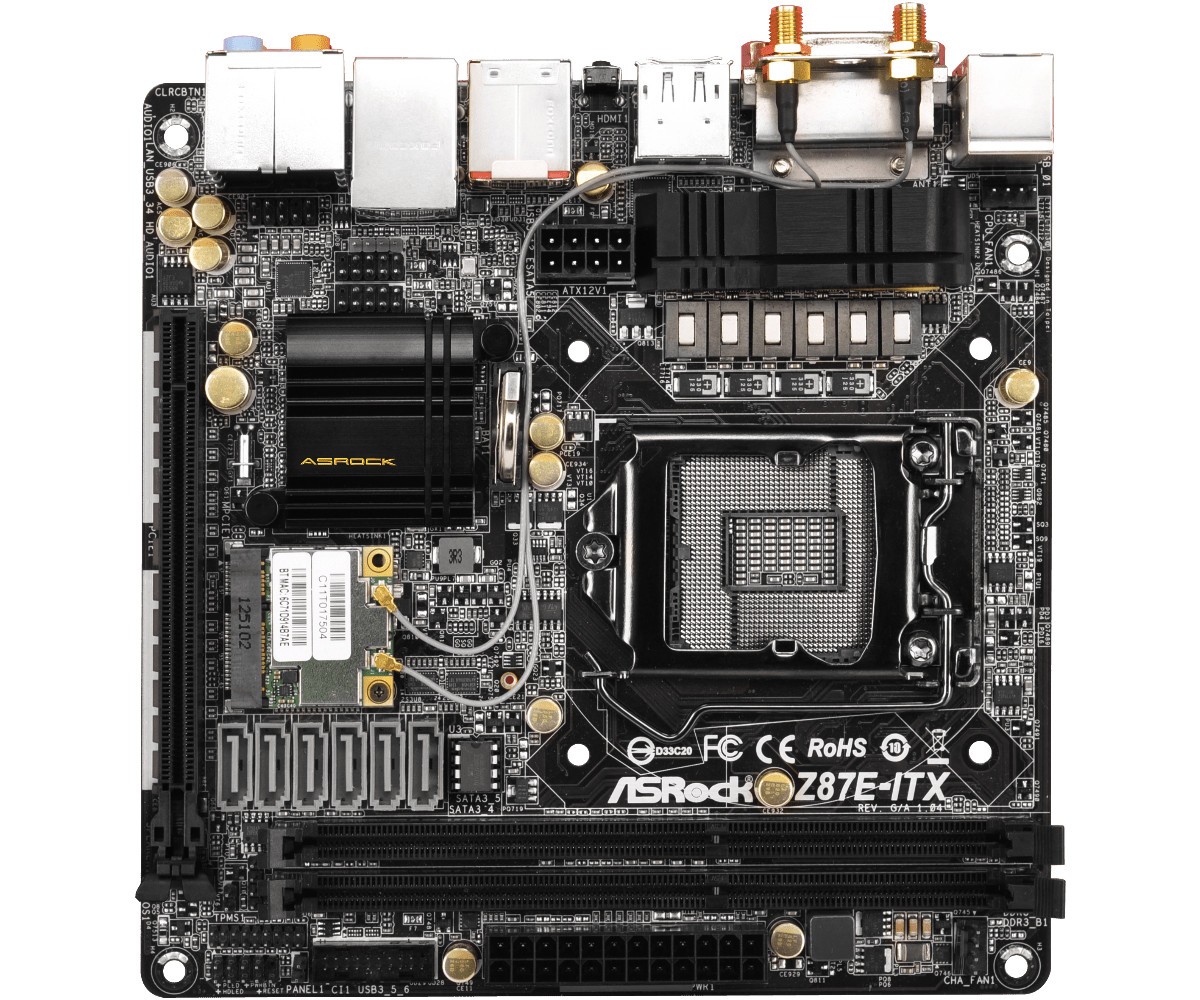

The above pictures are for reference only.
itemintroduction
CPU
- Supports New 4th Generation and 4th Generation Intel® Xeon®/Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- Digitally powered
- DrMOS
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Intel® K-series unlocked multiplier processors
- Support ASRock BCLK full range overclocking
Chipset
-Intel® Z87
RAM
- Dual channel DDR3/DDR3L memory technology
- 2 x DDR3/DDR3L memory slots
- Support DDR3/DDR3L (non-ECC), un-buffered memory
- Maximum system memory capacity: 16GB*
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2 technology
*Due to operating system limitations, the actual memory that can be used under Windows® 32-bit operating system will be less than 4GB. Using a 64-bit CPU under Windows® 64-bit operating system does not have this limitation.
BIOS
- Multilingual 64Mb AMI UEFI Legal BIOS with GUI support
- Compliant with ACPI 1.1, supports Wake Up Events
- Support SMBIOS 2.3.1
- CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multifunction Regulator
Onboard graphics card
- Supports Intel® HD Graphics built-in visual technologies: Intel® High Speed Sync Video Technology (AVC, MVC (S3D) and MPEG-2 Full HW Encode1), Intel® InTru™ 3D, Intel® Clear Video Technology, Intel® Insider™, Intel ® HD Graphics 4400/4600
- Pixel Shader 5.0, DirectX 11.1
- Maximum shared display memory 512MB*
- Three display output options: DVI-I, HDMI and DisplayPort
- Supports simultaneous output of three monitors
- Supports HDMI technology, up to 4K x 2K (4096x2304) @ 24Hz
- Support DVI-I, maximum resolution up to 1920x1200 @ 60Hz
- Supports DisplayPort, up to 4K x 2K (4096x2304) @ 24Hz
- Supports HDMI port auto-sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) (Requires HDMI Compatible Display)
- Supports HDCP function via DVI-I, HDMI and DisplayPort ports
- Supports 1080p Blu-ray Disc (BD) HD playback via DVI-I, HDMI and DisplayPort
*The size of shared display memory depends on the operating system.
**Only processors with built-in GPU can support Intel® HD Graphics built-in visual technology and display output.
***Due to chipset limitations, Blu-ray playback with Intel® HD Graphics only supports Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.
****Intel® InTru™ 3D only supports Windows® 8 / 8 64-bit / 7 / 7 64-bit.
Sound effect
- 7.1 channel high definition audio with content protection function (Realtek ALC1150 audio codec)
- Support high quality Blu-ray sound
- TI® NE5532 Premium Headphone Amp (supports headphones up to 600 ohms)
- Support DTS connection
local area network
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I217V
- Supports Intel® Remote Wake Technology
- Support Wake-On-LAN function
- Supports Energy Efficient Ethernet 802.3az
- Support PXE
Wireless network card
- Support IEEE 802.11a/b/g/n/ac
- Supports Dual Band (2.4/5 GHz)
- Supports high-speed wireless connection up to 867Mbps
- Dual antenna supports 2 (transmit) x 2 (receive) diversity technology
- Supports Bluetooth 4.0 / 3.0 + high speed class II
Expansion slot
- 1 x PCI Express 3.0 x16 slot
- 1 x half mini-PCI Express expansion slot: for WiFi + BT module
- 1 x mSATA/full mini-PCI Express expansion slot
Storage
- 6 x SATA3 6.0 Gb/s ports, supports RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 12 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug (SATA3_5 port with eSATA ports share resources; SATA3_4 ports share resources with mSATA/mini-PCIe ports)
- 1 x eSATA port, support NCQ, AHCI and hot plug
- 1 x mSATA 6.0 Gb/s port (SSD port), supports NCQ, AHCI and full size mini-PCIe modules
Onboard interface
- 1 x Chassis open warning function header
- 1 x TPM header
- 1 x CPU Fan Connector ((4-pin))
- 1 x Chassis Fan Connector ((4-pin))
- 1 x 24-pin ATX power connector
- 1 x 8-pin 12V Power Connector (High Density Power Connector)
- 1 x front panel audio jack
- 2 x USB 2.0 pin headers (supports 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)
I/O port on the rear panel
I/O panel
- 1 x PS/2 keyboard/mouse port
- 1 x DVI-I port
- 1 x HDMI port
- 1 x DisplayPort
- 1 x Optical SPDIF digital audio output port
- 1 x eSATA port
- 2 x USB 2.0 ports
- 4 x USB 3.1 Gen1 ports
- 1 x RJ-45 network interface with indicator lights (action/connection indicator and speed indicator)
- 1 x CMOS data clear switch
- HD Audio Jacks: Rear / Center / Bass / Line In / Front / Mic
Form Factor
- Mini-ITX Specifications
Operating system
- Supports Microsoft® Windows 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
responseWE're doing our best to ensure items quality and our service.
So if you have any problem,please do feel free to contact with usbefore leaving response.
we'll try us best to slove your problem,and improve our service.( *^_^*)
Payment
We accept PayPal payment ONLY.
Shipping
Retums
1. Customer should make initial contact in7 days from receiving the order. Products must be returned in originalcondition.
2. Please contact us before returning itemsand we will provide the shipping address. DO NOT send without communication.
3. Both shipping cost: The cost of itemshipping back is buyer's responsibility, the resend shipping cost is seller's.
4. Please do not returnany items without an authorization number or other instructions byus. Any packages that are send without our knowledge will be refusedand no replacements will be issued. Wrong item ordered or nondefective part returns require a 20% restocking fee. All products aremarked with serial number and QC badge.Any products returned withoutour serial number and QC badge will be rejected as not our parts..
