Specifications:

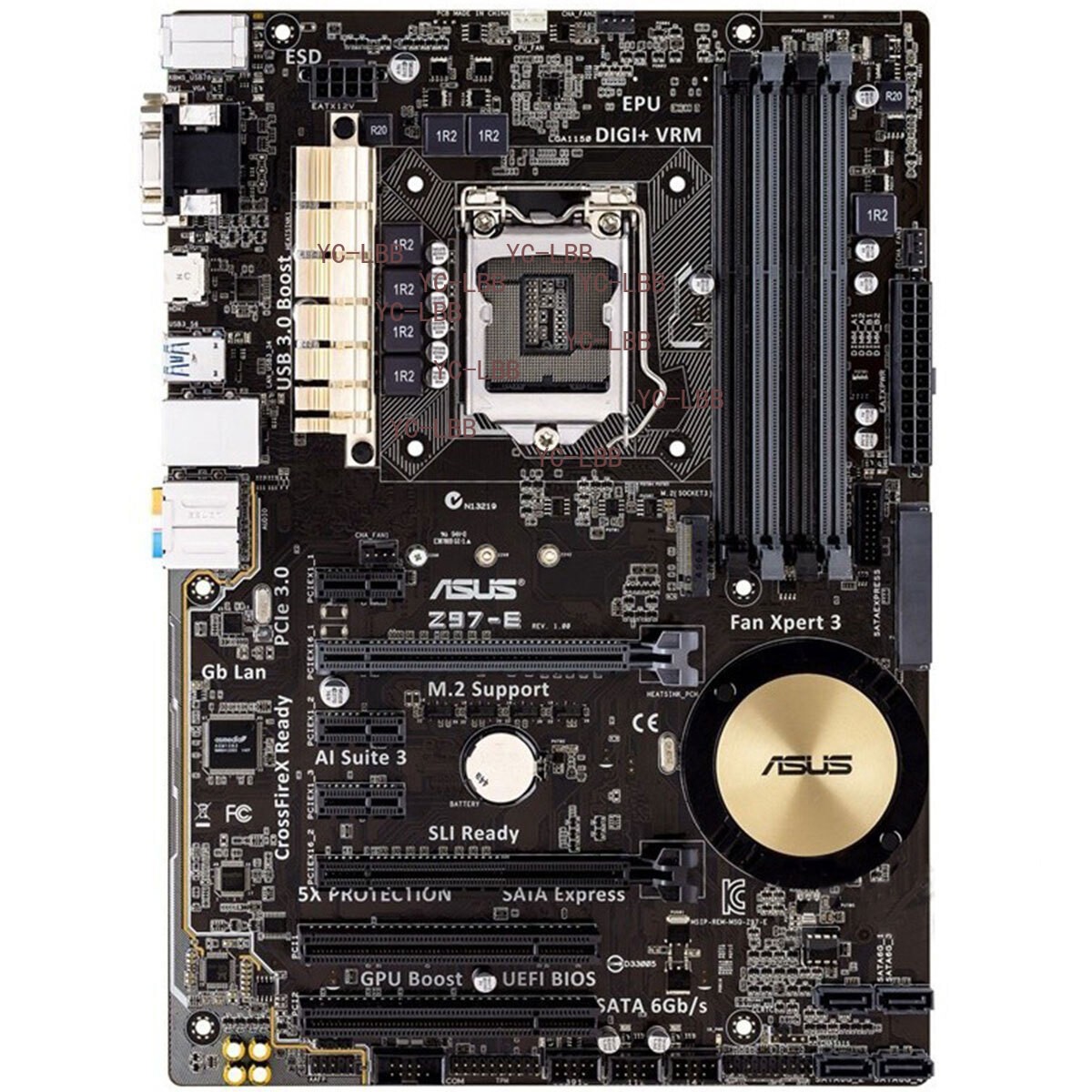

Brand: ASUS Z97-E
Chipset Type: Intel Z97 Chipset
CPU Socket: LGA 1150
RAM Memory Technology: DDR3
Memory Storage Capacity: 32 GB
Memory Clock Speed: 1600 MHz
Compatible Devices: Personal Computer
Platform: Windows 8.1, 8, 7
Compatible Processors: Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium / Xeon (LGA1150) Processors
BIOS: 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information;
Management Function: WfM 2.0, DMI 2.7, WOL by PME, PXE
Size: 30.5cmx21.8cm
Form Factor: ATX
Weight: about 1350g
Processors:
CPU: Intel Socket 1150 for the 5th/New 4th/4th Generation Core i7/Core i5/Core i3/Pentium/Celeron
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU type.
Chipset: Intel Z97
Memory:
4 x DDR3 DIMM, Max. 32GB,
DDR3 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Graphic:
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support: HDMI/DVI-D
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
The maximum shared memory of 512 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously
Multi-GPU Support:
Support NVIDIA Quad-GPU SLI dual card quad-core fire technology
Supports AMD Quad GPU CrossFireX dual card quad-core firing technology
Expansion Slots:
2x PCI Express3.0 x16 (Gen 3.x)
3x PCI Express3.0 x1 (Gen 2.x)
2x PCI slots
Storage:
Intel Z97 chipset :
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
4 x SATA 3.0 6Gb/s port(s),
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology
LAN:
Realtek I218V, 1 x Gigabit LAN Controller(s), Fast Ethernet, featuring Turbo LAN
Audio Effects:
Realtek ALC892 8-Channel High Definition Audio CODEC featuring Crystal Sound
- Supports: Jack-detection, Front Panel Jack-retasking
Audio Feature:
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphones and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural, and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
I/O interface:
USB interface: 6 × USB3.0 interface (2 built-in+4 backplane), 8 × USB2.0 interface (6 built-in+2 backplane)
Video interface: 1 × VGA interface, 1 × DVI interface, 1 × HDMI interface
Power interface: one 8-pin, one 24-pin power interface
Other interfaces: 1 × RJ45 network interface, audio interface, 1 × PS/2 keyboard and mouse universal interface, 1 × COM interfaceOperating System Support
Windows® 8.1
Windows® 8
Windows® 7Package Included:
1x ASUS Z97-E MotherboardSpecifications:Brand: ASUS Z97-E
Chipset Type: Intel Z97 Chipset
CPU Socket: LGA 1150
RAM Memory Technology: DDR3
Memory Storage Capacity: 32 GB
Memory Clock Speed: 1600 MHz
Compatible Devices: Personal Computer
Platform: Windows 8.1, 8, 7
Compatible Processors: Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium / Xeon (LGA1150) Processors
BIOS: 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information;
Management Function: WfM 2.0, DMI 2.7, WOL by PME, PXE
Size: 30.5cmx21.8cm
Form Factor: ATX
Weight: about 1350gProcessors:
CPU: Intel Socket 1150 for the 5th/New 4th/4th Generation Core i7/Core i5/Core i3/Pentium/Celeron
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU type.
Chipset: Intel Z97Memory:
4 x DDR3 DIMM, Max. 32GB,
DDR3 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.Graphic:
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support: HDMI/DVI-D
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
The maximum shared memory of 512 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneouslyMulti-GPU Support:
Support NVIDIA Quad-GPU SLI dual card quad-core fire technology
Supports AMD Quad GPU CrossFireX dual card quad-core firing technologyExpansion Slots:
2x PCI Express3.0 x16 (Gen 3.x)
3x PCI Express3.0 x1 (Gen 2.x)
2x PCI slotsStorage:
Intel Z97 chipset :
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
4 x SATA 3.0 6Gb/s port(s),
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect TechnologyLAN:
Realtek I218V, 1 x Gigabit LAN Controller(s), Fast Ethernet, featuring Turbo LANAudio Effects:
Realtek ALC892 8-Channel High Definition Audio CODEC featuring Crystal Sound
- Supports: Jack-detection, Front Panel Jack-retasking
Audio Feature:
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphones and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural, and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputsI/O interface:
USB interface: 6 × USB3.0 interface (2 built-in+4 backplane), 8 × USB2.0 interface (6 built-in+2 backplane)
Video interface: 1 × VGA interface, 1 × DVI interface, 1 × HDMI interface
Power interface: one 8-pin, one 24-pin power interface
Other interfaces: 1 × RJ45 network interface, audio interface, 1 × PS/2 keyboard and mouse universal interface, 1 × COM interfaceOperating System Support
Windows® 8.1
Windows® 8
Windows® 7Package Included:
1x ASUS Z97-E Motherboard
