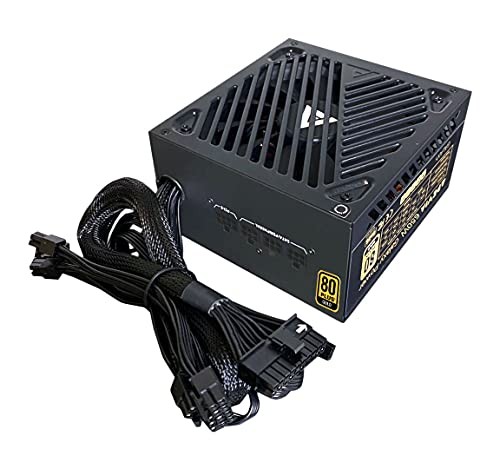

Apevia Galaxy ATX-GX650W 650W Power Supply Apevia Galaxy ATX-GX650W 650W Power Supply
International Customers: All electronic products are packaged for sale in the US with US voltage.
Certifications & Standards: FCC CE
Energy Efficiency Certification: 80 Plus Gold
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Product Description
This item is brand-new, factory sealed.
Apevia's Galaxy line of power supplies bring an elegant form and function to your system while still suiting your needs. Stable and reliable, it supports the newer ATX 12v2.3 standard and single rail setup. Boasting a cool black 135mm LED fan, it adds a nice simple look to any computer. The Galaxy line also uses a hybrid modular cable setup, allowing you to use only the connectors that you need. No excessive tucking of wires required. Just put the unused plugs away for future use. It also uses Active PFC, with a 99% factor correction, boosting performance and saving energy. No toggle switch included, the power supply automatically switches between 110V and 230V depending on the power grid its attached to. 80+ Gold certified.
- 650W Power with 13.5cm black fan
- 80+ Gold certified
- High stability with 5% tolerance of 5V, 3.3V & 12V output
- Hybrid modular cable design
- High quality components and housing
- 20 + 4 pin main connector can be used for 20 pin or 24 pin
- 2 x 4/8 Pin ATX 12V connector
- 4 x 6+2 Pin PCI - Express
- 4 x SATA connector
- 4 x 4 pin peripheral connector
- 1 x floppy connector
- Each cable is removable
- Cables and accessories
- Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)
?IMPORTANT:The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.
?IMPORTANT:The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector.
?IMPORTANT:The 8pin PCI-E GPU connector can be split apart to become a 6+2 connector by pushing one end of the 6pin down and the other end of the 2pin up for graphics cards that require a 6pin power connector.
?IMPORTANT:The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power connector
SpecificationPower DescriptionInput Frequency60HzNumber of +12V Rails1Output Power650 WInput Voltage
Output Voltage Detail
- 3.3 V DC @ 20 A
- 5 V DC @ 20 A
- -12 V DC @ 0.3 A
- 5 V DC @ 2.5 A
- 12 V DC @ 54.1 A
Output Voltage
- 5 V DC
- 3.3 V DC
- 12 V DC
- -12 V DC
- 5 V SB
Physical CharacteristicsForm FactorInternalWeight (Approximate)5 lbProduct ColorBlackHeight3.3"Color Warranty3 YearInterfaces/PortsNumber of (6+2 pin) PCI Express Power Connectors4Number of (4+4 pin) CPU Power Connectors2Number of SATA Power Connectors4PCI Express ConnectorYesGeneral InformationBrand NameApeviaMarketing Information Apevia's Galaxy line of power supplies bring an elegant form and function to your system while still suiting your needs. Stable and reliable, it supports the newer ATX 12v2.3 standard and single rail setup. Boasting a cool black 135mm LED fan, it adds a nice simple look to any computer. The Galaxy line also uses a hybrid modular cable setup, allowing you to use only the connectors that you need. No excessive tucking of wires required. Just put the unused plugs away for future use. It also uses Active PFC, with a 99% factor correction, boosting performance and saving energy. No toggle switch included, the power supply automatically switches between 110V and 230V depending on the power grid its attached to. 80+ Gold certified. 650W Power with 13.5cm black fan 80+ Gold certified High stability with 5% tolerance of 5V, 3.3V & 12V output Hybrid modular cable design High quality components and housing 20 + 4 pin main connector can be used for 20 pin or 24 pin 2 x 4/8 Pin ATX 12V connector 4 x 6+2 Pin PCI - Express 4 x SATA connector 4 x 4 pin peripheral connector 1 x floppy connector Each cable is removable Cables and accessories Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection) ? IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on. ? IMPORTANT: The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector. ? IMPORTANT: The 8pin PCI-E GPU connector can be split apart to become a 6+2 connector by pushing one end of the 6pin down and the other end of the 2pin up for graphics cards that require a 6pin power connector. ? IMPORTANT: The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power connector Product TypePower SupplyProduct NameGalaxy ATX-GX650W 650W Power SupplyManufacturerApevia CorporationManufacturer Part NumberATX-GX650WProduct ModelATX-GX650WProduct LineGalaxyPackaged Quantity10TitleProduct TitleApevia Galaxy ATX-GX650W 650W Power Supply (ATXGX650W)Technical InformationFan Diameter135 mmATI CrossFire SupportedYesSpecification ComplianceATX12V v2.3NVIDIA SLI SupportedYesNumber of Fans1Protection Type
- Short Circuit
- Over Voltage
- Over Power
- Under Voltage
Power Factor Correction (PFC)Active Shipping
