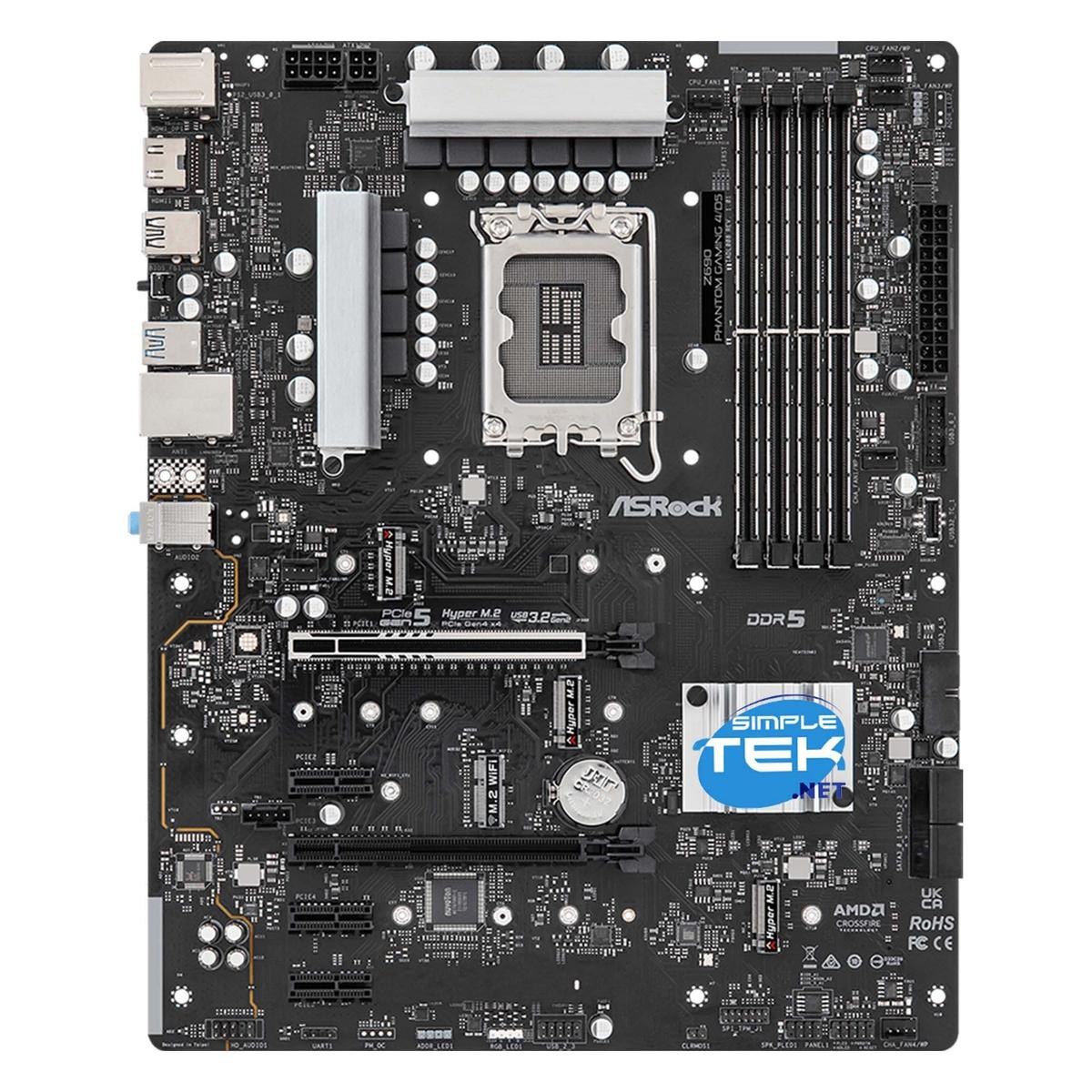

Asrock Z690 Phantom Gaming 4/D5 LGA 1700 12Th 13Th 14Th Atx Ddr5 MotherboardThe description of this item has been automatically translated. If you have any questions, please feel free to contact us.
ASROCK Z690 PHANTOM GAMING 4/D5 LGA 1700 12TH 13TH 14TH ATX DDR5 MOTHERBOARD Condition: New
Warranty: Official from the manufacturer
DescriptionUnique Feature ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - ASRock USB 3.2 Gen2 Type-A ports (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C ports (10 Gb/s) ASRock Super League - High quality power coils - 50A Dr.MOS - Black Sapphire PCB - High density glass circuit ASRock steel slot ASRock Hyper M.2 (PCIe Gen4x4) ASRock Post Status Checker (PSC) ASRock Full Spike Protection (for all USB, audio, LAN ports) ASRock Live Update & APP Shop CPU - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Power phase 9 - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology Chipsets - Intel® Z690 Memory - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM slots - Supports DDR5 non-ECC, unbuffered memory up to 5800+(OC)* - Maximum system memory capacity: 192GB - Intel® XMP (Extreme Memory Profile) 3.0 support *Supports DDR5 4400 (1DPC)/3600 (2DPC) natively. BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 wake up events - Supports SMBIOS 2.7 - CPU Core/Cache, CPU GT, VDD2, DRAM, VCCIN AUX, +1.8V PROC, +1.05V PROC, +0.82V PCH, +1.05V PCH multi-voltage adjustment Graphics Cards - Intel® Xe Graphics Architecture (Gen 12) - Supports HDMI 2.1 TMDS compatible with maximum resolution up to 4K x 2K (4096x2160) @60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port *Integrated Intel® UHD Graphics Visuals and VGA outputs can only be supported with processors with integrated GPU. Audio - 7.1 channel HD Audio (Realtek ALC897 Audio Codec) - Supports surge protection - Nahimic Audio LAN - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports lightning/ESD protection - Supports energy-efficient 802.3az Ethernet - Supports UEFI PXE Expansion slots CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), Supports x16 mode* Chipsets: - 1 x PCIe 4.0 x16 Slot (PCIE3), Supports x4 mode* - 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE4 and PCIE5)* - 1 x M.2 socket (Key E), supports Type 2230 WiFi/BT PCIe WiFi and Intel® CNVi module (Integrated Wi-Fi/BT) - Supports AMD CrossFire™ *NVMe SSDs as boot disks Storage CPU: - 1 x Hyper M.2 socket (M2_1, Key M), Supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipsets: - 1 x Hyper M.2 socket (M2_2, Key M), Supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 socket (M2_3, Key M), Supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 4 x SATA3 6.0 Go/s connectors *Supports Intel® Optane™ Memory H Series (M2_2 or M2_3) Supports Intel® Volume Management Device (VMD) NVMe SSDs as boot disks Supports ASRock U.2 Kit RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe Storage Devices Connector - 1 x SPI TPM header - 1 x Power LED and Speaker Header - 1 x RGB LED header* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Fan and Water Pump Connector (4-pin) (Intelligent Fan Speed Control)**** - 4 x Case/Water Pump Fan Connector (4-pin) (Intelligent Fan Speed Control)***** - 1 x 24-pin ATX power header - 1 x 8-pin ATX 12V connector (High density power connector) - 1 x 4-pin ATX 12V connector (High density power connector) - 1 x audio connector on the front panel - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 1 x USB 2.0 header (supports 2 USB 2.0 ports) (Supports ESD protection) - 2 x USB 3.2 Gen1 Header (Supports 4 USB 3.2 Gen1 Ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD protection) *Supports LED strips up to 12V/3A 36W **supports in total up to 5V/3A, 15W LED Strip ***The fan connector on the CPU supports the CPU fan at maximum power of 1A (12W). ****CPU fan/water pump supports maximum 2A (24W) fan power supply water cooling fan. *****The water pump case/fan supports maximum power 2A (24W) water-cooling fan. CPU_FAN2/WP and CHA_FAN1~4/WP can automatically detect whether 3-pin or 4-pin fan is in use. Rear Panel I/O - 3 x Antenna Mounting Points - 1 x PS/2 port for keyboard/mouse - 1 x HDMI port - 1 x USB 3.2 Gen2 Type-A (10 Gb/s) ports (ReDriver) (Supports ESD protection) - 1 x USB 3.2 Gen2 Type-C (10 Gb/s) ports (ReDriver) (Supports ESD protection) - 4 x USB 3.2 Gen1 ports (Supports ESD protection) - 2 x USB 2.0 ports (Supports ESD protection) - 1 x RJ-45 LAN ports with LEDs (ACT/LINK LED and SPEED LED) - 1 x Flashback BIOS Switch - HD Audio Jack: line input / front speaker / microphone Software and UEFI Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock UEFI Full HD - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Easy RAID Installer *These utilities can be downloaded from the App Shop. Support CD - Drivers, Utilities, Antivirus Software (Trial Version) Accessories - Quick Install Guide, Support CD, I/O Shield - 2 x SATA data cables - 4 x M.2 socket screws Hardware Monitoring - Fan Tachometer: CPU, CPU/Water Pump, Case/Water Pump Fans - Silent Fan (Automatic adjustment of case fan speed based on CPU temperature): CPU, CPU/Water Pump, Case/Water Pump Fans - Multi-speed fan control: CPU, CPU/Water Pump, Case/Water Pump Fans - Voltage monitoring: CPU Vcore, VCCSA, VDD2, +1.05V PROC, +0.82V PCH, ATX+5VSB, VCCIN AUX, PCH, +12V, +5V, +3.3V Form Factor - ATX form factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - Solid capacitor design OS - Microsoft® Windows® 10 64-bit / 11 64-bit Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply required)
Contact us, click here - CPU Core/Cache, CPU GT, VDD2, DRAM, VCCIN AUX, +1.8V PROC, +1.05V PROC, +0.82V PCH, +1.05V PCH multi-voltage adjustment *Integrated Intel® UHD Graphics Visuals and VGA outputs can only be supported with processors with integrated GPU. - 1 x M.2 socket (Key E), supports Type 2230 WiFi/BT PCIe WiFi and Intel® CNVi module (Integrated Wi-Fi/BT) - 1 x Hyper M.2 socket (M2_2, Key M), Supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 socket (M2_3, Key M), Supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* CPU_FAN2/WP and CHA_FAN1~4/WP can automatically detect whether 3-pin or 4-pin fan is in use. - Silent Fan (Automatic adjustment of case fan speed based on CPU temperature): CPU, CPU/Water Pump, Case/Water Pump Fans - Voltage monitoring: CPU Vcore Recommended products Provided by ASROCK H670 PG RIPTIDE LGA 1700 12TH 13TH 14TH ATX DDR4 Gaming Motherboard View product ASROCK A620AM-HVS Micro-ATX AM5 Motherboard DDR5 PCIe 4.0 Ryzen 7000 8000 9000 View product
