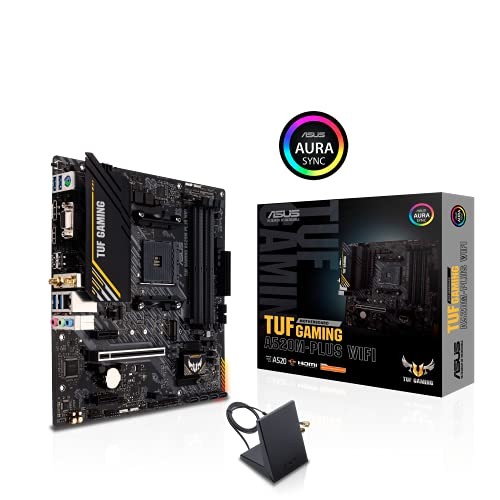

TUF GAMING A520M-PLUS WIFI Gaming Desktop Motherboard - AMD Chipset - Socket AM4 - Micro ATX (tufgaminga520m-pluswif) TUF GAMING A520M-PLUS WIFI Gaming Desktop Motherboard - AMD Chipset - Socket AM4 - Micro ATX (tufgaminga520m-pluswif)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: GAMING A520M-PLUS WIFI Gaming Desktop Motherboard Cables 2 x SATA 6Gb/s Cables 1 x I/O Shield 1 x M.2 SSD Screw Package 1 x ASUS Wi-Fi Moving Antenna 1 x TUF Gaming Sticker 1 x Support DVD 1 x TUF Certification Card 1 x User Manual

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Product Description

This item is brand-new, factory sealed.

AMD A520 (Ryzen AM4) micro ATX gaming motherboard with M.2 support, 802.11ac Wi-Fi, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, and AURA Addressable Gen 2 headers

AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+

Made for online gaming: 802.11ac Wi-Fi, TUF LANGuard and TurboLAN technology

Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware


DURABLE. STABLE. RELIABLE.

TUF Gaming A520M-Plus WIFI distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.


ROCK-SOLID PERFORMANCE

With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF Gaming A520M-Plus WIFI is the perfect foundation for your next high-core-count battle rig.


EASY PC DIY

TUF Gaming motherboards are designed to be easy to set up and configure just the way you want even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. CPU
AMD RyzenTM 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors Chipset
AMD A520 ChipsetMemory
Dual Channel Memory Architecture
- ECC Memory (ECC mode) support varies by CPU.
- Refer to for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. Graphics
1 x DisplayPort 1.2
1 x D-Sub
- Graphics specifications may vary between CPU types. Expansion Slots
1 x PCIe 3.0 x16 (x16 mode)
AMD RyzenTM 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD RyzenTM 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes)
AMD A520 Chipset
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10 Ethernet
1 x Realtek 1Gb Ethernet
TUF LANGuard USB
Rear USB:Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 5 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports Audio
- Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
-A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x D-Sub
1 x ASUS Wi-Fi Module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBackTM button
1 x PS/2 Keyboard/Mouse combo port Intrernal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header Special Features
Y
ASUS TUF PROTECTION
- DIGI+ VRM
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBackTM button
- BIOS FlashBackTM LED
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
- PC Cleaner
- System Information
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode BIOS
128 Mb Flash ROM, UEFI AMI BIOS Manageability
WOL by PME, PXE Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User manual Form Factor
microATX
24.4cm x 24.4cmItem Dimension (L inchxW inchxH inch)
11 x 11 x 3

Weight
3.00 lb

Warranty Information
3 Years SpecificationPhysical CharacteristicsForm FactorMicro Warranty3 YearI/O ExpansionsNumber of PCI Express x1 Slots2Total Number of Expansion Slots3Number of PCI Express x16 Slots1Total Number of PCI Express Slots3MemoryMemory TechnologyDDR4 SDRAMNumber of Memory Slots4Memory Speed Supported

• 4800 MHz
• 4600 MHz
• 4466 MHz
• 4400 MHz
• 4266 MHz
• 4133 MHz
• 4000 MHz
• 3866 MHz
• 3733 MHz
• 3600 MHz
• 3466 MHz
• 3333 MHz
• 3200 MHz
• 3000 MHz
• 2800 MHz
• 2666 MHz
• 2400 MHz
• 2133 MHz

Memory Form Factor

• Ryzen 3
• Ryzen 5
• Ryzen 7
• Ryzen 9
• Ryzen 3 PRO
• Ryzen 5 Pro
• Ryzen 7 PRO
• Ryzen 9 PRO

Total Processor Supported1Processor SocketSocket AM4Chipset ModelA520Onboard InterfacesNumber of SATA Interfaces4Total Number of Onboard USB Ports5Number of Onboard USB 3.2 Ports2Number of M.2 Interfaces1Onboard S/PDIF HeaderYesNumber of Onboard USB 2.0 of USB 2.0 Ports2Total Number of USB Ports6Number of USB 3.2 Gen 1 Ports4Number of Network (RJ-45) Ports1I/O ControllerRAID SupportedYesController TypeSerial ATA/600RAID Levels
