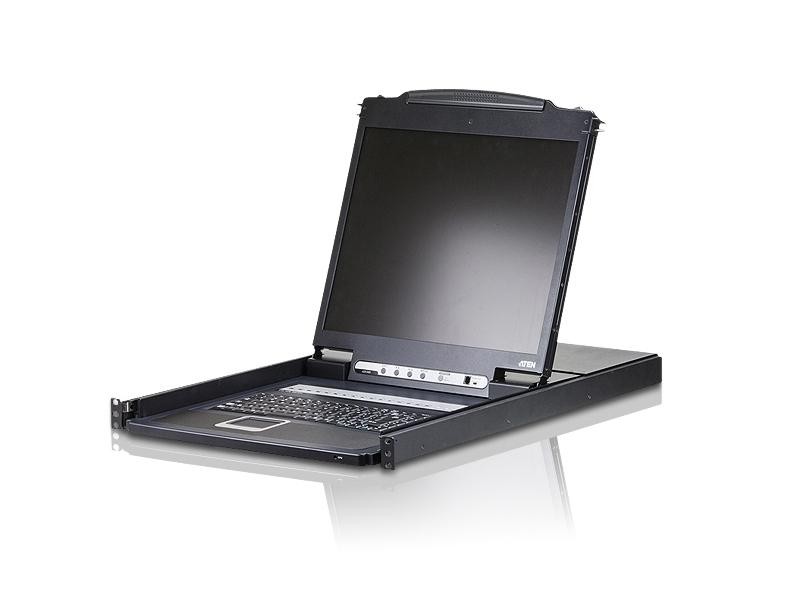

for All Products Aten CL1316N 16-Port 19" LCD Integrated USB/PS2 Combo KVM Switcher Manufacturer:Aten SKU:CL1316N Condition:New Warranty:2 Years
This listing is for CL1316N only. Use description below as a general reference.
With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.
The CL1316 LCD KVM Switch features an integrated 19" LCD panel allowing access and control with up to 16 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1316 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.
Features
- A single console controls up to 256 computers by cascade to 2 levels and connect up to 16 switches.
- Integrated KVM console with 19" LCD panel
- Dual Interface – supports computers with PS/2 or USB keyboards and mice
- Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
- Superior video quality – up to 1280 x 1024 at 75 Hz; DDC2B
- Convenient computer switching via front panel push buttons, hotkeys, or multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profi le for each
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode – operations simultaneously performed on all selected computers
- Hot pluggable – add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Rack mountable
- Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek
Specifications:
Computer Connections Direct 16 Maximum 256 (via Cascade) Port Selection OSD, Hotkeys, Pushbuttons Connectors KVM Ports 16 x SPHD-17 Female (Yellow) FW Upgrade 1 x RJ-11 Female (Black) Power 1 x 3-prong AC Socket (IEC60320/C14) Switches Reset 1 x Semi-recessed Pushbutton Power 1x Rocker FW Upgrade 1 x Slide LCD Control 4 x Pushbutton LCD On/Off 1 x Pushbutton Port 16 x Pushbutton LEDs Online 16 (Orange) Selected 16 (Green) Power KVM 1 (Dark Green) LCD 1 (Orange) Lock Num 1 (Green) Caps 1 (Green) Scroll 1 (Green) Emulation Keyboard / Mouse PS/2, USB Video 19-Inch LCD 1280×1024 at 75 Hz; DDC2B Scan Interval 1-255 seconds I/P Rating 100-240 VAC; 50/60 Hz; 1A Power Consumption 19-Inch LCD 120V, 22 W / 230V, 22.9 W Environment Operating Temp.
0-50°C
Storage Temp. -20-60°C Humidity 0 - 80% RH, Non-condensing Physical Properties Housing Metal + Plastic Weight 12.58 kg Dimensions ( L x W x H ) 68.90 x 48.30 x 4.40 cm
Package Includes:
- 1x CL1316 LCD KVM Switch with Rack Mount Kit
- 2x Custom KVM Cable Cables
- 1x Firmware Upgrade Cable
- 1x Power Cord
- 1x User Instructions
