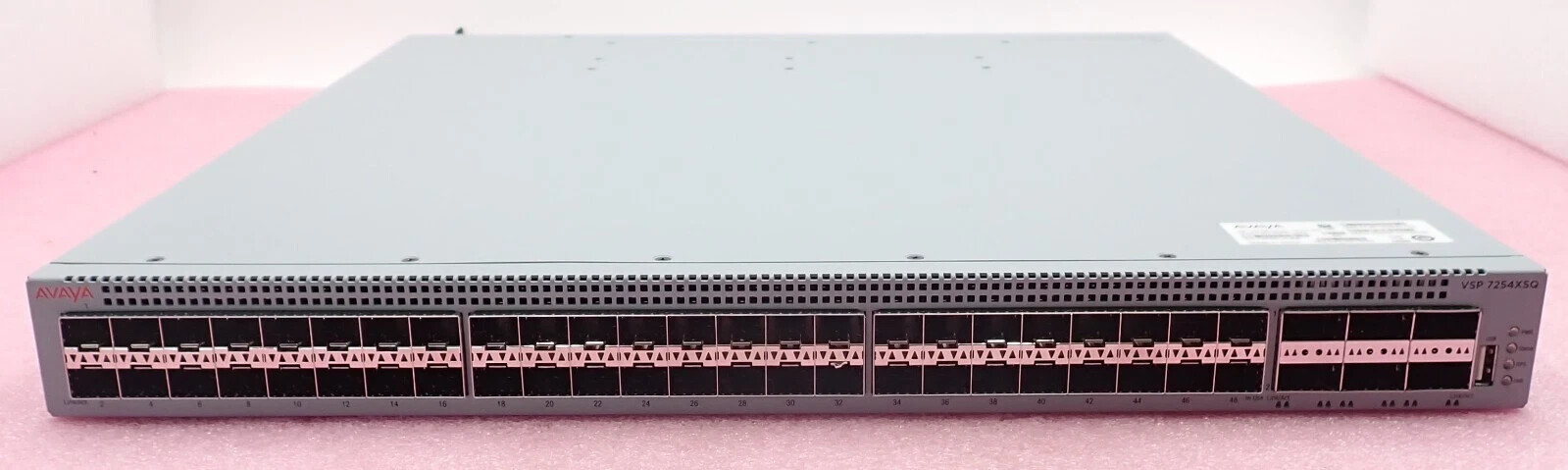

Avaya VSP 7254XSQ 48x 1/10G SFP+ + 6x 40G QSFP+ B2F Premier Switch EC720001X-E6Model:VSP 7254XSQPN:EC720001X-E6
In Good Condition, Full Working OrderTestedRear-to-Front Airflow2 Year Warranty
Includes Premier License
Included:

• 1 xAvaya VSP 7254XSQ 48x 1/10G SFP+ + 6x 40G QSFP+ SwitchEC720001X-E6
• 2 x Arista 460W Power Supply
• 3 x Arista Dual Fan Module

Overview:The Avaya Virtual Services Platform 7200 Series are space-efficient, high performance Ethernet switches, delivering wire-speed 10 and 40 Gigabit Ethernet connectivity.
They are ideally suited to deliver high-speed Ethernet connectivity in a Top-of-Rack (ToR) role. Additionally, they provide a cost-effective 10 Gigabit Ethernet fan-out capability for existing Core Switch deployments, saving valuable ports and slots. Featuring dual, hot-swappable AC or DC power supplies and fans, the VSP 7200 is an important addition to a network manager’s toolkit for creating always-on high-performance Connectivity:

• 48 x 10GBASE-SFP+ Ports
• 6 x 40GBASE-QSFP+ Ports

Channelization of 40 Gigabit ports

Switch Fabric Architecture: 2.56Tbps Full-Duplex

Frame forwarding rate: 1,428Mpps per Switch

Nominal Latency: <480nsec

Jumbo Frame support: up to 9,600 Bytes (802.1Q Tagged)

Layer 2

• MAC Address: 224,000
• Port-based VLANs: 4,059
• Private VLANs/E-Tree: up to 200
• MSTP Instances: 12
• MLT/LACP Groups: up to 72
• MLT Links per Group: 8
• LACP Links per Group: 8 Active
• AvayaVLACP Interfaces: 54, and up to 72 when all 40 Gigabit ports are Channelized
• Avaya SLPP VLANs: 128

Layer 3 IPv4 Routing Services

• ARP Entries: 32,000
• Static ARP Entries: 2000 per VRF, 10,000 per switch
• IP Interfaces: up to 506
• CLIP Interfaces: 64
• IP Routes: up to 15,488
• IP Static Routes: 1,000 per VRF, 5000 per switch
• RIP Interfaces: 200
• RIP Routes: up to 15,488
• OSPF Interfaces: 500
• OSPF Routes: up to 15,488
• OSPF Areas: 12 per VRF, 80 per switch
• BGP Peers: 12
• BGP Routes: up to 15,488
• ECMP Groups: 1,000
• ECMP Paths per Group: 8
• NLB Clusters: 200
• VRRP Interfaces: 252
• RSMLT Interfaces: 252
• IPv4 UDP Forwarding Entries: 512
• IPv4 DHCP Relay Forwarding Entries: 1024
• IP Route Policies: 500 per VRF, 5,000 per switch
• DHCP Relay Forwarding: 512
• VRF Instances: up to 256

Layer 3 IPv6 Routing Services

• Neighbors: 8,000
• Static Neighbors: 128 per VRF, 256 per switch
• IP Interfaces: up to 506
• CLIP Interfaces: 64
• IP Configured Tunnels: 506
• IP Routes: up to 7,744
• IP Static Routes: 1,000
• RIPng Interfaces: 48
• RIPng Routes: up to 7,744
• OSPFv3 Interfaces: 500
• OSPFv3 Routes: up to 7,744
• OSPFv3 Areas: 80 per switch
• BGPv6 Peers: 24
• ECMP Groups: 1,000
• ECMP Paths per Group: 8
• VRRP Interfaces: up to 252
• RSMLT Interfaces: up to 252
• VRF Instances: up to 256

Multicast

• IGMP Interfaces: 4,059
• PIM Active Interfaces: 128
• MLD Interfaces: 4,059
• Static Multicast Routes: 4,000
• BCB IP Multicast S,G Streams: 16,000
• PIM-SSM Static Channels: 4,000
• IP Multicast Streams: 6,000
• IP Multicast Streams (Fabric Connect-PIM Gateway Nodes): 3,000
• Fabric Connect-PIM Gateway Controllers per Region: 5
• Fabric Connect-PIM Gateway Nodes per Region: 64
• Fabric Connect-PIM Gateway Interfaces per BEB Node: 64
• Fabric Connect-PIM Gateway Source
• Announcements: 6,000

Fabric Connect

• 802.1aq/RFC 6329 Shortest Path Bridging with Avaya extensions
• MAC Address: 112,000
• NNI Interfaces/Adjacencies: up to 255
• BEB Nodes per VSN: 500
• Transparent UNI Ports/Switch: 54, and up to 72 when all 40 Gigabit ports are Channelized
• BCB/BEB Nodes per Region: 800
• L2 Virtual Service Networks: 4,059
• L3 Virtual Service Networks: up to 256
• IP Shortcut Routes: IPv4 15,488, and IPv6 7,488
• DvR Domains per Region: 16
• DvR-enabled L2 VSNs: up to 502
• DvR Controllers per Domain: 8
• DvR Leafs per Domain: 250
• DvR Interfaces: up to 502
• DvR Routes: up to 32,000
• L2 Multicast Virtual Service Networks: up to 2,000
• L3 Multicast Virtual Service Networks: 256
• VXLAN Gateway VTEP Destinations per Node: 500
• VXLAN Gateway VNI IDs per Node: 2,000
• Fabric Attach VLAN/VSN Assignments per Port: 94

QoS and Filtering

• IPv4 ACE: 766 Ingress and 252 Egress
• IPv6 ACE: 256 Ingress
• L2-L4 Ingress Port Rate Limiters: 54, and up to 72 when all 40 Gigabit ports are Channelized
• Egress Port Shaper Granularity: 1Mbps to 40Gbps per Port

Operations and Management

• Mirrored Ports: 53, and up to 71 when all 40 Gigabit ports are Channelized
• sFlow: up to 3,000 samples per second
• Fabric RSPAN: up to 1,000 VSN IDs per Region

Boot Log:

cpd-vsp7k2:1#show license License file License Type:PREMIER
MD5 of Key:00000000 00000000 00000000 00000000
MD5 of File:00000000 00000000 00000000 00000000
Generation Time:/13/10 EDT 2017
Expiration Time:
Base Mac Addr:60:49:c1:cd:04:00
flags:0x00000001 SINGLE
requiring a Premier license:
-Layer 3 VSNs
-MACsec
-Fabric Extendcpd-vsp7k2:1#show sys-infoGeneral Info : SysDescr: VSP-7254XSQ (5.0.1.0)
SysName: cpd-vsp7k2
SysUpTime: 0 day(s), 00:03:15
SysContact:
SysLocation: 211 Mt. Airy Road,Basking Ridge,NJ 07920Chassis Info: Chassis: 7254XSQ
Serial#: 17JP1020W10L
H/W Revision: 03
H/W Config:
NumSlots: 2
NumPorts: 73
BaseMacAddr: 60:49:c1:cd:04:00
MacAddrCapacity: 1024
MgmtMacAddr: 60:49:c1:cd:04:81
System MTU: 9600Card Info :
StatusStatusState
Info : CPU TemperatureMAC TemperatureMAC2 Temperature
263231
Power Supply Info : Ps#1 Status: up
Ps#1 Type: AC
Ps#1 Description: DPS-460KB N
Ps#1 Serial Number: HGSD1646002000
Ps#1 Version: 002
Ps#1 Part Number: 700510268 Ps#2 Status: up
Ps#2 Type: AC
Ps#2 Description: DPS-460KB N
Ps#2 Serial Number: HGSD1709000556
Ps#2 Version: 000
Ps#2 Part Number: 700510268 Total Power Available : 920 wattsFan Info : Fan#1 Status: up
Fan#1 Type: regularSpeed Fan#1 FlowType: back-front Fan#2 Status: up
Fan#2 Type: regularSpeed
Fan#2 FlowType: back-front Fan#3 Status: up
Fan#3 Type: regularSpeed
Fan#3 FlowType: back-front Fan#4 Status: up
Fan#4 Type: regularSpeed
Fan#4 FlowType: back-front Fan#5 Status: up
Fan#5 Type: regularSpeed
Fan#5 FlowType: back-front Fan#6 Status: up
Fan#6 Type: regularSpeed
Fan#6 FlowType: back-frontLED Info :
LED#1 Label: PWR
LED#1 Status : GreenSteady LED#2 Label: Status
LED#2 Status : GreenSteady LED#3 Label: Rps
LED#3 Status : GreenSteady LED#4 Label: Fan
LED#4 Status : GreenSteadySystem Error Info : Send Login Success Trap: false
Send Authentication Trap: false
Error Code: 0
Error Severity: 0Port Lock Info : Status: off LockedPorts:Message Control Info : Action: suppress-msg
Control-Interval: 5
Max-msg-num: 5
Status: disable
Configuration Operation Info Since Boot Up:
Last Change: 0 day(s), 00:01:00
Last Vlan Change: 0 day(s), 00:01:00
Last Statistic Reset: 0 day(s), 00:00:00Current Uboot Info 2012.04-00004-g90aa8b1 (Nov 10 2014 - 15:16:02)
