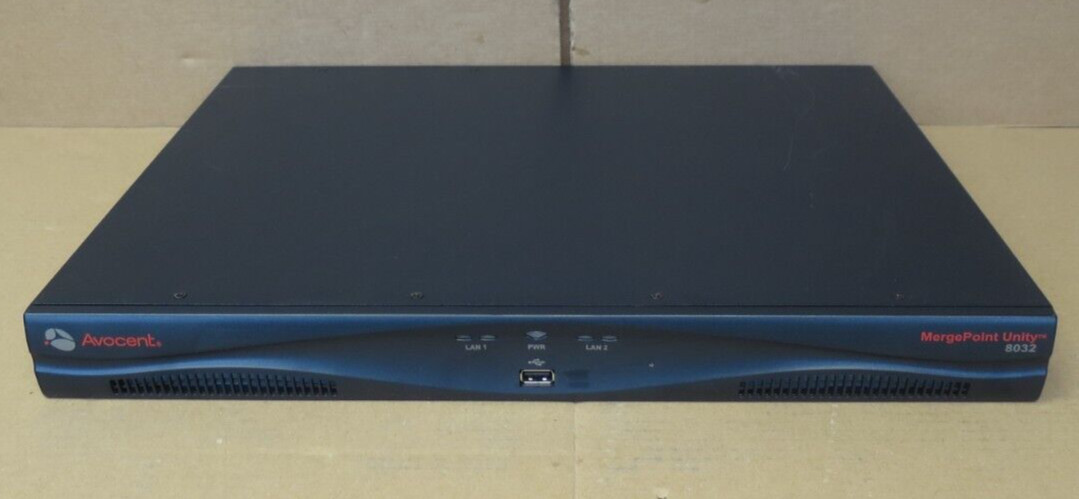

Avocent MergePoint Unity 8032 - Digital KVM 32 Port Over IP Rackmount Switch
Model: MPU8032
In Good ConditionFull Working Order

Includes:

• Avocent MergePoint Unity 8032 - Digital KVM 32 Port Over IP Rackmount Switch

Avocent MergePoint MPU8032-001 Features:

• Complete, full-featured remote server management from a single user interface.
• Remote KVM and serial console access are both included in the design of the MergePoint Unity switches.
• The MergePoint Unity switches can operate out of the box or can be managed by the DSView 3 software to allow a single method to manage and access all the MergePoint Unity switches that exist.
• Supports LDAP when used alone or can be managed with the DSView 3 management software to add more authentication and reporting options.
• The MergePoint Unity switch has virtual media capabilities to map USB storage devices and Smart Card/ Common Access Card (CAC) readers.
• All MergePoint Unity switches come with virtual media capabilities.
• The MergePoint unity switches offer dual 10/100/1000 ethernet ports on all models and options for models with dual power supplies.
• Dedicated power control ports to connect and control Avocent rack PDUs (sold separately) for integrated power control and measurement.

Avocent MergePoint MPU8032 Specifications:MechanicalHeight: 1.72 in. (4.4 cm.)Width: 17.0 in. (43.2 cm.)Depth: 14 in. (34 cm.)Weight (without cables): 8.6 lbs. (3.9 kg.)Form Factor: 1-U rack mountable
Power Specifications Number: MPU8032DAC: 2 power suppliesType: InternalPower: MPU8032DAC/8032: 24WHeat Dissipation: MPU8032DAC/8032: 82 BTU/hrAC Input Range: 100-240 VACAC Frequency: 50-60Hz autosensingAC Input Current Rating: 1.25 AAC Input Power (max): 40W
Server PortsNumber: 32 port models- MPU8032DAC/8032Modules supported: PS/2, Sun, USB and Serial modules sold separatelyConnectors: 8-pin modularSync Types: Separate horizontal and verticalInput Video Resolution: 640 x 480 @ 60 Hz; 800 x 600 @ 75 Hz; 960 x 700 @ 75 Hz; 1024 x 768 @ 75 Hz; 1280 x 1024 @ 75 HzSupported Cabling: 4-pair UTP CAT 5 or CAT 6, 45 meters maximum length
Network Connection Number: 2Type: 10/100/1000 Ethernet
Local Port Number: 1Type: USB and VGA
USB Device Port Number:5Type: USB 2.0
Modem PortNumber: 1Type: RS-232 serialConnectors: 8-pin modular
PDU Port- used to manage supported PDUs through a direct serial port connectionNumber: 2Type: RS-232 serialConnector: 8-pin modular
Ambient Atmospheric Condition RatingsTemperature: Operating;32 to 122 degrees Fahrenheit (0 to 50 degrees Celsius) Non-operating: -4 to 158 degrees Fahrenheit (-20 to 70 degrees Celsius)
Humidity: Operating:20% to 80 % relative humidity (non-condensing) Non-operating: 5% to 95% relative humidity, 38.7 degrees C maximum wet bulb temperature
