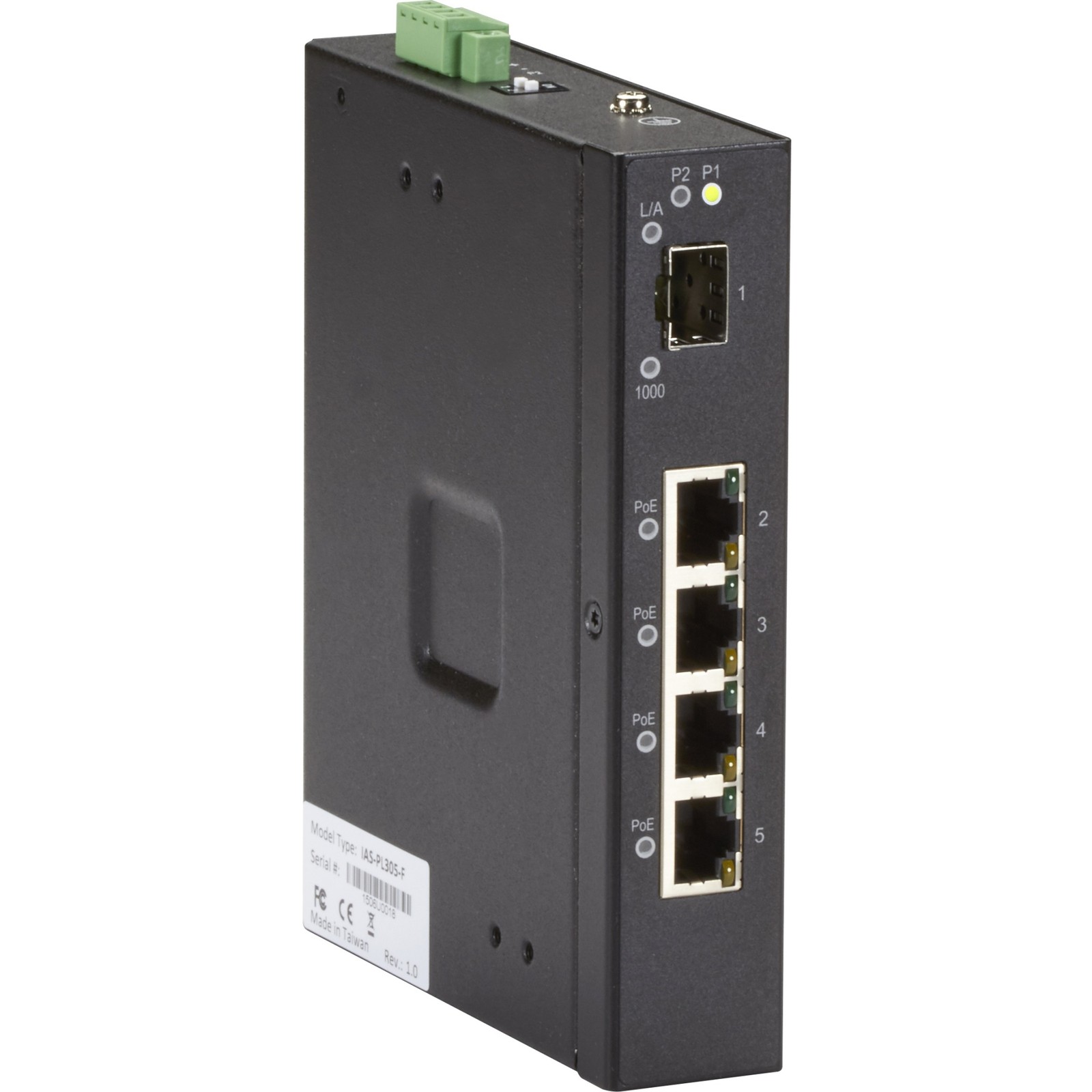

Black Box 5-Port Industrial Gigabit Ethernet Switch PoE+ Extreme Temperature (LIE401A) Black Box 5-Port Industrial Gigabit Ethernet Switch PoE+ Extreme Temperature (LIE401A)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: Industrial Unmanaged Gigabit Ethernet Switch 2 x Wallmount Plates 1 x DIN Rail CLIP 1 x DC Power Terminal Block 4 x RJ-45 PORT Dust Covers 1 x SFP Port Dust Cover
Environmentally Friendly: Yes
Application/Usage: Industrial
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
- Switch delivers features normally found in more expensive switches.
- PoE+ 802.3af and at compliant. Provides up to 30 W per port.
- Use in harsh applications, including factories, oil/gas fields, military vehicles/ships, HVAC controls, security and surveillance, and more.
- Rated for extreme temperatures of -40 to +75° C.
- 10-/100-/1000-Mbps ports are autosensing for speed and duplex.
- Dual DC power inputs for redundancy.
- IP30-rated, fanless housing.
- Plug-and-play setup.
- Built-in smart alarm warns of power or port failures.
- LEDs indicate power, alarm, speed, and link/activity.
- DIN rail or wall mount.
Reliable and scalable.
The very reliable LIG401A Industrial Ethernet Switch, (4) 10/100/1000-Mbps, (1) GE SFP, is designed for the far edges of your network. Use it in harsh, indoor environments with temperature extremes of -40° to +75°C, such as loading docks or monitoring stations. This rugged switch comes in an IP31-rated enclosure that can be DIN-rail or wall mounted.
The Gigabit Ethernet SFP port gives you networking flexibility and scalability. You can extend your network over multimode or single-mode fiber at distances up to 80 kilometers, depending on the SFP you choose. Black Box SFPs are recommended.
For redundancy, the switch has two DC power inputs. If one power source fails, the switch automatically falls over to the second power source. In addition, an alarm will alert you in case of a power failure.
PoE+ PSE.
The switch is ideal for powering PDs such as security cameras, wireless access points, building access devices, and automation equipment in harsh environments. It's particularly useful for powering devices in hard-to-reach locations with limited access to AC power outlets, such a ceilings, closets, loading docks, factory floors, and more.
A multitude of applications.
This switch can be used in a wide variety of applications, such as: >
- Security and surveillance, particularly to backhaul IP security camera data.
- Military applications, especially in ships and other vehicles.
- Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment.
- Oil and gas fields or remote equipment monitoring and control.
- Building automation for controlling HVAC and lighting systems.
SpecificationManagement & ProtocolsManageableNoPower DescriptionPower SourceDCInput Voltage
PoE (RJ-45) PortYesPhysical CharacteristicsForm Factor
Weight (Approximate)1 Warranty1 YearInterfaces/PortsNetwork (RJ-45)YesPort/Expansion Slot Details
- 4 x RJ-45 Gigabit Ethernet PoE+
- 1 x Gigabit Ethernet Expansion Slot SFP
Total Number of Network Ports4I/O ExpansionsTotal Number of Expansion Slots1.0Number of SFP Slots1Expansion Slot TypeSFPGeneral InformationBrand NameBlack BoxMarketing Information OVERVIEW INDUSTRIAL MANAGED AND UNMANAGED GIGABIT ETHERNET SWITCHES DATA SHEET INTRODUCTION The Industrial Managed and Unmanaged Gigabit Ethernet Switches include unmanaged switches that provide four (4) copper RJ-45 or RJ-45 PoE ports and one (1) multi-rate SFP slot and managed switches that provide six (6) or eight (8) copper RJ-45 or RJ-45 PoE ports and two (2) or four (4) multi-rate SFP slots. Power over Ethernet The LIE401A, LIE1014A, LIE1080A and LIE1082A switches support Power over Ethernet compliant to the IEEE 802.3af and IEEE 802.3at standard on all copper ports. These switches can be used to power standard PoE PD devices with up to 30 watts per port along with the Ethernet data on standard Ethernet Cabling. Multi-rate SFP slots The benefit of having multi-rate SFP slots is to be able to use 100-Mbps and 1-Gbps SFP Modules for either multi- or single-mode in a mix and match as needed. If requirements change, just replace the SFP module and protect your switch investment. Power The switches are powered from 12- to 58-VDC. The PoE models need 48 VDC for 802.3af and a minimum of 53 VDC for 802.3at. Extended temperature range All models are tested and released for operating temperatures from -40° up to +75° Celsius. Management The switches offer powerful features including Layer 2 routing and management with all advanced filter and multicast algorithms needed today to easily prioritize, partition, and organize a reliable high-speed network. Product TypeEthernet SwitchProduct NameIndustrial Unmanaged Gigabit Ethernet SwitchManufacturerBlack Box CorporationManufacturer Part NumberLIE401AMedia & PerformanceEthernet TechnologyGigabit EthernetMedia Type Supported
- Twisted Pair
- Optical Fiber
Network Technology
