Brocade ServerIron ADX 1000 App Delivery Load Balancer SI-1008-1 With License For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

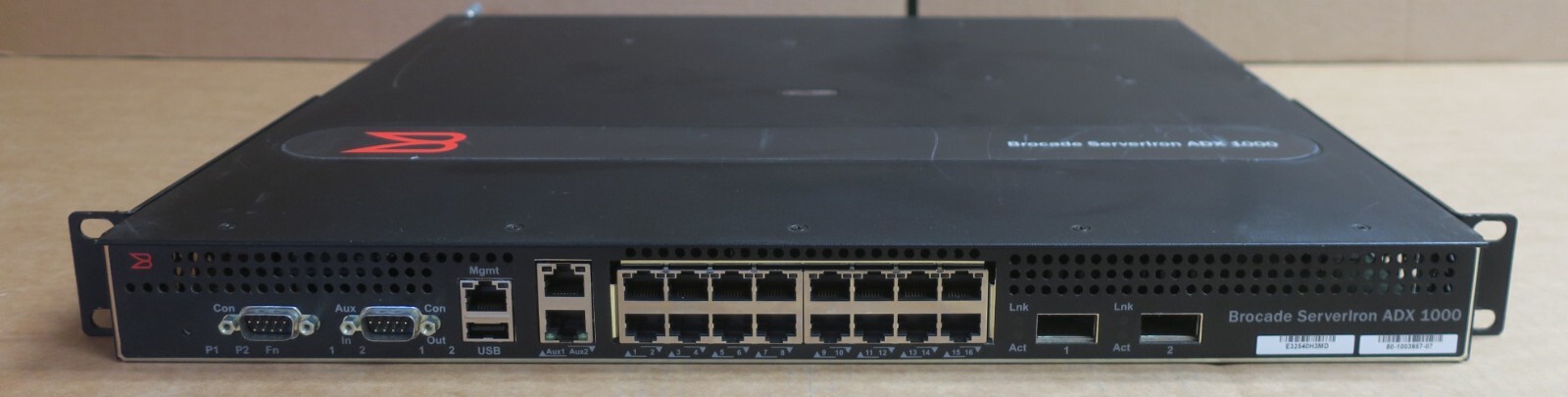

Brocade ServerIron ADX 1000 App Delivery Load Balancer SI-1008-1 With License

Price: GB $482.54

Brocade ServerIron ADX 1000 App Delivery Load Balancer SI-1008-1 With Licenses

Model:ADX 1000 / SI-1008-1

In Good Condition, Full Working Order

Tested

One Power Supply Is Noisy

Includes SI-1008-1 and SI-1216-4-SSL-PREM Licenses

Included

1 xBrocade ServerIron ADX 1000 App Delivery Load Balancer SI-1008-1

2 x 504W Power Supply PSU

Description:
The Brocade ServerIron ADX 1000 Series provides additional capacity on demand via the software level and allows the system performance to be doubled or quadrupled without a hardware upgrade. In combination, the innovations create a more flexible application infrastructure and thus increase the speed of reaction to business requirements and optimize the use of the cost-intensive infrastructure.
License DescriptionSI-1008-1ServerIron ADX 1000 (1RU) - One CPU Core + Eight 10/100/1000 Mbps Ethernet Copper Ports + One AC Power Supply
SI-1216-4-SSL-PREMServerIron ADX 1000 (1RU) - Four CPU Cores + Sixteen 10/100/1000 Mbps Ethernet Copper Ports + Two 10 Gigabit Ethernet Fiber XFP Ports (No Optics) + One AC Power Supply + SSL License + Premium License (L3 Routing, IPv6, Multitenancy & GSLB)

Standard Switch Specification:

Connections Per Sec (CPS): 93,750
Transactions Per Sec (TPS): 625,000
Application throughput: 2 Gbps
DNS queries/sec (stateful): 106,250
DNS queries/sec (stateless): 562,500
Maximum SSL CPS (1024-bit key): 1625
Maximum SSL CPS (2048-bit key): 938
Maximum SSL TPS (1024-bit key): 7250
SYN flood protection (attacks/sec): 3,750,000
Hardware DDoS protection (packets/sec): 3,750,000
Maximum concurrent connections: 4,000,000
Maximum concurrent sessions: 8,000,000
Packet-switching latency: 20 microseconds
Maximum number of VIPs: 32
Maximum real servers: 256
Maximum application ports: 2048
Maximum number of tenants (multitenancy): N/A

Platform Attributes

Maximum application cores: 1
Maximum system memory: 2 GB
Maximum 1 Gigabit Ethernet (GbE) copper ports: 8
Maximum 1 Gigabit Ethernet (GbE) fiber ports: 0
Maximum 10 GbE ports: 0
Management port: 1 10/100/1000
Maximum power supply (AC/DC): Up to 2

Platform Characteristics

Physical dimensions

Height: 4.3 cm (1.7 in.)
Width: 44.3 cm (17.4 in.)
Depth: 45.8 cm (18.1 in.)

Weight: 37.5 lb fully loaded (17.0 kg)
Maximum power requirements: 390 watts
Power supply

AC input rating: 100 to 240 V, 50/60 Hz, 6.0 A max.
AC operating voltage range: 85 to 264 V, 50/60 Hz
DC input rating: −48 V, 15.0 A
DC operating range: −40 to −60 VDC

Boot Log:

Copyright (c)1996-2009 Brocade Communications Systems, Inc.
Boot Version12.5.00T405 Aug 14 2012 11:09:42 PDT label: dob12500
Monitor Version12.5.00T405 Aug 14 2012 11:09:42 PDT label: dob12500
System Version12.5.02wT403 Feb 9 2020 20:40:22 PSTlabel: ASR12502wa
AXP Version: 2.01Dated: 2013/02/28 15:13:07
PAX Version: 8.7Dated: 2012/02/28 17:04:52
MBRIDGE Version:000b, Device ID # ServerIron ADX 1216-4-PREM
Backplane Serial #: E20338H03T
Chassis Serial #: E32540H3MD
LID #: *********** License: SI-1216-4-SSL-PREM
Multi-tenancy: Disabled
Part #:35723-003B
SSL Card - Serial #: 1F0337H01L Part #: 40-1000373-02
Version #: managementmodule:
1499 MHz Power PC processor (SVR 2.2,PVR 8021/0030) 599 MHz bus
512 KB Boot flash
131072 KB Code flash
2048 MB DRAM
The system uptimeis 1 minutes 0 seconds
The systemstarted at 13:53:11, GMT+00, Tue Oct 18 2022The system - bootsource: primary, mode: cold start, softreset, total resets:0ServerIronADX1000#show chassis
Boot Prom MAC:748e.f8aa.9dc0
Type: SI-1216-4-PREM
Serial #: and PowerSupply 1 - STATUS:OK SPEED: MED-HI(RPM 7522)
Fan 2 - STATUS:OK SPEED: MED-HI(RPM 7418)
Fan 3 - STATUS:OK SPEED: MED-HI(RPM 7598)
Fan 4 - STATUS:OK SPEED: MED-HI(RPM 7462)
Fan 5 - STATUS:OK SPEED: MED-HI(RPM 7455)
Fan 6 - STATUS:OK SPEED: MED-HI(RPM 7302)
Power 1 (Part#: 3I50 Serial#:P134120022 Brocade Part#:32034002) (AC 504W)
Firmware Ver#: 41. 1: Installed (OK)
Power 2 (Part#:3I50 Serial#:P118120187 Brocade Part#:32034002) (AC 504W)
Firmware Ver#: 41. 1: Installed (OK)
Total powerbudget for system = 1008 CPUTemp: 39 deg C
BP 1 Temp: 38 degC
BP 2 Temp: 35 degC
AXP Temp: 25 degC
PAX Temp: 24 degC
Warning level :95 C degrees, shutdown level : 110 C degrees
ServerIronADX1000#show license
Index Package Name Lid License Type StatusLicense Period
1 SI-1008-1 ********** normal active unlimited
2 SI-1216-4-SSL-PREM **********normal invalid unlimited
3 SI-1216-4-SSL-PREM **********normal active unlimited
