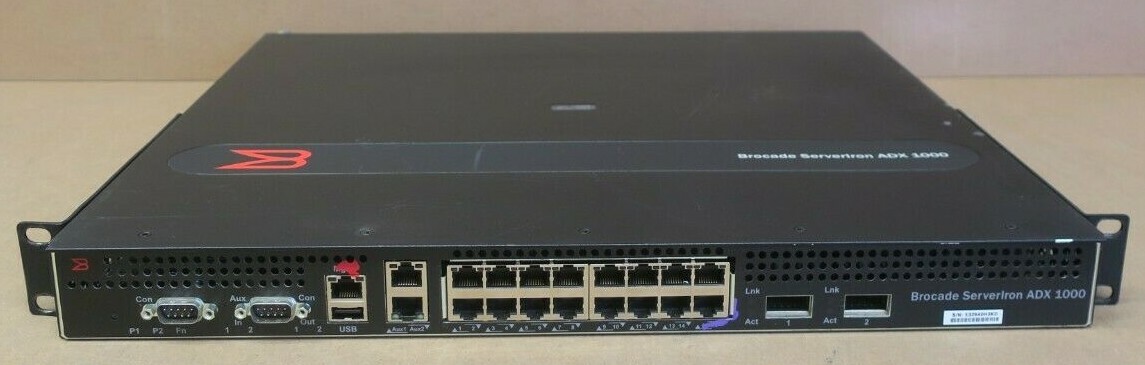

Brocade ServerIron ADX 1000 App Delivery Load Balancer SI-1216-4-SSL-PREM
Model:ADX 1216-4
In Good Condition, Full Working Order
Tested
Licenses Included
Included
- 1 xBrocade ServerIron ADX 1000 App Delivery Load Balancer SI-1216-4-SSL-PREM
- 2 x 504W Power Supply PSU
Description:
The Brocade ServerIron ADX 1000 Series provides additional capacity on demand via the software level and allows the system performance to be doubled or quadrupled without a hardware upgrade. In combination, the innovations create a more flexible application infrastructure and thus increase the speed of reaction to business requirements and optimize the use of the cost-intensive infrastructure.
License ADX 1000 (1RU) - Four CPU Cores + Sixteen 10/100/1000 Mbps Ethernet Copper Ports + Two 10 Gigabit Ethernet Fiber XFP Ports (No Optics) + One AC Power Supply + SSL License + Premium License (L3 Routing, IPv6, Multitenancy & GSLB)
Standard Switch Specification:
- Connections Per Sec (CPS): 93,750
- Transactions Per Sec (TPS): 625,000
- Application throughput: 2 Gbps
- DNS queries/sec (stateful): 106,250
- DNS queries/sec (stateless): 562,500
- Maximum SSL CPS (1024-bit key): 1625
- Maximum SSL CPS (2048-bit key): 938
- Maximum SSL TPS (1024-bit key): 7250
- SYN flood protection (attacks/sec): 3,750,000
- Hardware DDoS protection (packets/sec): 3,750,000
- Maximum concurrent connections: 4,000,000
- Maximum concurrent sessions: 8,000,000
- Packet-switching latency: 20 microseconds
- Maximum number of VIPs: 32
- Maximum real servers: 256
- Maximum application ports: 2048
- Maximum number of tenants (multitenancy): N/A
Platform Attributes
- Maximum application cores: 1
- Maximum system memory: 2 GB
- Maximum 1 Gigabit Ethernet (GbE) copper ports: 8
- Maximum 1 Gigabit Ethernet (GbE) fiber ports: 0
- Maximum 10 GbE ports: 0
- Management port: 1 10/100/1000
- Maximum power supply (AC/DC): Up to 2
Platform Characteristics
- Physical dimensions
- Height: 4.3 cm (1.7 in.)
- Width: 44.3 cm (17.4 in.)
- Depth: 45.8 cm (18.1 in.)
- Weight: 37.5 lb fully loaded (17.0 kg)
- Maximum power requirements: 390 watts
- Power supply
- AC input rating: 100 to 240 V, 50/60 Hz, 6.0 A max.
- AC operating voltage range: 85 to 264 V, 50/60 Hz
- DC input rating: −48 V, 15.0 A
- DC operating range: −40 to −60 VDC
Boot Log:
Index Package Name LidLicense Type StatusLicense Period
1 SI-1216-4-SSL-PREM **********normal active chassis
Boot Prom MAC:748e.f8aa.7380
Type: SI-1216-4-PREM
Serial #: and PowerSupply 1 - STATUS:OK SPEED: MED-HI(RPM 7492)
Fan 2 - STATUS:OK SPEED: MED-HI(RPM 7433)
Fan 3 - STATUS:OK SPEED: MED-HI(RPM 7606)
Fan 4 - STATUS:OK SPEED: MED-HI(RPM 7360)
Fan 5 - STATUS:OK SPEED: MED-HI(RPM 7352)
Fan 6 - STATUS:OK SPEED: MED-HI(RPM 7522)
Power 1 (Part#:3I50 Serial#:P129120619 Brocade Part#:32034002) (AC 504W)
Firmware Ver#: 41. 1: Installed (OK)
Power 2 (Part#:3I50 Serial#:P132120234 Brocade Part#:32034002) (AC 504W)
Firmware Ver#: 41. 1: Installed (OK)
Total powerbudget for system = 1008 CPUTemp: 36 deg C
BP 1 Temp: 36 degC
BP 2 Temp: 35 degC
AXP Temp: 26 degC
PAX Temp: 24 degC
Warning level :95 C degrees, shutdown level : 110 C degrees
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£200.00 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
