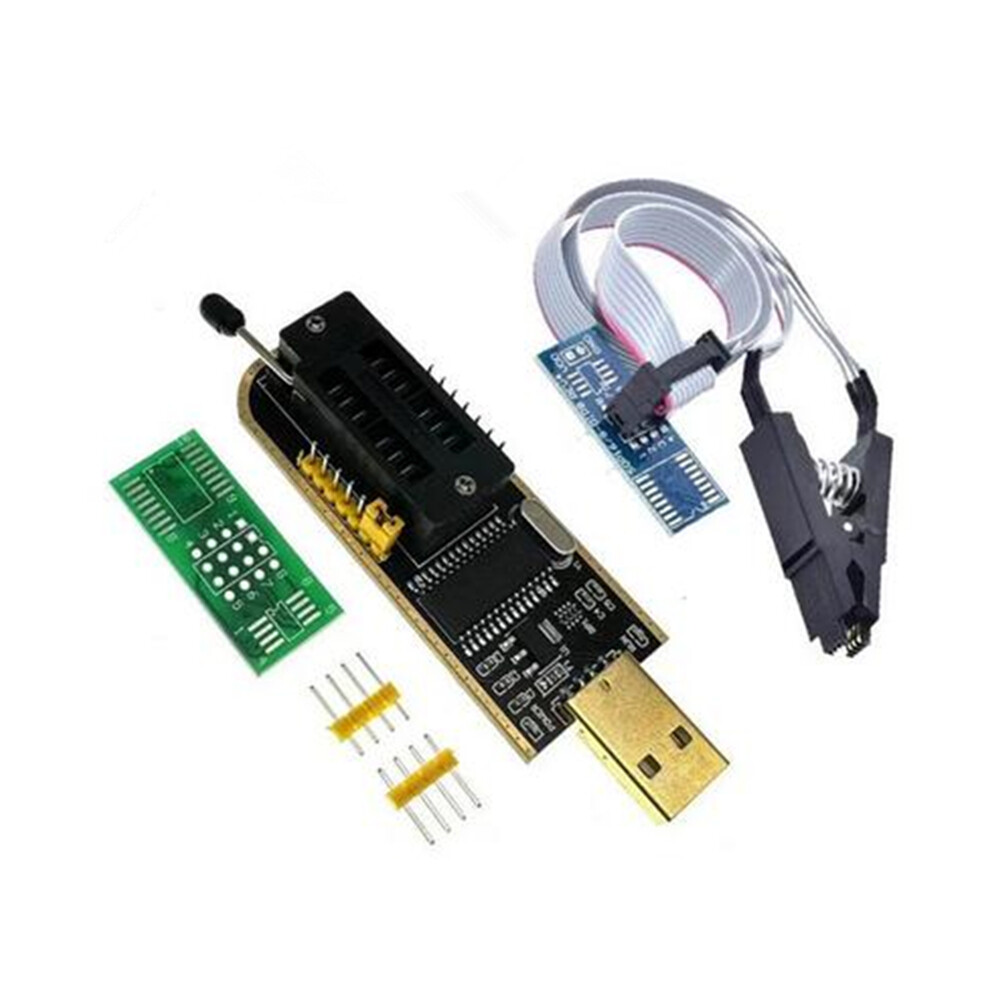

Product Description CH341A 24 25 Series Flash BIOS USB Programmer Module + SOIC8 SOP8 Test Clip 1SetCH341A 24 25 Series Flash BIOS USB Programmer Module + SOIC8 SOP8 Test Clip For EEPROM 93CXX / 25CXX / 24CXX DIY Kit
Product characteristics:
-Adopting FT232BL chip with external EEPROM (93C46)
-Support for Windows 10
-Supports three power supply modes: 5V external power supply; 3.3V external power supply; External power supply (3.3V-5V required)
-With 3 LEDs: TXD LED, RXD LED, POWER LED
-ND, RXD, TXD, 3V3, 5V: using curved needle leads
-Other functions PIN: reserved pad CTS, RTS
Instructions for use: (Taking connecting to MCU as an example)
GND: Connected to GND
RXD: Connected to MCU. TX (Signal flow direction: MCU. Connected to MCU. RX (Signal flow direction: MCU. RX<<FT232<<PC. TX)
3V3/5V: Output 3.3V or 5V (module powered by USB, jumper cap must be jumped to 3.3V or 5V)
RTS: Connected to MCU. CTS (Signal flow direction: MCU. Connected to MCU. RTS (Signal flow direction: MCU. RTS>>FT232>>PC. CTS)
Packaging includes:
1 x CH341A USB Programmer
1 x SOP8 Test Clip
