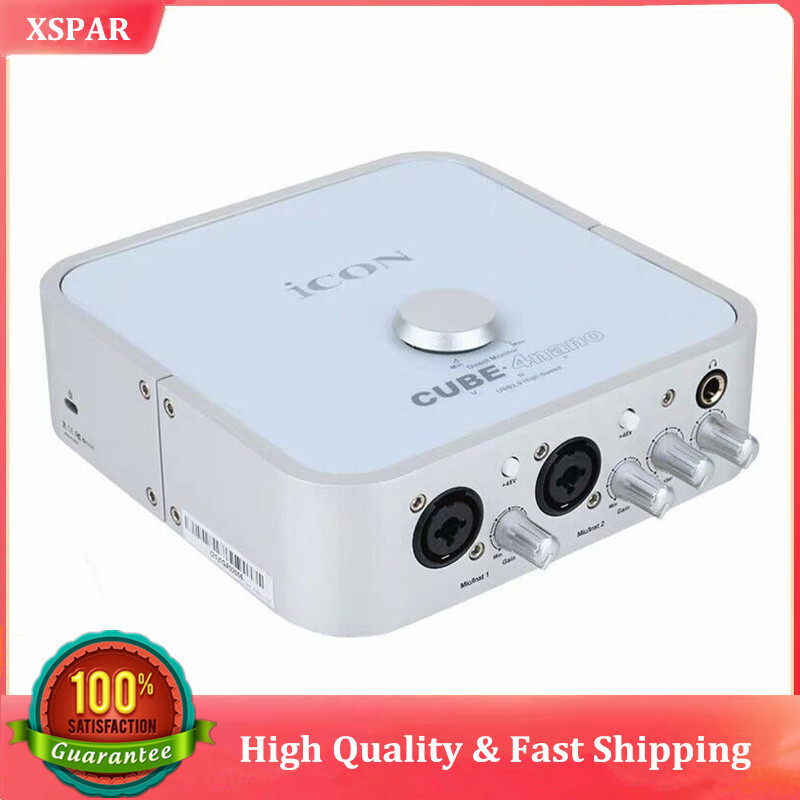

Description CUBE 4NANO Dyna External Sound Card K Song Live Sound Card Cellphone Live Streaming Gadget for iCON
Description:
The 4NANO Dyna USB audio interface provides audio input and output modules, as well as analog and digital connectivity for live streaming applications with any smart mobile device.
Features:
* 24bit 44.1~192kHz 4IN 4 OUT sound card
* High-end studio-grade DAC/ADC provide ultra-high dynamic range
* Dynamic range: 127dB
* Support for Mac/PC and smart mobile device simultaneous connection
* 4x4 analog I/O full-duplex recording and playback
* Compatible with digital I/O jacks (Type-C) and analog L/O jacks for iOS and Android
* 3.5mm stereo TRRS
* Connect directly to smartphones, tablets and other devices
* Mic/instrument preamp with independent gain control and Phantom power switch
* 2 analog outputs or 3.5mm stereo analog outputs on 6.35mm TRS jack
* The top panel is equipped to control the level of direct monitoring
* The top panel is equipped with buttons to control direct monitoring
* Equipped with headphone output with assignable source and individual volume control
* Two Type-C "OTG" ports allow direct connection to 2 mobile devices
* Flexible channel routing via the software control panel for ProDriver4
* An ultra-low latency driver (for ProDriver4) is provided
* Both platforms for Mac and Windows are equipped with LoopBack for ProDriver4
* Audio signal processing is available via a virtual plug-in rack (for ProDriver4) for real-time conversations
* Equipped with USB2.0 high-speed and USB bus power
* ARM-M7/500MHz processing power and technology for ultra-fast and stable signal processing
* Support for DirectSound, WDM and ASIO 2.0
* Compatible with versions for mac OS (for Intel-Mac) 10.11 and later, iOS 9 or later Android and Windows 7, 8 and 10 (32-bit/64-bit)
* Full duplex, simultaneous recording/playback
* When used with devices for iOS, +5VDC external power supply can be connected
* Robust aluminum construction
* Bundled for Bitwig Studio 16 Track
* Comes with an audio plug-in for Dotec
Specifications:
ADC:
* Dynamic range: 122dB
* Signal-to-noise ratio: -122dB
* THD+N ratio: -116dB, -1dBFS
MIC1/2 input:
* Frequency response: 20Hz~20kHz (+/-0.1dB)
* Noise on: <-120dB
* Input impedance: Mic in: 1.8KΩ, typical
* Gain range: -6dB to +46dB
* Maximum input level: +9dB
DAC:
* Dynamic range: 127dB
* Signal-to-noise ratio: -127dB
* THD+N ratio: -120dB, 0dBFS
Instrument1/2 input:
* Frequency response: 20Hz~20kHz (+/-0.1dB)
* Input impedance: 390KΩ
* Gain range: +0dB to +39dB
* Maximum input level: +9dBu
Line output 1/2:
* Frequency response: 20Hz~20kHz (+/-0.1dB)
* Nominal output level: +4dBu
* Max. output level: +10dBu
* Output impedance: 150Ω
* Load impedance: 600 minimum
Headphone output:
* Frequency response: 20Hz~20kHz (+/-1dB)
* Max. output level: +9dBu
* Output impedance: 10Ω
* Load impedance: 32-600Ω
Package Included:
* 1 x Sound Card
* 1 x Installation Manual
* 1 x Plug Adapter
* 1 x 3.5MM Audio Cable
