Camplex opticalCON QUAD NKO4S to (4) LC Single Mode Fiber Breakout Cable, 100ft
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

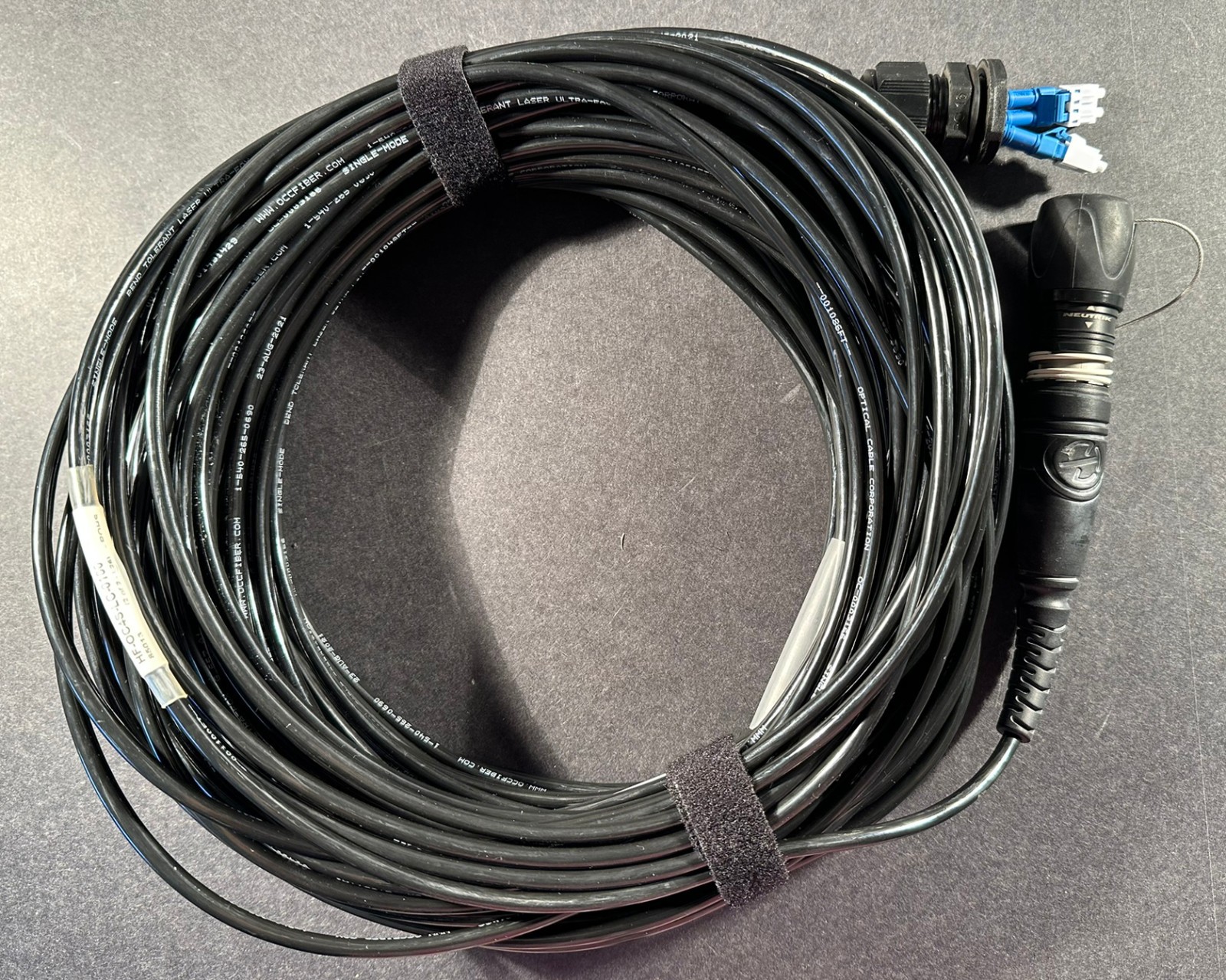

Camplex opticalCON QUAD NKO4S to (4) LC Single Mode Fiber Breakout Cable, 100ft
Price: US $500.00
For Sale on (1) Camplex opticalCON QUAD NKO4S to (4) LC Single Mode Fiber Breakout Cable, 100ft. It is used, in Excellent Condition.

Features:

  • opticalCON assemblies are interferometrically tested to GR-326-CORE endface standards.
  • Made with high quality Senko LC connectors with excellent optical parameters and random mating compatibility results.
  • Machine polishing processes provide exceptionally low return loss and insertion loss.
  • opticalCON features a ruggedized connector body, common LC contacts and a mechanical shutter system to shield against endface contamination.

  • Specifications:

      Overall Specifications
    • 1x Neutrik opticalCON
    • 4x Senko 932-153-1D2
    • Tactical Polyurethane Jacket
    • 5mm diameter
    • Black Nickel Finish Connector BodyMechanical Specifications
    • Cable Retention Force: = 500N
    • Lifetime: > 1000 Cycles
    • Insertion/Withdrawal Force: < 45N
    • Operating Temperature: -13°F - 167°F (-25°C - 75°C)
    • Minimum Bend Radius: = 4cmOptical Specifications
    • Type: LC-UPC (Straight Polish)
    • Fiber Type: 9µm Singlemode Fiber
    • Cable Loss: < 3dB/km @ 850nm, < 1dB/km @ 1300nm
    • Connector Loss: < 0.5dB/Connection
    • Connector Back Reflection: -55dB/-45dB RL
