Chimei Innolux N133FGE-L31 13.3" LCD Panel 1366x768 Glossy 16:9
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Chimei Innolux N133FGE-L31 13.3" LCD Panel 1366x768 Glossy 16:9
Price: US $29.00

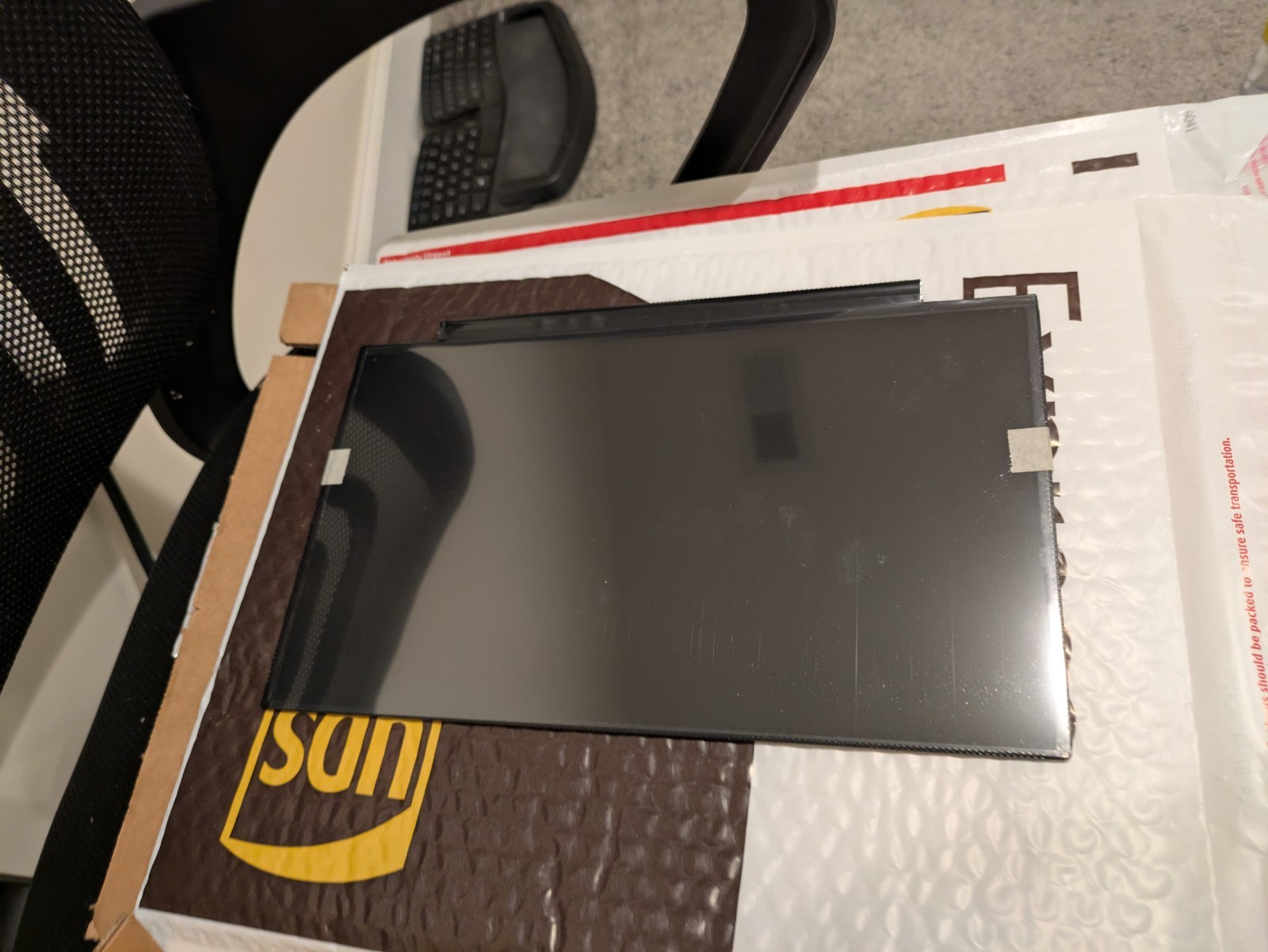

Bought this to try and replace a laptop screen. Couldn't get them to work together, but it was functional at the time. I have no way to test it now, so it's sold As-Is. Smudges are on the screens shipping cover, not the screen itself.The following is from the original product listing:Brand Innolux
Panel Type a-Si TFT-LCD, LCM
Diagonal Size 13.3″
Pixel Format RGB Vertical Stripe
Resolution 1600(RGB)×900, HD+ 138PPI
Refresh Rate 60Hz
Active Area 294(W)×165.375(H) mm
Outline Size 300.26(W)×188.25(H) ×3(D) mm
Luminance 300 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10)
Work Mode TN, Normally White, Transmissive
Display Colors 262K 66% NTSC
Voltage Supply 3.3V (Typ.)
Panel Weight 182/197g (Typ./Max.) Backlight WLED , 15K hours , With LED Driver
Signal Interface LVDS (2 ch, 6-bit) , 40 pins Connector Environment
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °CThe N133FGE-L31 (Product Code: CMN1340) is a 13.3 inch diagonal a-Si TFT-LCD display panel product from Chimei Innolux Corporation (hereafter called Chimei Innolux), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It’s general features are summarized by Panelcd in the following: WLED Backlight, With LED Driver, Reverse I/F, Matte . Based on its features, Panelcd recommend that this model be applied to Laptop etc. According to the information stored in Panelcd this model mass production on Q4, 2011, Now this model is discontinued.
