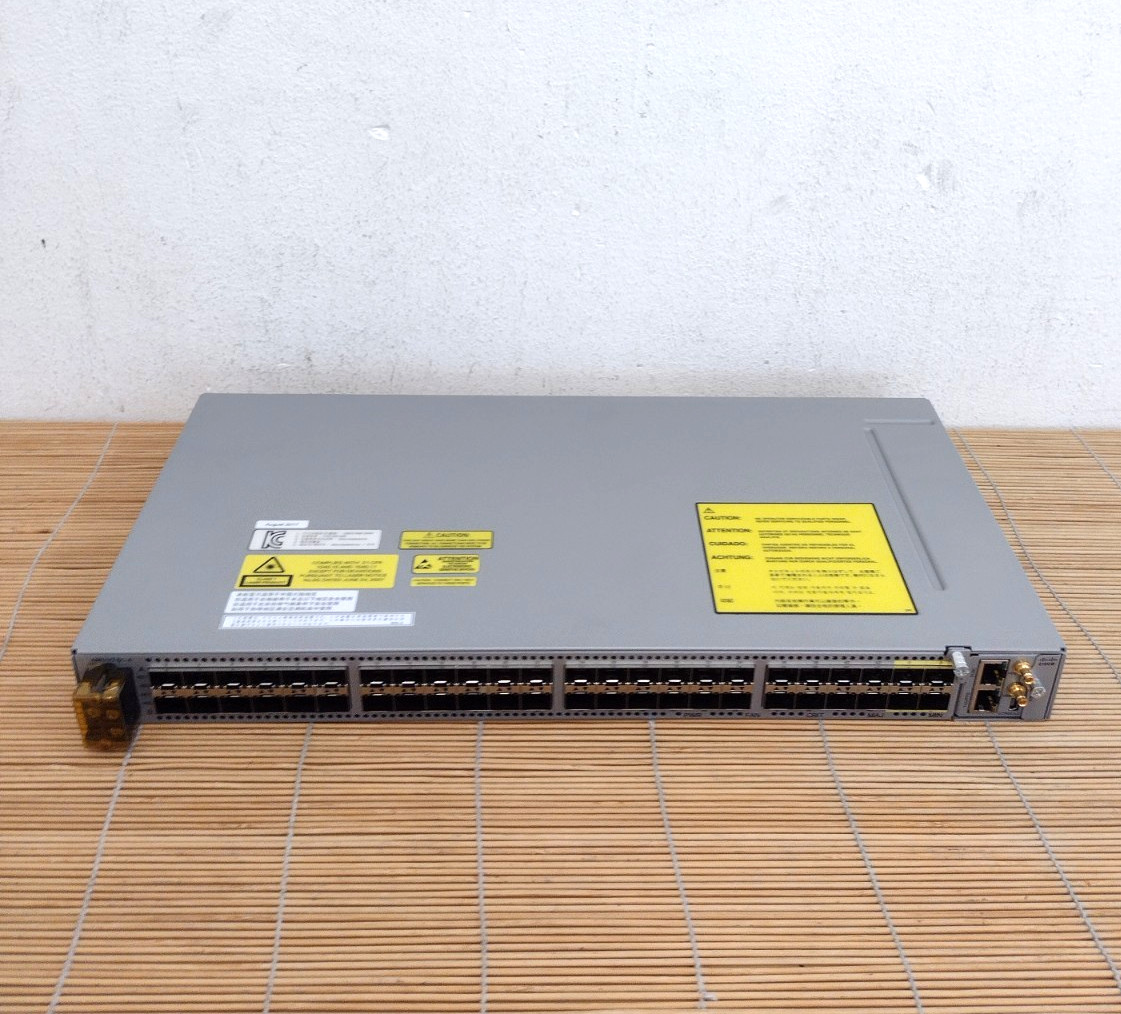

Cisco A9KV-V2-DC-A44-Port GE + 4-Port 10GE ASR 9000v-V2 DC Power ANSI Chassis
/DE/ Auf Anfrage ist die Gewährung eines 7-tägigen Zahlungszieles für gewerbliche EU-Käufer möglich (Kreditwürdigkeit vorausgesetzt).
/EN/ After a creditworthiness check EU-commercial purchaser can pay for this item within 7 days from date of invoice.
WIR GEBEN 3 JAHRE GARANTIE!
Dieses Angebot unterliegt der Differenzbesteuerung nach § 25a UStG., daher ist die Mehrwertsteuer im Preis inkludiert. Die Umsatzsteuer wird aber in der Rechnung nicht ausgewiesen und kann nicht in Abzug gebracht werden.
Wenn Sie auf einer Rechnung mit ausgewiesener Umsatzsteuer bestehen, informieren Sie uns bitte, damit wir ein entsprechendes -Angebot speziell für Sie erstellen können.
Das Angebot richtet sich ausschließlich an Personen außerhalb Österreichs und an gewerbliche Käufer in der EU, ist daher UmsatzsteuerFREI!
Privatpersonen, wenn die zufällig den Artikel ersteigert haben, erhalten eine Rechnung gemäß § 24 UStG 1994 (Differenzbesteuerung) - UmsatzsteuerFREI!
Bitte mailen Sie uns sofort nach Auktionsende/Kauf Ihre UID (Umsatzsteuer-Identifikationsnummer), damit wir für Sie eine
Netto-Rechnung erstellen können. Sollten Sie als Unternehmer noch keine UID haben, beantragen Sie diese bitte beim Finanzamt oder kontaktieren Sie uns.
Edge and access integrated as one network virtualized (nV) system. That’s what you get with the Cisco®ASR 9000v and Cisco ASR 9000v-V2, which use the Cisco ASR 9000 Series nV technology to integrate access and edge functions. The Cisco ASR 900 0v and Cisco ASR 9000v-V2 operate as an extension shelf of the Cisco ASR 9000 Series Aggregation Services Routers, providing delivery of Cisco ASR 9000 Series services from the Cisco ASR 9000v or Cisco ASR 9000v-V2. Using nV technology lets you dramatically reduce your operational costs by simplifying the access and edge network and by delivering tremendous service and network scale through the use of the Cisco ASR 9000 distributed control plane, which extends feature processing to the access layer.
Product Overview
Deployed adjacent to, or remotely from, its Cisco ASR 9000 Series host, the environmentally hardened, front-access, low-power, ultra-compactCisco ASR 9000v and ASR 9000v-V2delivers ASR 9000 Series services and scale at locations that are otherwise unachievable by either an access system or an edge system. Because the nV technology extends the Cisco ASR 9000 Series control plane and management interface over a fabric port that incorporates the Cisco ASR 9000v and Cisco ASR 9000v-V2 as a component of the Cisco ASR 9000 Series host, installation, turn-up, Element Management System (EMS) and Network Management System (NMS) integration, and service activation can be accomplished in a matter of minutes
●Feature alignment
Because services and features of the nV technology are provided by the Cisco ASR 9000 Series host, the Cisco ASR 9000v and Cisco ASR 9000v-V2 reduce the error-prone and frustrating guesswork of aligning the continuously evolving features, services, and behavior of otherwise independently deployed access and edge systems.
●Flexible topologies
The Cisco ASR 9000v and Cisco ASR 9000v-V2 can be deployed adjacent to, or remotely from their Cisco ASR 9000 Series host, supporting applications that require high-density ports, or many remote points of presence. The Cisco ASR 9000v and Cisco ASR 9000v-V2 can be directly connected to the Cisco ASR 9000 Series host, including over a dense wavelength-division multiplexing (DWDM) system, or evolve to operate over other topologies.
●Service scale
By taking advantage of the industry-leading service and network scale of the Cisco ASR 9000 Series edge system, the Cisco ASR 9000v and Cisco ASR 9000v-V2 redefines the relationship between service scale and packaging.
●Resiliency
The Cisco ASR 9000v and Cisco ASR 9000v-V2 can be connected to multiple Cisco ASR 9000 Series redundant hosts. The Cisco ASR 9000 Series control plane extension to the Cisco ASR 9000v delivers resiliency to Cisco ASR 9000v shelf, access port, and fabric port failures.
●Ease of certification, training, and deployment
Because feature provisioning, command-line interface (CLI), management system integration, software maintenance, and feature processing are provided by the Cisco ASR 9000 Series host using Cisco IOS®XR Software, the incremental effort for certification, operator training, network integration, and deployment of a Cisco ASR 9000v and Cisco ASR 9000v-V2 is dramatically reduced.
●Ease of management
Management of a Cisco ASR 9000v and Cisco ASR 9000v-V2 will be dramatically reduced relative to a standalone network element, because:
◦The Cisco ASR 9000v and Cisco ASR 9000v-V2 are not deployed, configured, upgraded, or integrated into the EMS and NMS as an independent network element.
◦The functions provided by the Cisco ASR 9000v and Cisco ASR 9000v-V2 are reduced relative to a standalone network element.
◦Cisco ASR 9000v and Cisco ASR 9000v-V2 software images are managed through the Cisco ASR 9000 software Management infrastructure.
●Ultra-low power and footprint
With power requirements comparable to a light bulb and a physical profile comparable to a laptop, the Cisco ASR 9000v and Cisco ASR 9000v-V2 delivers the advanced features and services of the Cisco ASR 9000 Series at a tiny fraction of the power draw or the footprint of any comparable edge router.
●Environmentally hardened design
The Cisco ASR 9000v and Cisco ASR 9000v-V2 hardened design supports deployment of Cisco ASR 9000 Series services in cabinets and non-temperature-controlled buildings.
●Front access
The fully front-access Cisco ASR 9000v and Cisco ASR 9000v-V2 can be mounted against a wall or cabinet or back-to-back with other equipment in a single cabinet with complete serviceability through the front panel.
●Ease of EMS and NMS integration
The incremental effort to integrate the Cisco ASR 9000v and Cisco ASR 9000v-V2 into a network with the Cisco ASR 9000 Series is dramatically reduced because the Cisco ASR 9000 Series host presents the Cisco ASR 9000v and Cisco ASR 9000v-V2 to the EMS and NMS as a component of the Cisco ASR 9000 Series and because provisioning, services, and feature processing are delivered by the Cisco ASR 9000 Series host using its existing schema.
●ACT support
The Cisco ASR 9000 Series Craft Tool (ACT) that is available with the Cisco ASR 9000 Series host provides a graphical representation of the Cisco ASR 9000v and Cisco ASR 9000v-V2 status as part of the Cisco ASR 9000 Series, as well as administration of the ASR 9000v software.
●Cisco Prime™support
The Cisco ASR 9000v is supported under Cisco Prime for Service Providers, Cisco’s advanced Element Management System (EMS). Support includes discovery, maintenance, provisioning, and fault management.
●Chassis options:
◦AC - AC chassis with three-pronged connector
◦DC ANSI - DC chassis with A/B-power feeds and ANSI connectors
◦DC ETSI - DC chassis with A/B power feeds and ETSI connectors
●Field-replaceable fan tray and filter
The Cisco ASR 9000v and Cisco ASR 9000v-V2 include a front-accessed field-replaceable fan tray, as well as a field-replaceable filter.
Product Interfaces
Table 1 lists the interfaces supported by the Cisco ASR 9000v and Cisco ASR 9000v-V2. Some feature availability is dependent on Cisco ASR 9000 Series software releases.
Cisco ASR 9000v-V2 requires minimum version IOS-XR 5.2.2 to be supported as Satellite.
Table 1.Cisco ASR 9000v and Cisco ASR 9000v-V2 Interfaces
Interface
Description
44 Small Form-Factor Pluggable (SFP) ports (10, 100 and 1000 Mbps)
SFP ports deliver 10, 100, and 1000 Mbps services. See the Cisco Optical Pluggable Modules for ASR 9000v Data Sheet for details on the supported pluggable ports.
4 SFP+ 10-GE Pluggable Ports
SFP+ interfaces provide mix-and-match interface types. For a complete list of supported interfaces, see the Cisco Optical Pluggable Modules for ASR 9000v Data Sheet for details on the supported pluggable ports.
AC
Cisco ASR 9000v AC Chassis only, this three-connector receptacle is intended for use with external AC cables.
ANSI DC-A and DC-B
Cisco ASR 9000v DC-A Chassis only, these two redundant DC power inputs are ANSI compliant.
ETSI DC-A and DC-B
Cisco ASR 9000v DC-E Chassis only, these two redundant DC power inputs are ETSI compliant.
EOBC
Ethernet management port that can be optionally used for local Cisco ASR 9000v management.
Console
Serial port that can be optionally used for local Cisco ASR 9000v management.
Time of day (ToD) and packets per second (PPS)
Reserved for future use.
Product Specifications
Table 2 lists specifications for the Cisco ASR 9000v and Cisco ASR 9000v-V2.
Table 2.Product Specifications
Description
ASR 9000v Specification
ASR 9000v-V2 Specification
Physical dimensions (H x W x D);
weight
AC:
1.560 in. x 17.417 in. x 9.095 in.; 8.95 lbs.
(3.96 cm x 44.24 cm x 23.10 cm; 4.06 kg)
DC ANSI & DC ETSI:
1.560 in. x 17.417 in. x 9.095 in.; 9.30 lbs
(3.96 cm x 44.24 cm x 23.10 cm; 4.22 kg)
AC:
1.56 in. x 17.42 in. x 9.1 in.; 8.95 lbs
(39.62 mm x 442.39 mm x 231.01 mm;4.06 kg)
DC ANSI & DC ETSI:
1.56 in. x 17.42 in. x 9.1 in; 9.30 lbs
(39.62 mm x 442.39 mm x 231.01 mm; 4.22 kg)
Power
Nominal power: 159W
Maximum power: 210W
Nominal Power: 120W
Maximum Power: 170W
AC input voltage
(ASR 9000v AC Chassis Option)
100-240V AC, 50 and 60 Hz
100-240V AC, 50 and 60 Hz
DC input voltage
(ASR 9000v DC-A/DC-E Chassis Option)
-36V to -74V DC
-36V to -74V DC
Network Equipment Building Standards (NEBS)
GR-1089 Issue 5 and GR-63 Issue 3
GR-1089 Issue 5 and GR-63 Issue 3
Operating temperature (nominal)
-40ºC to +65ºC
DC ANSI/ETSI: -40ºC to +65ºC
AC: -5ºC to +55ºC
Operating humidity (nominal)
(relative humidity)
5-85% noncondensing operation is guaranteed up to 95% noncondensing
5-85% noncondensing operation is guaranteed up to 95% noncondensing
Storage temperature
-40ºC to +70ºC
-40ºC to +70ºC
Storage (relative humidity)
93% noncondensing
93% noncondensing
Operating altitude
13,123 ft (4000m)
13,123 ft (4000m)
