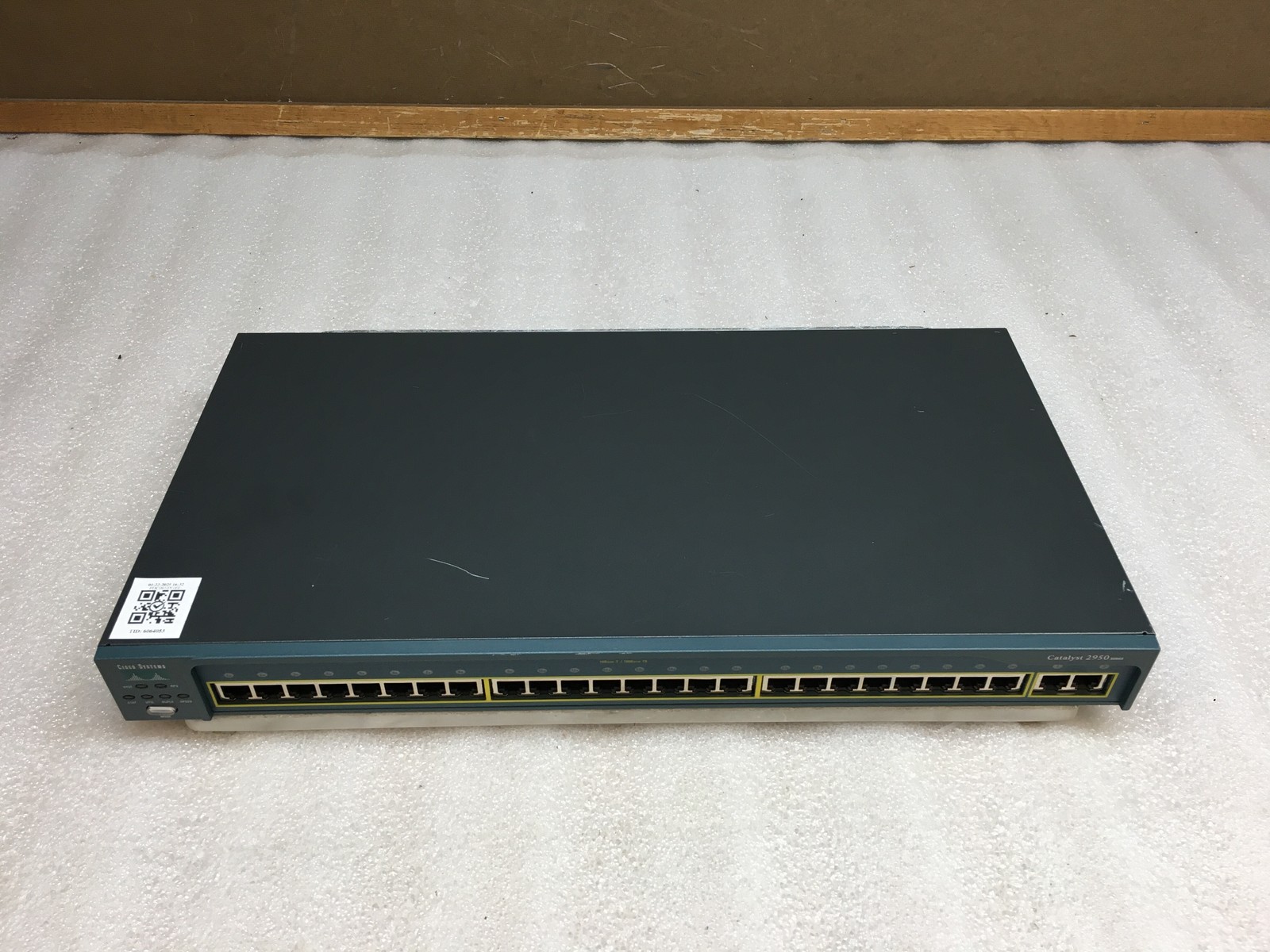

Listing Grid template example Product Photo Description Cisco Catalyst 2950 Series WS-C2950T-24 24-Port Ethernet Network Switch Cisco Catalyst 2950 Series WS-C2950T-24 24-Port Ethernet Network Switch

The Cisco Catalyst 2950 Series WS-C2950T-24 is a reliable and robust 24-port Ethernet switch designed to deliver consistent performance in enterprise and business network environments. Built for scalability and ease of use, this managed switch is ideal for organizations looking to enhance their local area network (LAN) with secure and manageable Number: WS-C2950T-24

Ports: 24 x 10/100 Mbps Ethernet ports

Uplink: 2 x 10/100/1000Base-T Gigabit Ethernet uplink ports

Form Factor: Rack-mountable (1U)

Switching Capacity: 8.8 Gbps

Forwarding Rate: 6.6 Mpps (million packets per second)

MAC Address Table Size: 8K entries

Management: Cisco Cluster Management Suite (CMS)

PoE Support: No

Operating System: Cisco IOS

Key Features

• 24 Fast Ethernet ports and 2 Gigabit Ethernet uplink ports for flexible connectivity
• Intelligent traffic management with quality of service (QoS)
• Integrated security features including port security and VLAN support
• Support for Cisco Cluster Management Suite (CMS) for simplified administration
• IEEE 802.1Q VLAN support for advanced network segmentation
• Spanning Tree Protocol (STP) support for loop prevention and uptime

Important Notes

• Minor scratches, scuffs, and scrapes from previous use and storage

Included

• No Accessories Included

Not Included

• Power adapter/cable
• Rack mounting kit
• User manual
• Console ver

  Cisco Internetwork Operating System Software

  IOS (tm) C2950 Software (C2950-I6Q4L2-M), Version 12.1(22)EA2, RELEASE SOFTWARE (fc1)

  Copyright (c) 1986-2004 by cisco Systems, Inc.

  Compiled Sun 07-Nov-04 23:14 by antonino

  Image text-base: 0x80010000, data-base: 0x8055E000




  ROM: Bootstrap program is C2950 boot loader




  Switch uptime is 1 minute

  System returned to ROM by power-on

  System image file is WS-C2950T-24 (RC32300) processor (revision R0) with 21055K bytes of memory.

  Processor board ID FOC0910Y1FJ

  Last reset from system-reset

  Running Enhanced Image

  24 FastEthernet/IEEE 802.3 interface(s)

  2 Gigabit Ethernet/IEEE 802.3 interface(s)




  32K bytes of flash-simulated non-volatile configuration memory.

  Base ethernet MAC Address: 00:13:7F:F2:94:00

  Motherboard assembly number: 73-6114-10

  Power supply part number: 34-0965-01

  Motherboard serial number:

  Power supply serial number: DAB09083H0H

  Model revision number: R0

  Motherboard revision number: A0

  Model number: WS-C2950T-24

  System serial number:

  Configuration register is con vlan




  VLAN NameStatusPorts

  ---- -------------------------------- --------- Fa0/2, Fa0/3, Fa0/4

  Fa0/5, Fa0/6, Fa0/7, Fa0/8

  Fa0/9, Fa0/10, Fa0/11, Fa0/12

  Fa0/13, Fa0/14, Fa0/15, Fa0/16

  Fa0/17, Fa0/18, Fa0/19, Fa0/20

  Fa0/21, Fa0/22, Fa0/23, Fa0/24

  Gi0/1, Gi0/2

  1002 fddi-defaultact/unsup

  1003 token-ring-defaultact/unsup

  1004 fddinet-defaultact/unsup

  1005 TypeSAIDMTUParent RingNo BridgeNo StpBrdgMode Trans1 Trans2

  ---- ----- ---------- ----- ------ ------ -------- ---- -------- ------ fddi1010021500-----00

  1003 tr1010031500-----00

  1004 fdnet 1010041500---ieee -00

  1005 trnet SPAN Secondary TypePorts

  ------- --------- ----------------- interface status







  Specifications Functional Condition:
  F3 - Key Functions Working

  Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.

  Cosmetic Condition:
  C4 - Used Good

  Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.

  Data Sanitization:
  S3 - Data Clear

  Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22


  Mpn
  WS-C2950T-24 Function Tests Powers On
  Passed Physical Inspection
  Passed Functions
  Passed Buttons
  Passed Shipping
