N/A
IOS 15.2
ipservices
2x C3KX-PWR-350WAC (Takes C13 Plug)
Minor signs of prior use, including
scratches, scuffs and possible adhesive
residue remaining.

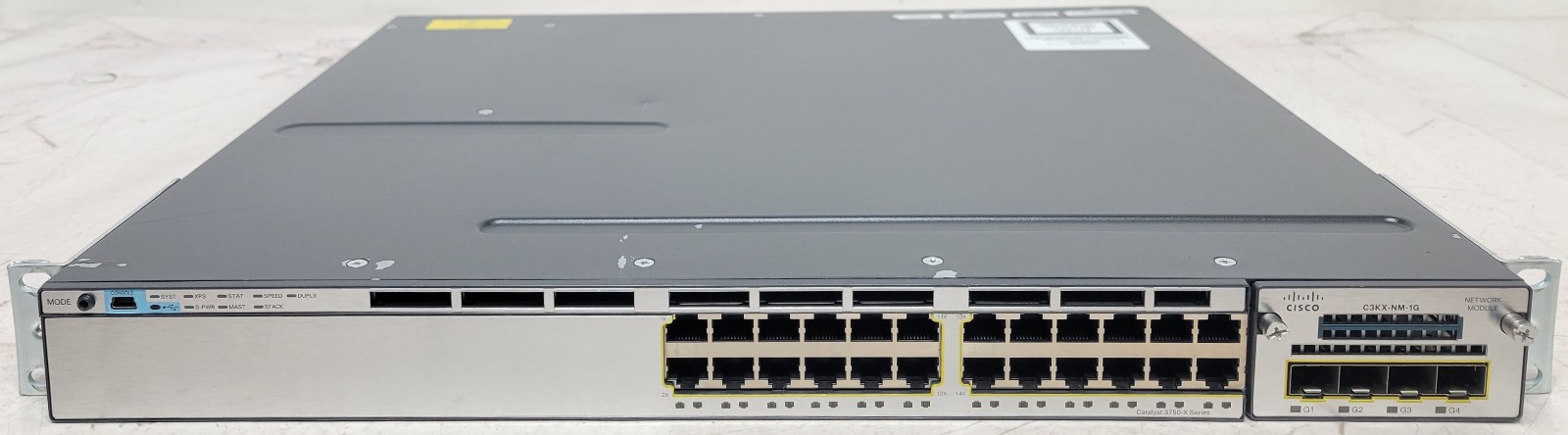

These signs appear mainly on the top of the unit
and the units face plate. See Photos for more cosmetic details about the
unit. Power Cord(s)
C13 Plug Needed
Switch#show diagnostic result switch 1Switch 1: SerialNo : FDO1620R1MN Overall Diagnostic Result for Switch 1 : PASS Test results: (. = Pass, F = Fail, U = Untested) 1) TestPortAsicStackPortLoopback ---> .
2) TestPortAsicLoopback ------------> .
3) TestPortAsicRingLoopback --------> .
4) TestPortAsicCam -----------------> .
5) TestMicRingLoopback -------------> .
6) TestPortAsicMem -----------------> .Switch#show env all
FAN 1 is OK
FAN 2 is OK
FAN PS-1 is OK
FAN PS-2 is OK
SYSTEM TEMPERATURE is OK
System Temperature Value: 23 Degree Celsius
System Temperature State: GREEN
Yellow Threshold : 46 Degree Celsius
Red Threshold : 60 Degree Celsius
SW PID Serial# Status Sys Pwr PoE Pwr Watts
-- ------------------ ---------- --------------- ------- ------- -----
1A C3KX-PWR-350WAC AZS161702TW OK Good Good 350/0
1B C3KX-PWR-350WAC AZS1617015E OK Good Good 350/0SW Status RPS Name RPS Serial# RPS Port#
-- ------------- ---------------- ----------- ---------
1 Not Present <>
Switch#show inv
NAME: "1", DESCR: "WS-C3750X-24"
PID: WS-C3750X-24T-S , VID: V02 , SN: FDO1620R1MNNAME: "Switch 1 - Power Supply 1", DESCR: "FRU Power Supply"
PID: C3KX-PWR-350WAC , VID: V02A , SN: AZS161702TWNAME: "Switch 1 - Power Supply 2", DESCR: "FRU Power Supply"
PID: C3KX-PWR-350WAC , VID: V02A , SN: AZS1617015ENAME: "Switch 1 - FRULink Slot 1 - FRULink Module", DESCR: "FRULink 1G Module"
PID: C3KX-NM-1G , VID: V01 , SN: FDO162417NG
Switch#show post
Stored system POST messages:Switch 1
---------POST: CPU MIC register Tests : Begin
POST: CPU MIC register Tests : End, Status PassedPOST: MA BIST : Begin
POST: MA BIST : End, Status PassedPOST: TCAM BIST : Begin
POST: TCAM BIST : End, Status PassedPOST: SF ASIC BIST : Begin
POST: SF ASIC BIST : End, Status PassedPOST: Switch Fabric Memory Tests : Begin
POST: Switch Fabric Memory Tests : End, Status PassedPOST: CPU MIC interface Loopback Tests : Begin
POST: CPU MIC interface Loopback Tests : End, Status PassedPOST: PortASIC RingLoopback Tests : Begin
POST: PortASIC RingLoopback Tests : End, Status PassedPOST: Thermal, Fan Tests : Begin
POST: Thermal, Fan Tests : End, Status PassedPOST: PortASIC Port Loopback Tests : Begin
POST: PortASIC Port Loopback Tests : End, Status PassedPOST: PortASIC Macsec Loopback Tests : Begin
POST: PortASIC Macsec Loopback Tests : End, Status PassedPOST: EMAC Loopback Tests : Begin
POST: EMAC Loopback Tests : End, Status PassedSwitch#show int statusPort Name Status Vlan Duplex Speed Type
Gi1/0/1 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/2 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/3 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/4 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/5 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/6 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/7 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/8 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/9 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/10 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/11 notconnect 1 auto auto 10/100/1000BaseTXPort Name Status Vlan Duplex Speed Type
Gi1/0/12 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/13 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/14 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/15 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/16 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/17 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/18 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/19 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/20 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/21 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/22 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/0/23 notconnect 1 auto auto 10/100/1000BaseTXPort Name Status Vlan Duplex Speed Type
Gi1/0/24 notconnect 1 auto auto 10/100/1000BaseTX
Gi1/1/1 notconnect 1 auto auto Not Present
Gi1/1/2 notconnect 1 auto auto Not Present
Gi1/1/3 notconnect 1 auto auto Not Present
Gi1/1/4 notconnect 1 auto auto Not Present
Fa0 notconnect routed auto auto 10/100BaseTX
Switch#show pow iModule Available Used Remaining
(Watts) (Watts) (Watts)
------ --------- -------- ---------
1 n/a n/a n/a
Interface Admin Oper Power Device Class Max
(Watts)
--------- ------ ---------- ------- ------------------- ----- ----Switch#show license
Index 1 Feature: ipservices
Period left: Life time
License Type: Permanent
License State: Active, In Use
License Priority: Medium
License Count: Non-CountedIndex 2 Feature: ipbase
Period left: Life time
License Type: Permanent
License State: Active, Not in Use
License Priority: Medium
License Count: Non-CountedIndex 3 Feature: lanbase
Period left: 0 minute 0 secondSwitch#show ver
Cisco IOS Software, C3750E Software (C3750E-UNIVERSALK9-M), Version 15.2(4)E3, RELEASE SOFTWARE (fc2)
Technical Support: (c) 1986-2016 by Cisco Systems, Inc.
Compiled Sun 06-Nov-16 22:01 by prod_rel_teamROM: Bootstrap program is C3750E boot loader
BOOTLDR: C3750E Boot Loader (C3750X-HBOOT-M) Version 12.2(53r)SE2, RELEASE SOFTWARE (fc1)Switch uptime is 17 minutes
System returned to ROM by power-on
System image file is reload reason: power-onThis product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.A summary of U.S. laws governing Cisco cryptographic products may be found you require further assistance please contact us by sending email to
(email)License Level: ipservices
License Type: Permanent
Next reload license Level: ipservicescisco WS-C3750X-24 (PowerPC405) processor (revision A0) with 262144K bytes of memory.
Processor board ID FDO1620R1MN
Last reset from power-on
1 Virtual Ethernet interface
1 FastEthernet interface
28 Gigabit Ethernet interfaces
2 Ten Gigabit Ethernet interfaces
The password-recovery mechanism is enabled.512K bytes of flash-simulated non-volatile configuration memory.
Base ethernet MAC Address : A4:93:4C:B3:68:00
Motherboard assembly number : 73-12530-05
Motherboard serial number : FDO16200YAS
Model revision number : A0
Motherboard revision number : C0
Model number : WS-C3750X-24T-S
Daughterboard assembly number : 800-32727-01
Daughterboard serial number : FDO1620009Z
System serial number : FDO1620R1MN
Top Assembly Part Number : 800-31327-02
Top Assembly Revision Number : E0
Version ID : V02
CLEI Code Number : COMJV00ARB
Hardware Board Revision Number : 0x03
Switch Ports Model SW Version SW Image
------ ----- ----- ---------- ----------
* 1 30 WS-C3750X-24 15.2(4)E3 C3750E-UNIVERSALK9-M
Configuration register is 0xF
