Cisco Catalyst C9200L-48PXG-4X-E POE 4x10G 48-Port PoE+ Switch 9200L Series For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

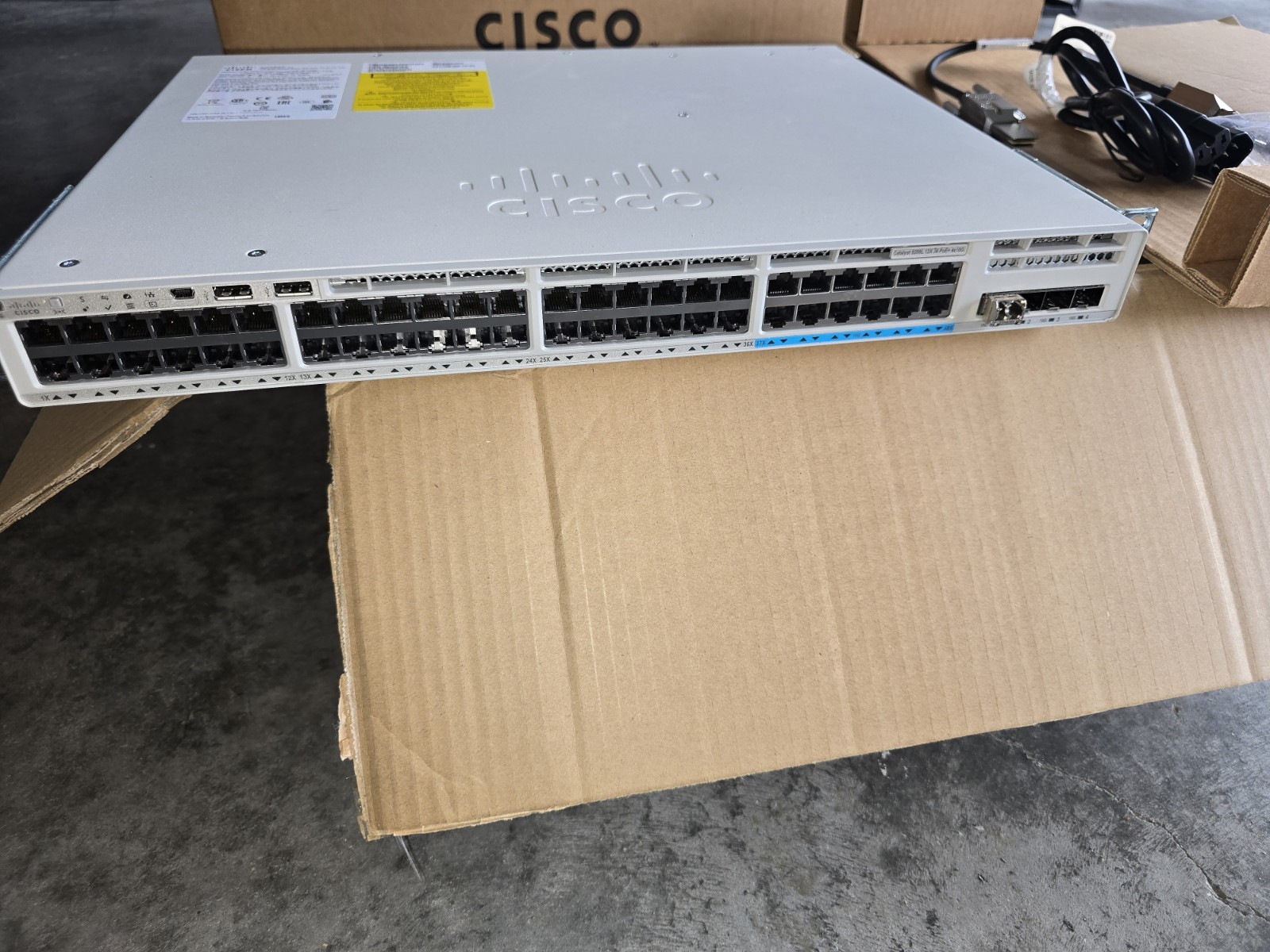

Cisco Catalyst C9200L-48PXG-4X-E POE 4x10G 48-Port PoE+ Switch 9200L Series

Price: US $3999.99

Office Closure. Used but in Excellent working and physical condition.
IMPORTANT:It is your responsibly to factory resetand configure this Item.
What's in the Box:
1 Cisco Catalyst C9200L-48PXG-4X-E (Complete Unit)1 Power Supply cord1 Console cable1 Rack Mount Kit (Ears installed already)Everything you see in the pictures (This is exact unit and box you will receive)
Description:
The Cisco Catalyst C9200L-48PXG-4X-E is a 48-port managed Layer 3 switch that features a mix of Multigigabit and standard Gigabit Ethernet ports, and is pre-licensed with Network Essentials.
Port Configuration and Connectivity

Total Ports: 48 downlink ports and 4 fixed uplink ports.
Downlink Breakdown: 12 ports supportMultigigabit (mGig)speeds (up to 10G) and 36 ports support standard 1G Ethernet.
Uplink Ports: 4 fixed10G SFP+uplinks.
Console/Management: Includes one RJ-45 console port, one USB-C console port, and one dedicated RJ-45 management (LAN) port.

The Cisco Catalyst C9200L-48PXG-4X-E features a total of 48 downlink ports, 4 fixed uplink ports, and several dedicated management and expansion interfaces.
Downlink Network PortsThe 48 network ports are divided by speed and capability, all supportingPoE+ (Power over Ethernet Plus)

12 Multigigabit (mGig) Ports: These ports support auto-negotiating speeds of100M, 1G, 2.5G, 5G, and 10G.
36 Gigabit Ethernet Ports: Standard10/100/1000 MbpsRJ-45 copper ports.

Uplink and Stacking Ports

4 Uplink Ports: These are fixed10 Gigabit SFP+slots for high-speed fiber or copper connections to the network core.
Stacking Ports: Located on the rear, these supportStackWise-80technology when using an optional stacking kit (C9200L-STACK-KIT), providing up to80 Gbpsof stacking bandwidth.

Management and Configuration PortsThe switch includes multiple interfaces for local and remote management:

1 RJ-45 Console Port: For traditional serial CLI management.
1 USB-C Console Port: For modern serial connectivity.
1 RJ-45 Management Port: A dedicated 10/100/1000 Ethernet port for out-of-band management.
USB Type A Ports: Used for external storage or Bluetooth dongles for wireless management.

Power Supply Slots

2 Power Supply Slots: The unit typically comes with one1000W AC power supply(PWR-C5-1KWAC) and has a second slot for an optional redundant power supply to increase the total PoE budget to1440W.

Power and PerformancePoE Budget: Default power budget of740W, which can be expanded to a maximum of1440Wwith a second power supply.

Switching Capacity: According to router-switch.com, the switching capacity is392 Gbps.
Forwarding Rate: 291.66 Mpps (million packets per second).
Stacking: SupportsStackWise-80technology, allowing for up to 80 Gbps of stacking bandwidth with a maximum of 8 switches per stack.
Memory: Equipped with2 GB DRAMand4 GB Flash memory.

Software and Security

License Level:Network Essentials(Cisco IOS XE), which covers core switching and basic Layer 3 routing.
Routing Protocols: Supports static routing, OSPF, RIP, and EIGRP stub.
Security Features: Includes128-bit AES MACsec encryption, Cisco TrustSec, and advanced segmentation for network protection.

Physical and Environmental
