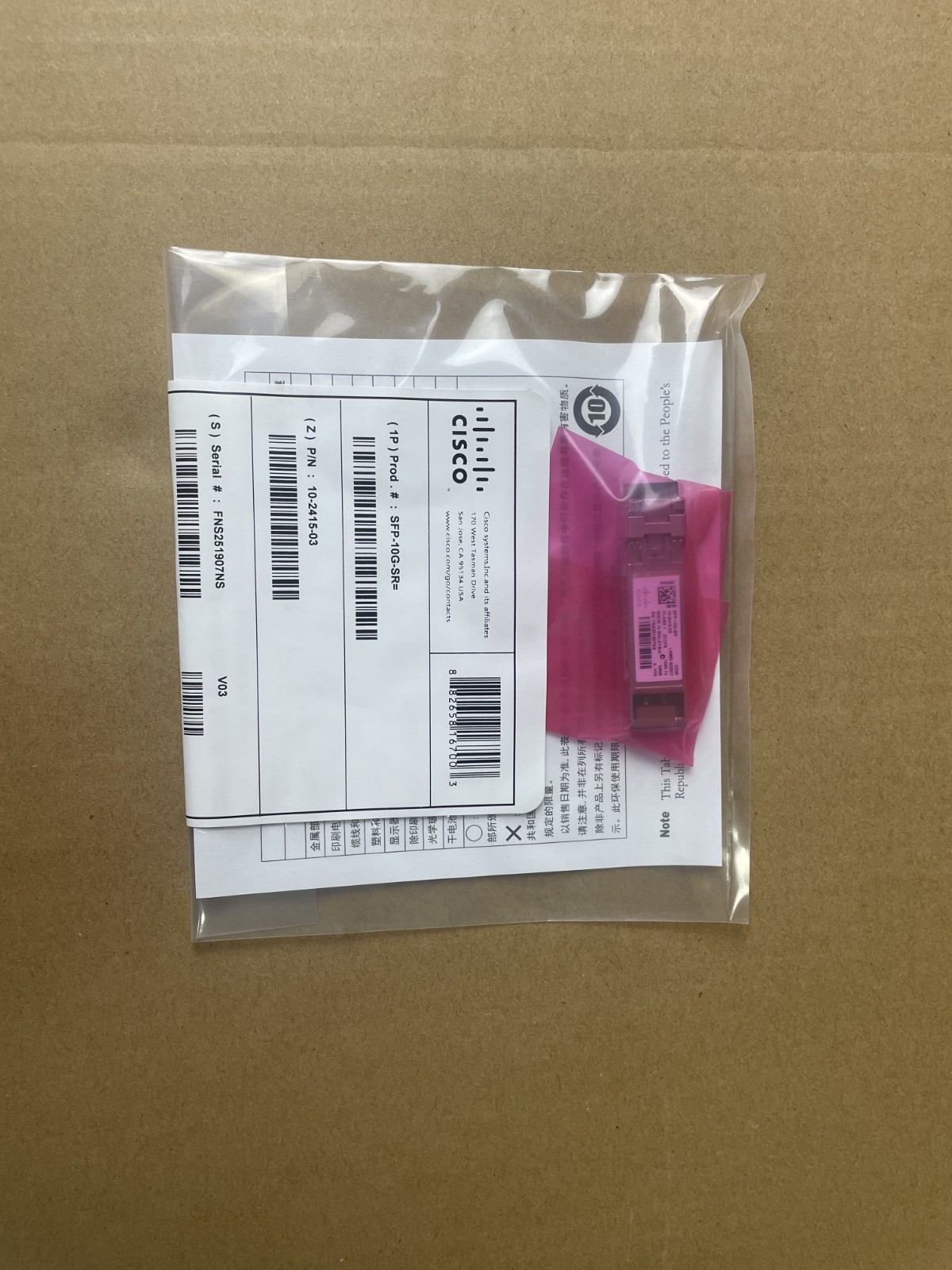

The Cisco SFP-10G-SR is a small form-factor pluggable plus (SFP+) transceiver module, primarily created for short-distance 10 Gigabit Ethernet communication. It is extensively utilized in data centers and enterprise networks. The following presents a comprehensive overview of this module:Core Technical ParametersForm Factor: It adopts the SFP+ standard, featuring compact dimensions of 56.5mm × 13.4mm × 8.5mm and a lightweight design of merely 75g. This compact size enables high-density deployment within network devices.Transmission Rate: It can achieve a maximum data transfer rate of 10.3125Gbps, which fully complies with the 10GBASE-SR standard and is capable of meeting the requirements of high-speed data transmission.Wavelength: Both the transmission and reception wavelengths are 850nm, and it employs a vertical-cavity surface-emitting laser (VCSEL) as the light source.Transmission Distance: The transmission distance varies depending on the type of multimode fiber used. When paired with OM3 multimode fiber, it can reach up to 300 meters, and with OM4 multimode fiber, the distance can be extended to 400 meters. However, it should be noted that this module is not compatible with single-mode fiber.Interface Type: It is equipped with a duplex LC interface, which is in line with common optical fiber connection standards and facilitates convenient connection and maintenance work.Operating Voltage and Power Consumption: The module operates at a voltage of 3.3V and has a maximum power consumption of only 1W. This low-power characteristic is highly suitable for large-scale deployment in data centers.Operating Temperature: Commercial-grade modules can operate within the temperature range of 0℃ to 70℃. For harsh industrial environments, there are also industrial-grade versions available that can withstand temperatures ranging from -40℃ to 85℃.Key FeaturesHot-Swappable Functionality: The module supports hot swapping, allowing for installation and removal without shutting down the network device. This significantly reduces network downtime and simplifies maintenance tasks.Digital Diagnostic Monitoring (DDM/DOM): Through the DDM/DOM function, network administrators can monitor critical parameters of the module in real time, including optical power, operating temperature, and supply voltage. This enables timely identification of potential faults and facilitates proactive maintenance.Broad Compatibility: It is fully compatible with a wide range of Cisco network devices, such as switches and routers. Additionally, it complies with industry standards including IEEE 802.3ae, SFF-8431, and SFF-8472, ensuring seamless interoperability with other standard-compliant devices.Optical Interoperability: It can achieve optical interoperability with 10GBASE-XENPAK, X2, and XFP interfaces on the same link, providing flexibility in network upgrades and expansion.Cisco Quality Assurance: The module is equipped with the Cisco Quality Identification (ID) feature. This enables Cisco devices to verify whether the module has undergone official certification and testing, thereby ensuring network stability and security.Typical Application ScenariosData Center Interconnections: It is suitable for short-distance connections between servers, switches, and storage devices within data centers, effectively supporting high-bandwidth applications such as virtualization and cloud computing.Enterprise Wiring Closets: It can be used for high-speed data transmission in enterprise wiring closets, meeting the requirements of internal network backbones and access layers.Cost-Effective Short-Distance Transmission: When compared with single-mode fiber modules like the SFP-10G-LR, the SFP-10G-SR, when used in conjunction with multimode fiber, offers a more economical solution for short-distance (within 400 meters) 10G network deployments.Notes for UseFiber Type Compatibility: Being specifically designed for multimode fiber, it is incompatible with single-mode fiber. If long-distance transmission (exceeding 400 meters) is necessary, single-mode modules such as the SFP-10G-LR should be selected instead.Environmental Adaptability: The commercial-grade version is suitable for standard indoor environments. For outdoor or industrial settings with extreme temperatures, the industrial-grade version should be chosen.Power Budget Considerations: The module has a receiving sensitivity ranging from -9.9dBm to -1dBm and a power budget of 3.8dB. It is essential to ensure that the optical power attenuation of the fiber link falls within the acceptable range.
