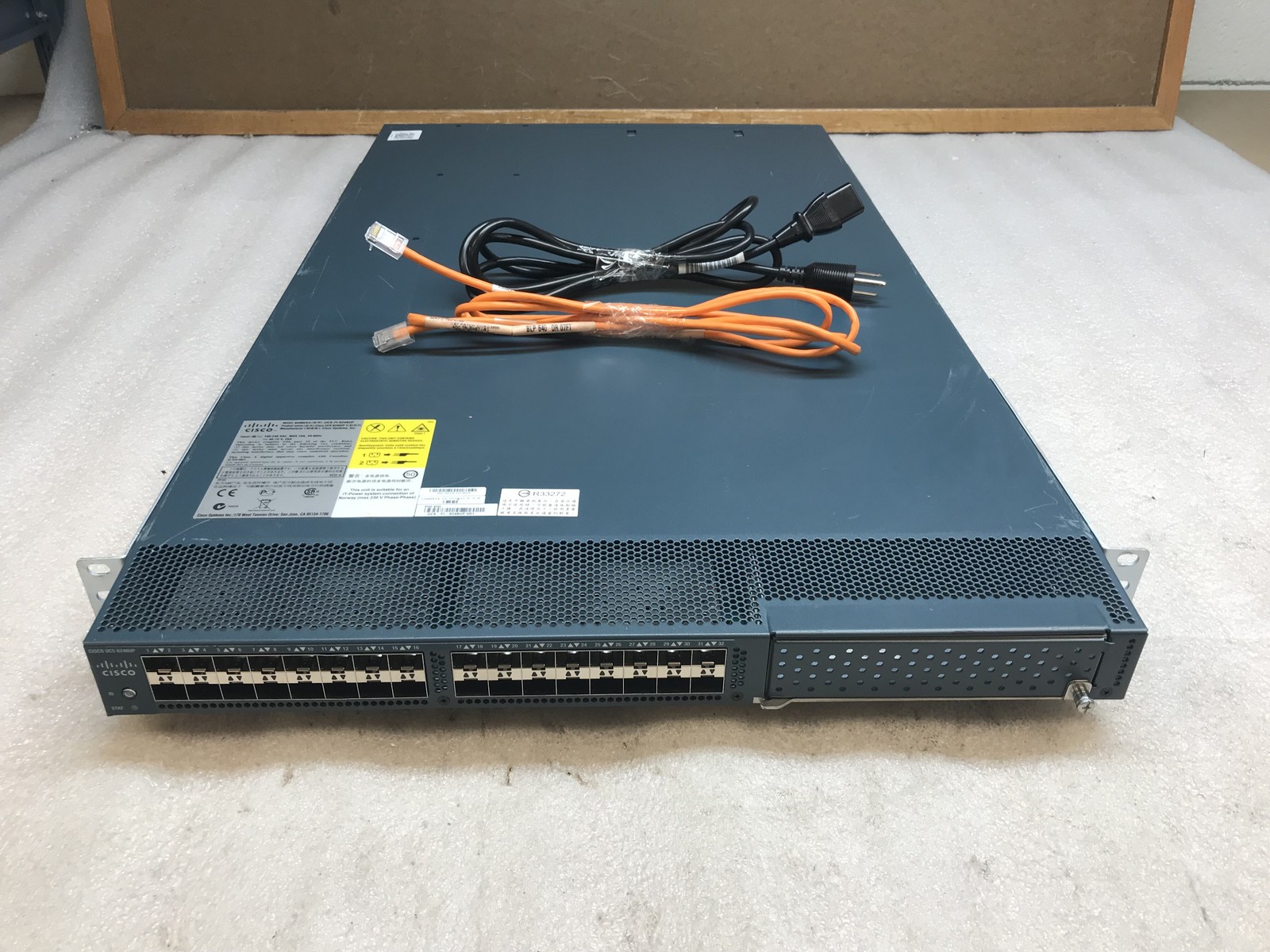

Listing Grid template example Product Photo Description Cisco UCS-FI-6248UP Fabric Interconnect - Tested / Factory Reset Cisco UCS-FI-6248UP Fabric Interconnect - Tested / Factory Reset
The Cisco UCS-FI-6248UP Fabric Interconnect is a high-performance, managed Layer 3 switch designed for unified computing system environments. It offers robust connectivity and management capabilities tailored for data center networking needs, delivering reliable 10G speeds across multiple ports.
Specifications
- 32 Ports for extensive connectivity
- 10G Port Speed for high-speed data transfer
- Managed device with advanced network management features
- Layer 3 switching capabilities for routing functions
- 32 SFP Ports for fiber optic connections
- No PoE (Power over Ethernet) support
- Non-stackable design
Key Features
- Supports unified fabric connectivity integrating LAN and SAN environments
- Redundant power supplies for enhanced reliability
- Efficient network traffic management and low latency performance
- Comprehensive security and management tools for enterprise environments
- Model: UCS-FI-6248UP
- Device Type: Fabric Interconnect
- Layer: Unified Fabric (Ethernet / FCoE / Fibre Channel)
- Hardware Revision: V01
- Software: Cisco UCS Manager 5.0(3)N2(2.1s)
- License / Feature Set: Cisco UCS Manager embedded management
- Fixed Unified Ports: 32x 1/10G SFP+ (Ethernet/FCoE; Fibre Channel-capable unified ports by configuration)
- Expansion: 1x expansion slot supporting up to 16 additional unified ports (48 ports maximum)
- Installed UCS Module(s): UCS-FI-DL2
- Switching Capacity: Up to 960 Gbps
- Fabric ID: A
- Device Class: Cisco UCS 6200 Series Fabric Interconnect
- StackWise Stackable: No (UCS Fabric Interconnect clustering is a separate technology)
- Installed Power Supply Model(s): UCS-PSU-6248UP-AC S/N ART1543X11W, UCS-PSU-6248UP-AC S/N ART1536X13Q
Important Notes
- Device shows some scratches and blemishes from prior use
Included
- Power Cable
- Rack Ears
- Ethernet Cable
- 2x UCS-PSU-6248UP-AC Power Supplies
Not Included
- User manual
- Original packaging
Specifications Functional Condition:
F3 - Key Functions Working
Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.
Cosmetic Condition:
C4 - Used Good
Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.
Data Sanitization:
S3 - Data Clear
Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22
Port Count
48 Port Speed
10G Management Type
Managed Poe Support
None Poe Budget
NO Stackable
NO Layer
Layer 3 Sfp Ports
32 Function Tests Powers On
Passed Management Interface Access
Passed Port Connectivity
Passed Link Lights
Passed Factory Reset
Passed Shipping
