Cisco WS-C2960XR-48TD-I 48-Port GbE 2x10G SFP+ 2x SFP+ Stack IP Lite
Click Thumbnails to Enlarge Specifications Server TypeLot QuantityWarranty30 daysBrandCISCOManufacturer Part NumberWS-C2960XR-48TD-IForm Factor1U RackmountFormBracket SizeNetwork Interface48x 10/100/1000 Ethernet, 2x 10GbE SFP+InterfaceWattsChassisBatteryAC AdapterMotherboard SupportExpansion SlotsDimms per ChannelSocketProcessorDual Core 600 MHzProcessors InstalledDual Core 600 MHzProcessor Speed600MHzSpeed10/100/1000 Mbps EthernetProcessor Max Speed (Turbo Boost)CPU BrandProcessor CoresNumber of ThreadsHyper ThreadingCache Per ProcessorProcessor Main FeaturesCPU InstalledCompatible RAMFSBCPU CacheCPU Cooling SystemCPU Cooling System BrandCPU Cooling System DetailsNumber of FansFan ModelFan SupportFan SpeedFan AirflowFan NoiseMemory (RAM)Memory SizeRAM DetailsRAM TypeRAM TypeRAM SpeedRam SpeedMaximum RAMRAM BrandRAM/RankRankModule TypeModule QTYECC/FFSpeed & ECCRAM Installed1.8" Drive Bays2.5" Drive Bays3.5" Drive BaysM.2 SlotsStorageHDDHDD InstalledSSDSSD InstalledStorage TypeStorage CapacityHard Disk Rotational SpeedRead SpeedStorage CacheSector SizeHard Drive TraysDrive BlanksIn trayGraphics CardGraphics CoprocessorGraphics Card BrandGraphics Card SeriesGraphics Card MemoryGraphics Card Memory TypeGraphics Card Clock SpeedGraphics Card Boost Clock SpeedGraphics Card CUDA CoresGraphics Card Memory Bus WidthGraphics Card InterfaceGraphics Card Video OutputsPower ConnectorsAC 100-240 VACGPU InstalledCacheTransfer RatePower Supply250WPSU TypeModular Hot-Swap RedundantPSU BrandCiscoPSU QTY2xPSU Form FactorHot Swap RedundantPSU Features250W 100-240 VACPSU Installed2x PWR-C2-250WACOperating SystemCisco IOSSoftwareSoftware FeaturesCOABattery InstalledBluetooth InstalledCabling InstalledCamera InstalledMedia Drive InstalledHeatsinks InstalledRAID ControllerRaid InstalledNetwork ControllerRail Kitnot includedBezelOptical DriveSpecial FeaturesPackage ContentsOnboard GPUBluetoothWifi InstalledWLANLAN SpeedCase MaterialColorsDrive BaysMaximum CPUsMax CPU'sNumber of Memory SlotsDIMM SlotsMemory ChannelsI/O SlotsPorts2 SFP+, 48x 10/100/1000,1x RJ-45 ManagementFront USBFront Audio PortsRear USBRear Audio PortsVideo PortsRJ45Power ConsumptionKeyboardMouseMonitorRefresh RateScreen SizeEars Includednot includedFeature SetsIP LiteFixed Uplinks2x 1GbE/10GbE SFP+Total 10/100/1000 Ethernet Ports48Available PoE PowerNoneSwitching Capacity216 GbpsStacking Bandwidth80 GbpsTotal number of MAC addresses32,000Total number of IPv4 routes24,000FNF entries8,000DRAM256 MBFlash128 MBVLAN IDs4096Total switched virtual interfaces (SVIs)256Jumbo frame9216 bytesTotal routed ports per stackNumber of access points per switch/stackNumber of wireless clients per switchTotal number of WLANs per switchWireless bandwidth per switch108 GbpsSupported Aironet access point seriesForwarding Rate130.9 MppsECC/FFScalabilityCountry of OriginPCSP SKUNTK 9920853 Extended Warranty for this listing:Click Here Our other items:Click Here Product Description

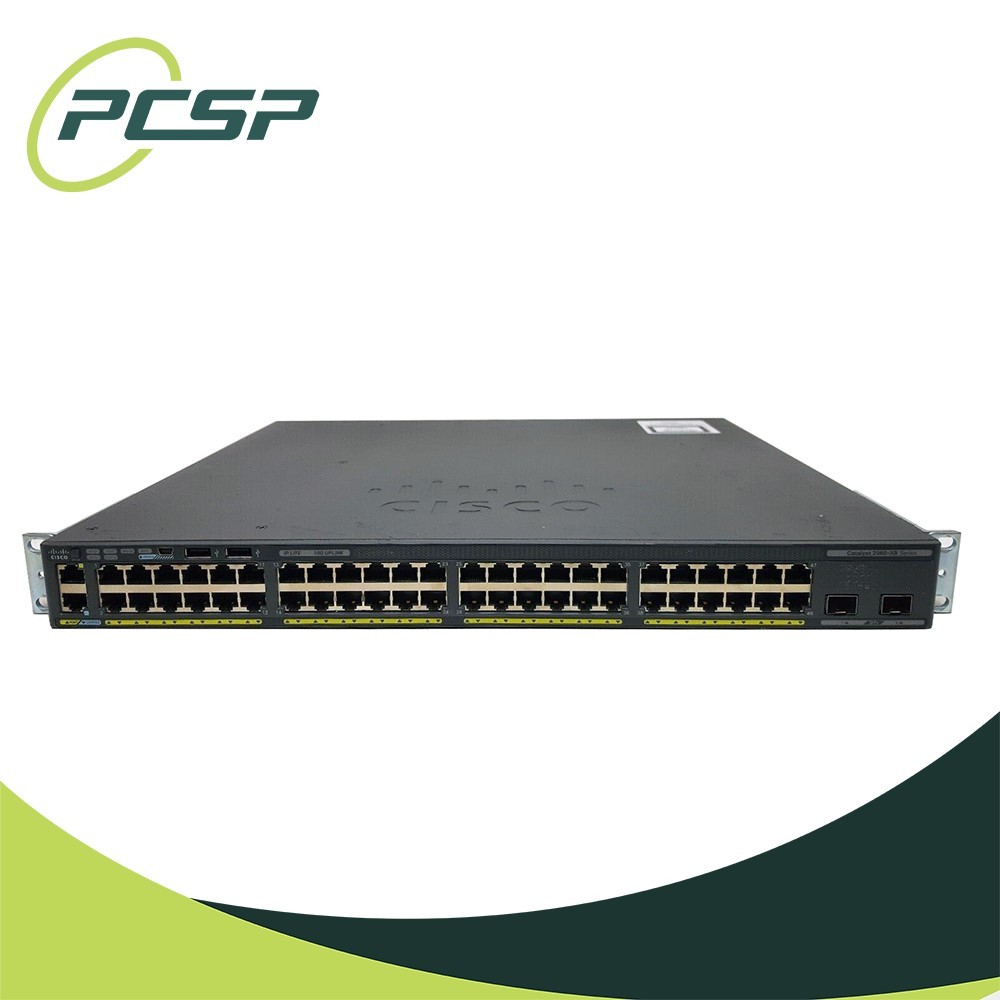

Cisco Catalyst WS-C2960XR-48TD-I 48-Port Gigabit IP Lite Switch

The Cisco Catalyst WS-C2960XR-48TD-I is a stackable 1U enterprise network switch featuring 48 Gigabit Ethernet RJ45 access ports, two 1Gb/10Gb SFP+ uplink ports, Cisco IP Lite software, and Layer 3 routing capabilities.

This configuration also includes two SFP+ fiber stacking ports through the Cisco FlexStack-Extended architecture. These stacking ports are intended for switch-to-switch stacking and are separate from the two front-panel SFP+ network uplink ports.

Manufacturer: Cisco

Series: Catalyst 2960-XR

Model: WS-C2960XR-48TD-I

Access Ports: 48x 10/100/1000BASE-T RJ45

Network Uplinks: 2x SFP+ 1Gb/10Gb

Stack Ports: 2x SFP+ FlexStack-Extended Fiber

Software: Cisco IOS IP Lite

Switching Capacity: 216Gbps

Forwarding Bandwidth: 108Gbps

Forwarding Rate: Up to 130.9Mpps

PoE: No

Form Factor: 1U Rackmount

Network Ports

48x 10/100/1000BASE-T Gigabit Ethernet RJ45 access ports
2x SFP+ network uplink ports
SFP+ uplinks support compatible 10GbE SFP+ connectivity
Compatible 1GbE SFP operation supported on the uplink interfaces
Non-PoE data-only access ports

Stacking

2x SFP+ FlexStack-Extended fiber stacking ports in this configuration
Dedicated stacking interfaces - not standard network uplinks
Supports Cisco Catalyst 2960-XR stacking
Up to 8 compatible Catalyst 2960-XR switches per stack
FlexStack-Extended fiber stacking bandwidth up to 40Gbps
Fiber stacking requires compatible Cisco-supported SFP+ optics and cabling

Performance

216Gbps full-duplex switching bandwidth
108Gbps forwarding bandwidth
Up to 130.9 million packets per second forwarding rate
Up to 1023 active VLANs
4096 available VLAN IDs
9216-byte Ethernet jumbo frame support
9198-byte Layer 3 MTU support

Layer 3 / IP Lite Features

Cisco IOS IP Lite feature set
IPv4 and IPv6 routing support
Static routing
RIPv1 / RIPv2 / RIPng support
OSPF routed-access support
Enhanced Layer 3 capabilities compared with LAN Base models
Hardware-based IP routing

Hardware

APM86392 600MHz dual-core processor architecture
128MB flash memory
USB Type-A storage interface
USB Type-B console interface
RJ45 console interface
Dedicated 10/100 RJ45 management interface

Power

Standard power supply: Cisco PWR-C2-250WAC
250W AC power supply for non-PoE Catalyst 2960-XR models
Two field-replaceable power supply bays
Supports redundant hot-swappable power supplies
Second power supply is optional unless specifically listed
This model does not provide PoE or PoE+

Physical Specifications

1U rackmount form factor
Dimensions: approximately 1.75 x 16.0 x 17.5 inches
Approximate switch weight: 13.3 lb / 6.1 kg
Front and side intake to rear exhaust airflow

Included

1x Cisco Catalyst WS-C2960XR-48TD-I Switch
1x Installed FlexStack-Extended Fiber Module with 2x SFP+ stacking ports

Important Notes

Photos are for reference only.
This is a non-PoE switch.
The two front SFP+ ports are network uplink ports.
The two additional SFP+ ports in the FlexStack-Extended module are dedicated stacking ports and should not be advertised as four standard network uplinks.
Verify compatibility before purchase.
