Hope you have a good purchasing experience.✅ Bullet 1｜Flagship Power & Form‑Factor
‑18+2+2‑phase power solution with 110A DrMOS, dual 8‑pin EPS CPU power connector, built for extreme overclocking for AMD Ryzen 7000 / 8000 / 9000 series AM5 CPUs. ATX flagship gaming motherboard with full‑coverage Vulcan cyber‑style heatsink armor, integrated backplate and exclusive customizable Vulcan smart hardware display screen七彩虹.✅ Bullet 2｜High‑Frequency DDR5 Overclock
‑Two reinforced DDR5 DIMM slots, max 128GB(2×64GB), support AMD EXPO overclock up to 10400+ MT/s(OC). Optimized 10‑layer low‑loss PCB signal routing, specially tuned for pursuing DDR5 memory overclock performance, dual‑channel memory architectureIT之家.✅ Bullet 3｜Massive High‑Speed Storage
‑5 M.2 slots:3×PCIe 5.0 x4 NVMe M.2 plus 2×PCIe 4.0 x4 NVMe M.2, most M.2 equipped with condensing cooling heatsinks. 4×SATA III 6Gbps ports, support RAID 0/1/5/10. Reinforced PCIe5.0 x16 graphics slot with GPU quick‑release latch for heavy‑duty GPU installation.✅ Bullet 4｜Next‑Gen Network Connectivity
‑On‑board MediaTek Wi‑Fi7 + Bluetooth5.4 module, plus Realtek RTL8126‑CG 5G Ethernet LAN. Ultra‑low‑latency wireless and high‑speed wired network for gaming, content creation and multi‑device connection, high‑gain Wi‑Fi7 antennas included in package七彩虹.✅ Bullet 5｜Premium I/O & Practical Features

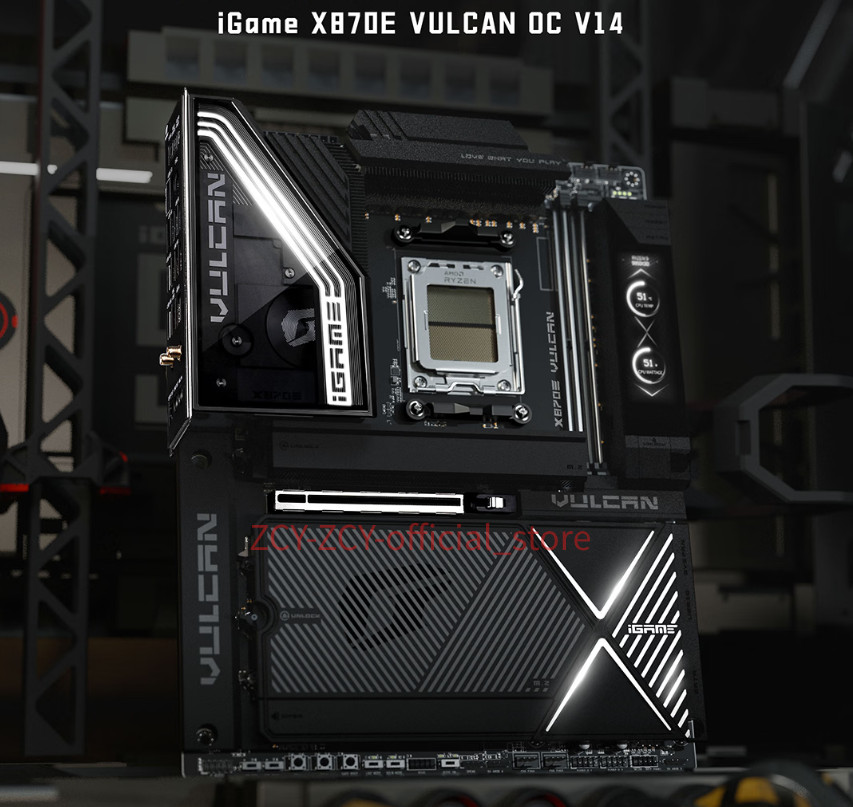

‑Rear I/O: Dual USB4 40Gbps Type‑C with video output, multiple USB3.2 / USB2.0 ports; Front‑panel USB‑C 20Gbps with PD 60W output. Support BIOS Flashback & one‑click Clear CMOS. On‑board power/reset buttons, LN2 overclock switch. 5V ARGB &12V RGB headers, Realtek ALC1220 7.1‑channel HD audio, compatible with iGame Center lighting & screen customization software七彩虹Product imageProduct modeliGame X870E VULCAN OC V14Product rangeiGame seriesChipsetAMD X870ECPU supportAMD Ryzen 7000 series, 8000 series, and 9000 series processors
compatible with the AM5 socket of the motherboard are supportedMemory supportProvides 2 DDR5 memory slots that can support up to 128 GB of memory capacity (up to 64GB capacity in a single slot)
Ryzen™ 9000 Series: Supports up to DDR5-8600+MT/s(OC)
Ryzen™ 8000 Series: Supports up to DDR5-10000+MT/s(OC)
Ryzen™ 7000 Series: Supports up to DDR5-8000+MT/s(OC)Storage interfaceSupports a total of 5 M.2 slots and 4 SATA 6Gb/s HDD interfaces
- M.2_1 slots: supports 2280/22110 spec M.2 SSD (PCIe 5.0/4.0 x4, CPU lanes)
- M.2_2 slots: supports 2280 spec M.2 SSD (PCIe 5.0/4.0 x4, CPU lanes) - M.2_3 slots: supports 2280 spec M.2 SSD (PCIe 5.0/4.0 x4, CPU lanes)
-M.2_4 slot: supports 2280 gauge M.2 SSD (PCIe 4.0 x4, chipset lane)
-M.2_5 slot: supports 2280 spec M.2 SSD (PCIe 4.0 x4, chipset lane)
(*PCIe 5.0 support depends on the CPU paired with the motherboard)
(*When M.2_2 or M.2_3 slots are connected to the device, the PCIe 5.0 x16 slot will operate in x8 mode row)
supports creating RAID 0, RAID 1, RAID 5, RAID 10 disk arrays
with M.2 NVMe hard drive devices Ryzen 9000 series: RAID 0/1/5/10
Ryzen 8000 series: RAID 0/1
Ryzen 7000 series: RAID 0/1/10Extension interfaceRear I/O ports:
- 2 USB 2.0 ports
- 4 USB 3.2 Gen 1 5Gbps Type-A ports
- 4 USB 3.2 Gen 2 10Gbps Type-A ports
- 2 USB4 40Gbps Type-C ports (supports video output up to 4K 60Hz resolution)
- 1 PS/2 port
- 1 5G network interface
- 2 Wi-Fi 7 antenna portsExpansion slots1 PCIe 5.0 x16 slot (supports x16 mode or x 8+4+4 mode)
1 PCIe x16 slot (supports PCIe 4.0 x4 format)
(*PCIe 5.0 x16 slot shares bandwidth with M.2_2 or M.2_3 slots, PCIe 5.0 x16 slots will run in x8 mode when M.2_2 or M.2_3 slots are connected to the device)System BIOS256M UEFI, support for multiple Chinese languagesPower managementSupport S3, S4, network S5 wake-up, support scheduled boot, incoming call bootHardware monitoringCPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, system temperature monitoring, and voltage monitoring of each groupOn-board network cardRTL8126-CG 5Gbit NIC Card, MT7927 WiFi 7 Wireless CARD, Bluetooth 5.4
- Wi-Fi capabilities may vary by operating system.
- For Windows 11, Wi-Fi 7 will require 24H2 or later to support full functionality, and Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
- For Windows 10, please note that there are no drivers available, please refer to the Wi-Fi chipset vendor's website for details.
- Wi-Fi 6GHz band and bandwidth regulations may vary by country.Onboard sound cardRealtek ALC1220 Hi-Fi Decoding Chip + ES9219Q, AMP, supports 7.1 channelsMotherboard specificationsATX Profile
305mm x 245mmOther features:Function Keys/Controllers:
- 1 Power On Button
- 1 Restart Button
- 1 Retry Button
- 2 BLCK Buttons
- 1 Safe Start Button
- 2 RGB Lighting Controllers
- 1 LN2 Mode Controller
- 1 Slow Controller
- 1 BIOS Switching Controller
