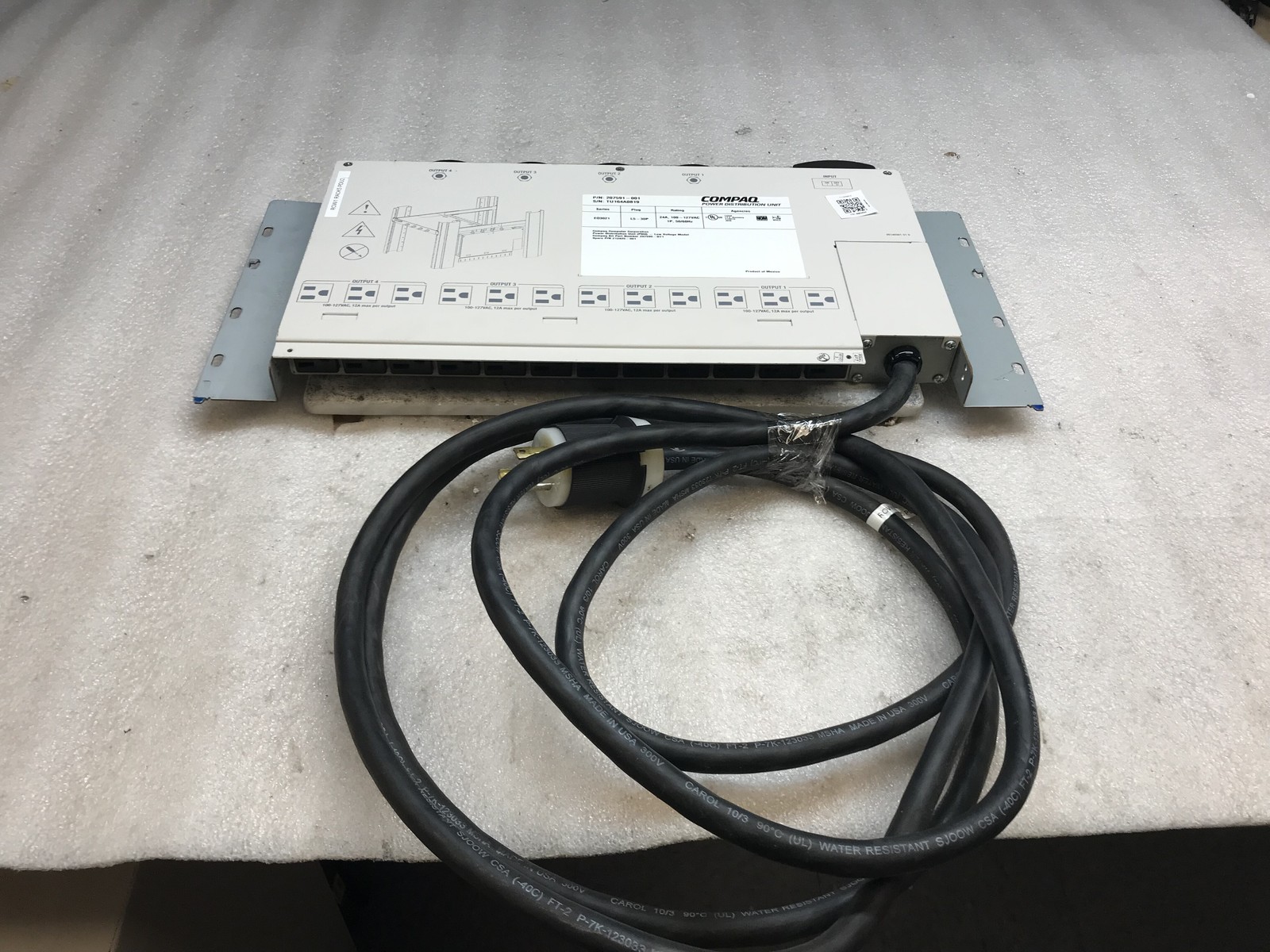

Listing Grid template example Product Photo Description Compaq 207591-001 EO3021 24A 100-127V 12-Outlet PDU L5-30P - Tested Compaq 207591-001 EO3021 24A 100-127V 12-Outlet PDU L5-30P - Tested

The Compaq 207591-001 EO3021 Power Distribution Unit is a heavy-duty rack PDU designed for server, networking, and data center equipment. Featuring a 24A 100-127VAC input, NEMA L5-30P power connection, and 12 standard NEMA 5-15R outlets, it provides reliable power distribution for multiple rack-mounted Compaq

Part Number: 207591-001

Kit / Option Number: 207590-D71

Regulatory Model: EO3021

Type: Low-Voltage Rack Power Distribution Unit

Input Voltage: 100-127VAC

Input Current: 24A

Frequency: 50/60Hz

Input Plug: NEMA L5-30P

Output Receptacles: 12 x NEMA 5-15R

Circuit Protection: 4 x 15A circuit breakers

Mounting Configuration: 0U or 1U rack mounting

Designed for server, networking, and other rack-mounted IT equipment

HPE's original specifications identify the low-voltage model as 24A with 12 NEMA 5-15R receptacles, four 15A circuit breakers, and 0U/1U mounting capability.

Key Features

• Heavy-duty 24A power distribution
• 12 standard 120V-style NEMA 5-15R outlets
• Locking NEMA L5-30P input plug
• Four independently protected outlet groups
• Flexible 0U or 1U rack installation
• Designed for enterprise server and networking environments
• Tested and confirmed operational

Important Notes

• Scratches, scuffs, and cosmetic blemishes are present on the housing from normal previous use
• Requires a compatible NEMA L5-30R power source

Included

• Compaq EO3021 Power Distribution Unit
• Attached NEMA L5-30P Power Cable

Not Included

• Rack Mounting Hardware
• Additional Power Cables
• User Manual

Specifications Functional Condition:
F3 - Key Functions Working

Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.

Cosmetic Condition:
C4 - Used Good

Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.

Data Sanitization:
S2 - Non-Data

Device has been assessed as a device that does not contain data, or data has been physically removed.

Mpn
207591-001 EO302 Function Tests Powers On
Passed Physical Inspection
Passed Functions
Passed Buttons
Passed Shipping
