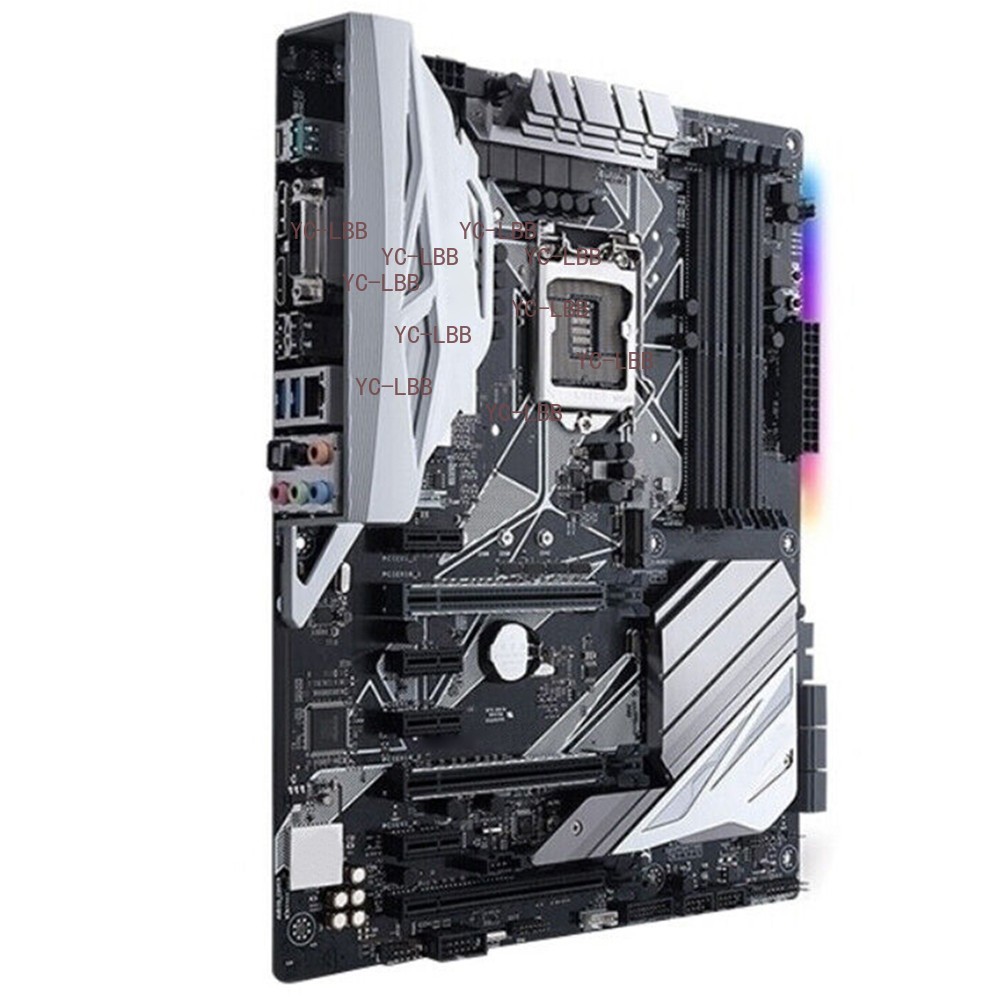

Asus PRIME Z370-A LGA 1151 USB3.1 ATX DDR4 DIMM HDMI Intel Z370 Motherboard

Description:

CPU

Supports Intel® Socket 1151 9th/8th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm processors

Supports Intel® Turbo Boost 2.0 Technology

Chipset

Support for Intel® Z370

RAM

4 x DIMM, support up to 64GB, DDR4 MHz Non-ECC, Un-buffered Memory

Supports dual-channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) technology

* Whether to support larger memory frequency depends on the processor.

Graphical display

Integrated Graphics - Supports Intel® HD Integrated Graphics

Support Multi-VGA output: HDMI/DVI-D/DisplayPort interface

- Supports DisplayPort: Display resolution up to 4096 x 2304 @ 60 Hz

- HDMI 1.4b support: Display resolution up to 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

- Supports DVI-D output: Display resolution up to 1920 x 1200 @ 60 Hz

Shared video memory up to: 1024 MB

Supports up to 3 independent monitors

DP 1.2 compatible streaming, support 3 DP 1.2 monitors, daisy chain display

Multiple Graphic Display Technology

Supports NVIDIA® 2-Way SLI™ Technology

Supports AMD 3-Way CrossFireX™ Technology

Expansion slot

2 x PCIe 3.0/2.0 x16 expansion card slots (x16 or dual x8) *

1 x PCIe 3.0/2.0 x16 expansion card slot (max x4 mode)

4 x PCIe 3.0/2.0 x1 expansion card slots

* For 2 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_2 slot to enable this card in BIOS settings.

** For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot to enable this card under BIOS settings.

Storage function (subject to shipment)

1 x M.2 Socket 3 slot, , support M key, 2242/2260/2280 type storage device (SATA mode & X4 PCIE mode) *1

1 x M.2 Socket 3 slot, , supports M key, 2242/2260/2280 type storage device (only in PCIE mode)*2

6 x SATA 6Gb/s connectors, grey

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology

Supports Intel® Smart Response Technology

Intel® Optane™ Memory Technology

Sound effect

Realtek® S1220A 8-channel high-definition audio codec with Bel Canto 3

- Support: Audio interface detection (Jack-detection), Multi-source independent output (Multi-Streaming) technology, Front panel microphone audio connection port conversion (Jack-Retasking)

- Front and rear headphone output impedance sensing

- High quality 120 dB stereo playback output and 113 dB SNR recording input (Line-in)

- Internal amp enhances the sound quality of headphones and speakers

- Supports playback up to 32-Bit/192kHz *3

Audio function:

- DTS Connect

- DTS Headphone:X

- Audio shielding technology: high-precision analog/digital separation does not interfere with each other

- Channel layered isolation design: left and right channel layered wiring to bring better audio signal quality

- High Quality Japanese Audio Capacitor: Allows you to enjoy clear and high fidelity sound.

- depop noise reduction circuit: reduce the instantaneous pop caused by startup

- EMI shield prevents electromagnetic interference and protects sound quality

- Pre-rectification chip: Reduce power input noise and make performance consistent.

- Front Panel Audio Connector (AAFP)

The left and right channels are independently wired, and both sides can output the same quality sound.

USB：

ASMedia® USB 3.1 Gen 2 Controller:

1 x USB 3.1 Gen 2 port (1 @ rear, blue-green, Type-A, supports 3A power output)

ASMedia® USB 3.1 Gen 2 Controller:

1 x USB 3.1 Gen 2 port (1 @ rear, , USB Type-C, supports 3A power output)

Intel® Z370 Chipset:

6 x USB 3.1 Gen 1 ports (2 @rear, 4 @front)

Intel® Z370 Chipset:

6 x USB 2.0 connection ports (2 @rear, 4 @front)

Backplane I/O Connectors：

1 x DVI-D interface

1 x DisplayPort interface

1 x HDMI port

1 x LAN (RJ45) port

2 x USB 3.1 Gen 1

2 x USB 2.0 ports

1 x USB 3.1 Gen 2 Type-A,

1 x USB 3.1 Gen 2 USB Type-C

1 x Optical S/PDIF digital audio output interface

5 x audio jacks

Internal I/O Interface：

2 x USB 3.1 Gen 1 ports to expand 4 external USB 3.1 Gen 1 ports (19-pin)

2 x USB 2.0 ports can be extended to 4 external USB 2.0 ports

1 x M.2 Socket 3 slot, support M key, 2242/2260/2280 type storage device (SATA mode & X4 PCIE mode)

1 x M.2 Socket 3 slot, support M key, 2242/2260/2280 type storage device (only in PCIE mode)

1 x Aura RGB strip header

6 x SATA 6Gb/s device connection sockets

1 x CPU fan power socket 1 x 4-pin

2 x Chassis Fan Connectors 2 x 4-pin

1 x CPU optional fan connector 1 x 4-pin

1 x 24-pin EATX motherboard power socket

1 x 8-pin ATX 12V motherboard power socket

1 x Thunderbolt header

1 x Front Panel Audio Interface (AAFP)

1 x System Panel Connector (Q-Connector) (built-in chassis intrusion header)

1 x MemOK! button

1 x EZ XMP switch

1 x Power On Switch

1 x 5-pin EXT_Fan (extension fan) slot

1 x Clear CMOS Jumper

1 x CPU Overvoltage Jumper (CPU_OV)

1 x 14-1 pin TPM connector

1 x Serial Connection Socket (COM)

1 x T_Sensor Interface

1 x AIO PUMP header

2 x 3D mounting screw interface

1 x M.2 fan header

BIOS：

128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multilingual BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 Favorites, History , F12 screenshot, and ASUS DRAM SPD (Serial Presence Detect) memory information

O S：

Windows® 10 64-bit

Dimensions：

ATX; 12.0" x 9.6" (30.5cm x 24.4cm)
