Custom Label Printer D4 102 USB Black (P/N: 911MK010100233)- Brand New, Sealed For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

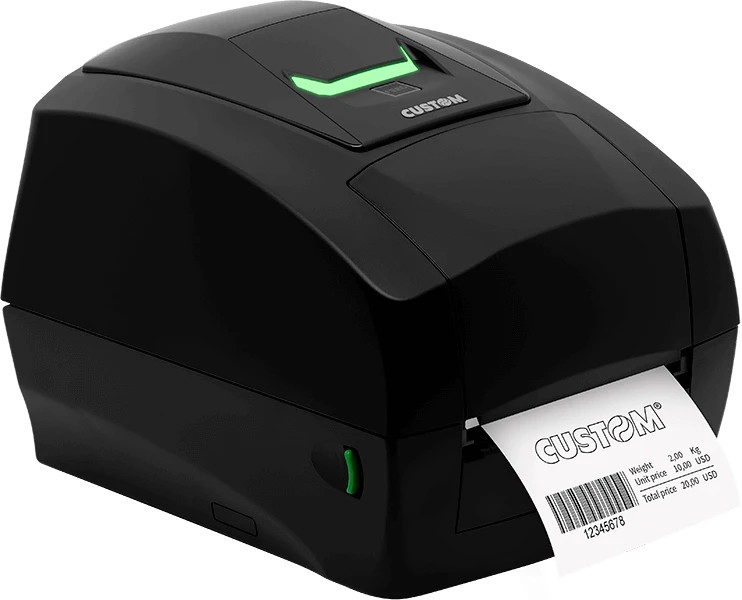

Custom Label Printer D4 102 USB Black (P/N: 911MK010100233)- Brand New, Sealed

Price: US $147.99

CUSTOM D4 102 / D4 102 ETH – 4" Desktop Label Printer (203 dpi)

Compact, industrial-grade desktop label printer with multi-interface options, fast 5 ips print speed, and movable sensors for versatile media handling.

Highlights

Printing methods: Direct Thermal & Thermal Transfer
Resolution: 203 dpi · Speed: up to 5 ips
Max print width: 104 mm (4.09") · Max print length: 3810 mm
Moveable reflective sensor + cover-open & ribbon sensors
64 MB SDRAM & 128 MB Flash
Control panel: 1 multi-function key, 6 status LEDs
Interfaces:
- D4 102 (USB): USB; Ethernet 10/100 (optional module)
- D4 102 ETH (USB + Ethernet): USB + Ethernet 10/100 on board
Supports extensive 1D/2D barcodes incl. QR, PDF417, Data Matrix, MaxiCode
Windows 7/8/10 drivers (32/64-bit)

Specifications Processor 32-bit RISC Emulations / Languages EPL; Emulations: PEPL, PDPL, PZPL Print Method Direct Thermal / Thermal Transfer Resolution 203 dpi Speed Up to 5 ips Max Print Width 104 mm (4.09") Max Print Length 3810 mm Sensors Moveable reflective (center→left), cover-open, ribbon sensor Memory 64 MB SDRAM; 128 MB Flash Control Panel 1 multi-function key; 6 status LEDs Media (labels) Width: 15–110 mm · Roll Ø: up to 127 mm · Core: 25.4 mm
Thickness: 0.06–0.2 mm · Types: Continuous, die-cut, tag, fan-fold, black mark Ribbon OD: 39 mm · Max length: 100 m · Width: 25.4–110 mm · ID: 12.7 mm
Types: Wax, Wax/Resin, Resin 1D / 2D Barcodes 1D: Code39/93/128 (UCC/EAN modes), Codabar, EAN-8/13 (2&5 add-on), Interleaved 2-of-5 (with check digit & HR), UPC-A/E (+2/+5), UCC/EAN-128, etc.
2D: Data Matrix, MaxiCode, PDF417, QR Code Fonts 5 internal expandable bitmap (alphanumeric) + 2 internal (numeric only); downloadable soft fonts; 0°, 90°, 180°, 270° Drivers Windows 7/8/10 (32-bit & 64-bit) Image Formats PEPL: PCX, direct binary · PDPL: PCX, BMP, HEX Options Peeler kit, Guillotine cutter, Ethernet module (for USB model) Power External adapter — Input: 100–240 V, 1.8 A, 50–60 Hz · Output: 24 V, 2.5 A Environment Operation: 5–45°C; 10–90% RH (non-cond.) · Storage: −20–50°C; 5–95% RH (non-cond.) Dimensions / Weight 263 (L) × 200 (W) × 188 (H) mm · ~2 kg Models / Part Numbers 911MK010100233 — D4 102 USB (Black)
911MK010300J33 — D4 102 ETH + USB (Black) What’s Included
