CyberPower MBP30A5 120 VAC 30A Maintenance Bypass PDU
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

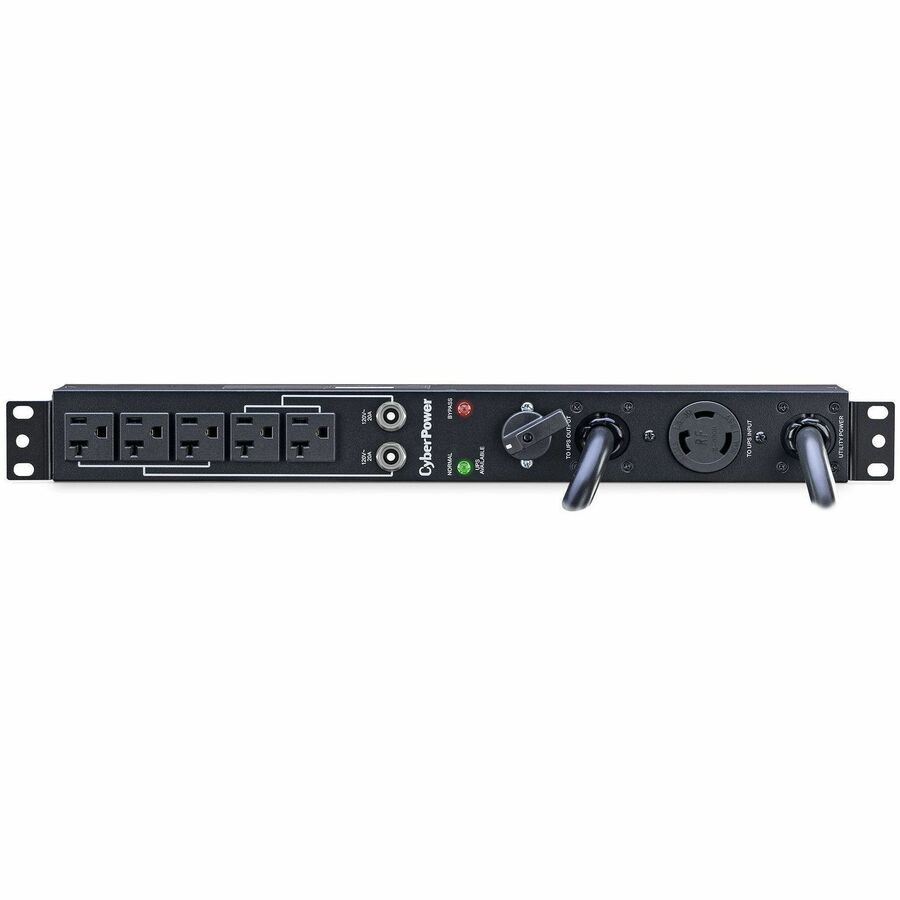

CyberPower MBP30A5 120 VAC 30A Maintenance Bypass PDU
Price: US $464.66
30A 5OL 1U REAR OUTLETS 6 FT CORD 3 YEAR WARRANTY
  • About Us
  • Payment Info
  • Shipping Info
  • Customer Support
  • response
CyberPower MBP30A5 120 VAC 30A Maintenance Bypass PDU Brand: Cyberpower UPC: 0649532616596 Mfr Part #: MBP30A5

General Information

The CyberPower MBP30A5, a 5-outlet (rear), 1U Maintenance Bypass Power Distribution Unit (MBP PDU), provides 100-120 VAC 30A output (derated to 24A) to 5 NEMA 5-20R receptacles. Designed for datacenters and other electrically demanding applications, the MBP30A5 allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance, replacing batteries, or installing a new UPS.

A 6-foot AC cord connects to utility power; a 3.3-foot AC cord connects to the output power of the UPS. The UPS draws input power from the MBP30A5 through a dedicated NEMA L5-30R separate from the outlets for connected devices. When the switch on the front of the MBP30A5 is turned from Normal to Bypass, or from Bypass to Normal, the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active.

Rugged, industrial-grade metal housing protects the MBP30A5. With a 1U form factor, this PDU can be mounted in a standard server rack. Its mounting hardware also enables it to be connected to a UPS for tower configurations. The MBP30A5 is UL and RoHS compliant. A three-year limited warranty covers the PDU for three years and connected equipment for as long as you own the product.

Technical InformationPDU Type:Hot-swappablePhase:Single PhasePlug/Connector Type:NEMA L5-30PPlug/Connector Detail:2 x NEMA L5-30PReceptacle Type:NEMA L5-30RReceptacle Detail:5 x NEMA 5-20R

Power DescriptionInput Voltage:120 V ACInput Voltage Range:100 V AC - 120 V ACOutput Voltage:120 V ACInput Current:30 A

Physical CharacteristicsColor Family:BlackProduct Color:BlackProduct Material:MetalMount Type:Rack-mountableRack Height:1UCord Length:6 ftHeight:2"Width:17"Depth:3"Weight (Approximate):5.90 lb

  • Maintenance Bypass MBP30A5
  • 6-ft. utility cord
  • 3.3-ft. UPS cord
  • 2 x Rackmount Brackets
  • 4 x Flat Head Screws M4X8L
  • 4 x Pan Head Screws M5X12L
  • User Manual
  • Registration Card
    • Additional Information:
  • Physical Dimensions - (WxHxD) (cm) : 43.18 x 5.08 x 7.62 (cm)
  • Physical Dimensions - (WxHxD) (in) : 17 x 2 x 3 (in)
  • Physical Dimensions - (WxHxD) (mm) : 432 x 51 x 76 (mm)
  • Weight (kg) : 2.68
  • Weight (lb) : 5.9
  • Shipping Dimensions - (WxHxD) (cm) : 24.77 x 6.6 x 50.17 (cm)
  • Shipping - Dimensions (WxHxD, in) : 9.75 x 2.6 x 19.75 (in)
  • Shipping - Dimensions (WxHxD, mm) : 247.65 x 66.04 x 501.65 (mm)
  • Shipping - Weight (kg) : 9.3
  • Shipping - Weight (lb) : 20.5
  • Cord Length : 6 ft (1.8 m)
  • Derated Input Current : 24 A
  • Input Plug Type : 2 x NEMA L5-30P
  • Input Voltage Range : 100 VAC - 120 VAC
  • Maximum Input Current : 30A
  • Outlet for UPS Input Power : NEMA L5-30R
  • Plug to UPS Output : NEMA L5-30P
  • Nominal Output Voltage : 120 VAC
  • Outlets - Front : 0
  • Outlets - Rear : 5
  • Outlets - Total : 5
  • Outlet Type COMPUTED : 5 - NEMA 5-20R
  • Overload Protection : None
  • USB Charge Port : No
  • Color : Black
  • Form Factors Supported : 1U Rackmount
  • Material of Construction : Metal
  • Rack Height : 1U
  • UPS Cord Length : 3.3 ft
  • Utility Cord Length : 6 ft
  • Operating Elevation : 0 - 10000 ft (0 - 3048 m)
  • Operating Relative Humidity : 0 - 90 % (non-condensing)
  • Operating Temperature : 32 - 104 °F (0 - 40 °C)
  • Storage Elevation : 0 - 50000 ft (0 - 15239 m)
  • Storage Temperature : -4 - 113 °F (-20 - 45 °C)
  • Environmental : RoHS Compliant
  • Safety : UL60950_1|cUL
  • Extended Warranty Option : WEXT5YR-ACC1A
  • Product Warranty : 3 Year Limited Warranty
    • Certifications & Star:NoCountry of Origin:ChinaEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)
