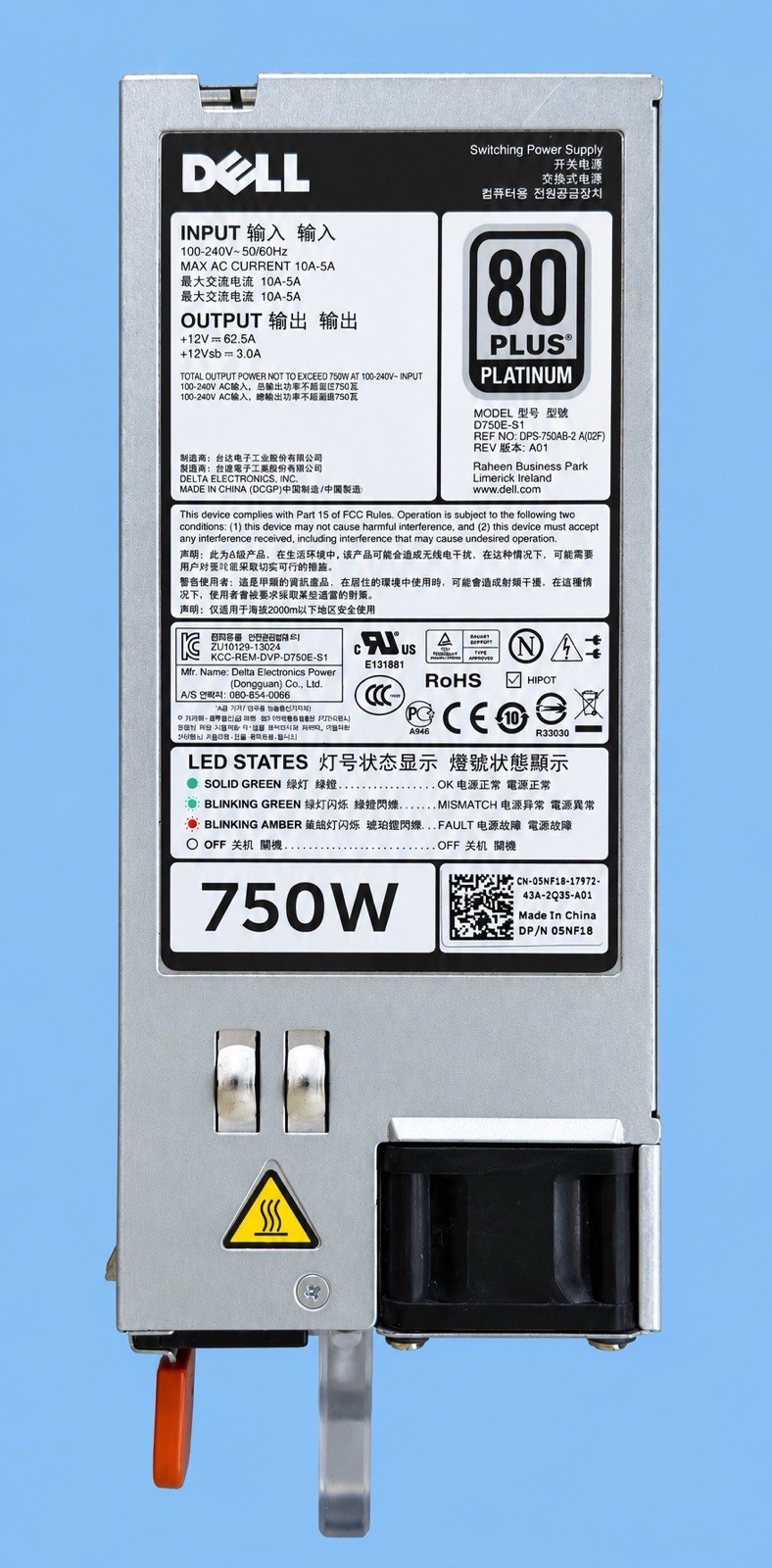

Dell D750E-S1 / Delta DPS-750AB-2 750W Server Power Supply – TESTED

Genuine Dell 750W hot-swappable server power supply manufactured by Delta Electronics.

Dell DP/N: 05NF18

Dell Model: D750E-S1

Delta / Ref. No.: DPS-750AB-2 A(02F)

Revision: A01

Maximum Output: 750W

Efficiency: 80 PLUS Platinum

Input: 100–240VAC, 50/60Hz

Main Output: +12V DC @ 62.5A

Standby Output: +12VSB @ 3.0A

TESTING:

This power supply has been individually bench tested. The unit was successfully powered on and the DC output voltages were checked and found to be functioning normally.

Please note: The power supply was not tested under full rated load, so it is being represented only to the extent of the bench testing described above.

Uses a proprietary server card-edge output connector. Please verify the Dell part number, model number, connector configuration, and compatibility with your equipment before purchasing.

Listing is for ONE (1) power supply. Photos are representative of the units available unless otherwise noted.
