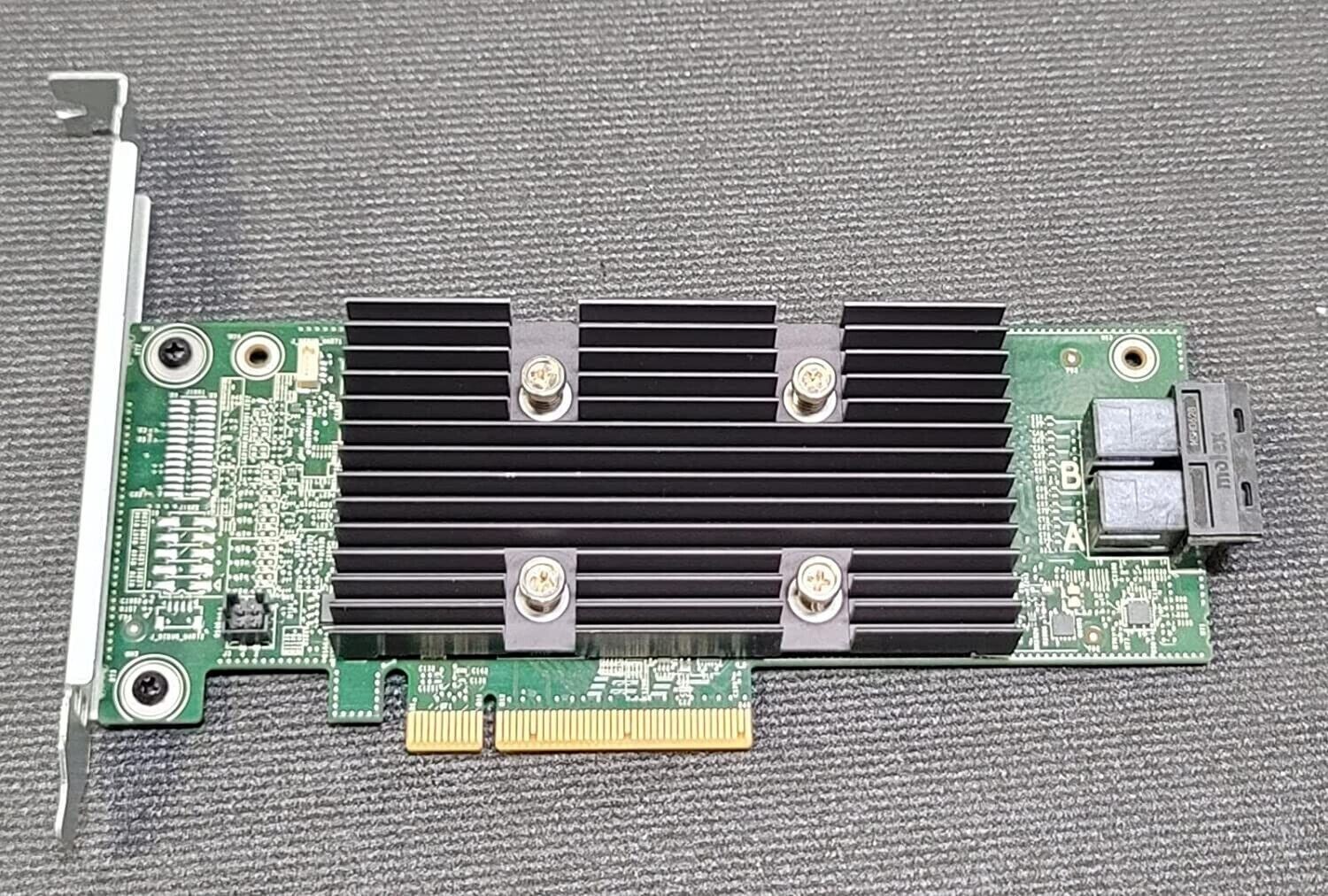

Dell 4Y5H1 H330 12Gbps SAS PCI-E 3.0 with HBA330 P16 IT mode for ZFS TrueNAS unRAID
CLEARANCE SALE WHILE SUPPLIES LAST.
The Dell Perc H330 by itself is a RAID controller. We have flashed the card so that it is in IT (Non-RAID) mode for use with ZFS TrueNAS unRAID. They have been flashed with Dell HBA330 IT (Initiator Target) firmware version P16 (specifically 16.00.11.00). I also flashed the LSI/Avago MPTSAS2 BIOS ROM version 08.37.02.00 and UEFI 18.00.03.00 so that it is easier to access the controller's ROM without booting an OS.These comes with Standard Height bracket. If you need Low Profile bracket, contact us for LP bracket replacement.
- Dell HBA330 IT mode firmware version P16 (16.00.11.00)
- MPTSAS2 BIOS ROM flashed version 08.37.02.00
- MPTSAS2 UEFI ROM flashed version 18.00.03.00
- Original SAS address preserved
These HBA controllers are based on the LSI SAS3008 SAS controller chipset and support PCI-E 3.0 specifications with x8 lanes, providing up to 7880MB/sec bandwidth between this card and your system! The controller has 2 SFF-8643 connectors, each carrying 4x 12Gbps SAS lanes. You will need a compatible cable to connect these to your hard drives or a backplane. For cables, see our SAS cable category.
These cards are fully tested in my Supermicro server running ZFS on Linux (ZoL), but this setup is also ideal for other ZFS setups, TrueNAS, unRAID, Proxmox VE, etc.
