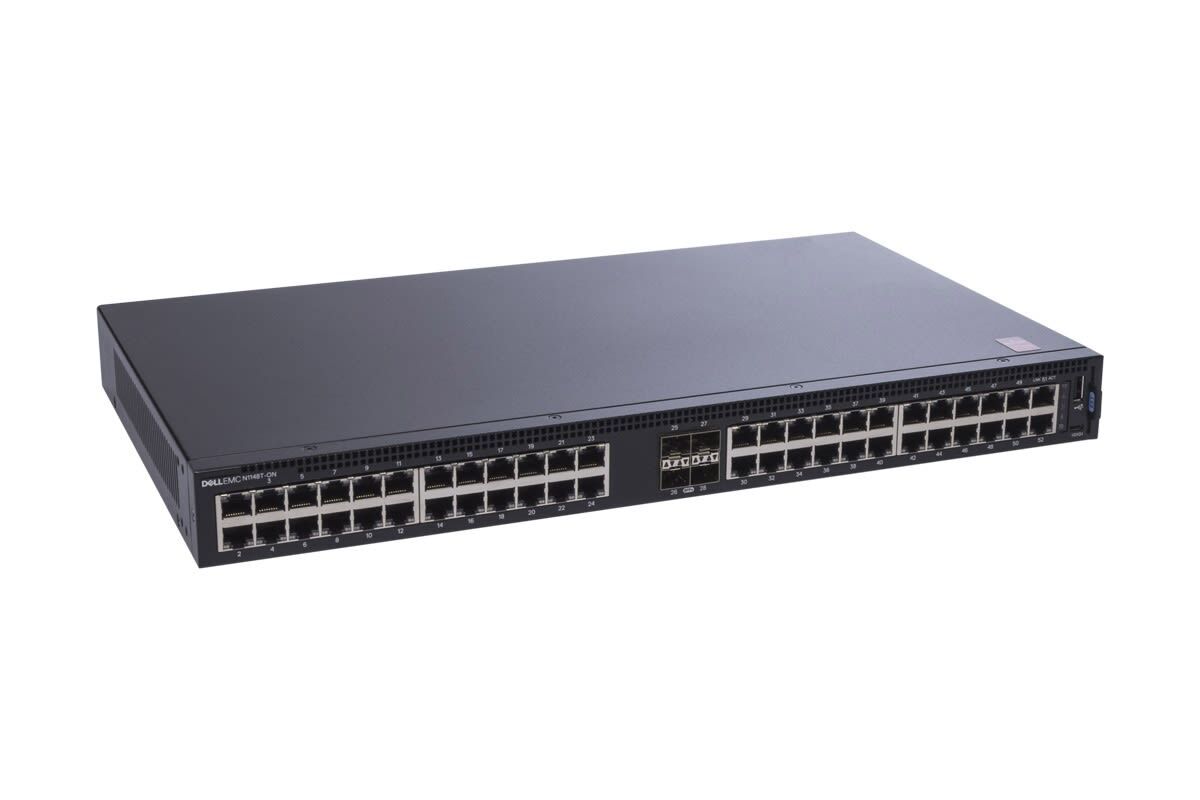

🔌 Dell EMC PowerSwitch N1148P-ON Professional Network Switch - 48 Gigabit Ethernet Ports with PoE+ and 4 10GbE SFP+ Ports 🚀📋 Product Description

Discover the Dell EMC PowerSwitch N1148P-ON, a professional N1100 series network switch designed to deliver exceptional performance and reliability in enterprise environments. This Layer 2 managed switch combines high-density connectivity, advanced Power over Ethernet, and fanless design for quiet, energy-efficient operation.

With his 48 Gigabit Ethernet ports including 24 PoE+ compatible and its 4 SFP+ 10GbE uplink ports, this Dell switch provides an ideal access network solution for connecting workstations, IP phones, surveillance cameras, WiFi access points and other professional networking equipment. Its 176 Gbps switching capacity and 132 Mpps transfer rate ensure smooth performance even in high network load environments.

⚠️ The photos are given for illustration purposes. Only the content of the advertisement is authentic for the exact reference of the product and the accessories included. If in doubt, do not hesitate to contact us.

⚙️ Full Technical EMC PowerSwitch N1148P-ONSeriesDell N1100 SeriesGigabit Ethernet ports48 x 10/100/1000Base-T RJ45 (half/full duplex auto-negotiation)SFP+ ports4 x SFP/SFP+ 1GbE/10GbE (auto-negotiation)PoE/PoE+ ports24 ports out of 48 IEEE 802.3af/at compatiblePoE budget375W (power supply to IP equipment via Ethernet cable)Switching Capacity176 Gbps (maximum throughput)Transfer Rate132 Mpps (million packets per second)MAC Address Table16,000 entriesBuffer2 MBOperating SystemDell OS6 preinstalledLayer TypeLayer 2 with Open Networking capabilitiesManagementManageable via Web interface or ConsoleChassis format1U Rack mountable (standard 19-inch rack mount)Dimensions (H x W x D)44mm x 431mm x 254mm (1.75" x 17" x 10")Weight4.17 kg (9.19 lbs)FoodIntegrated 500W power supplyElectricity Consumption459W maximumCoolingFanless (without fan - silent operation)Country of ManufactureManufactured to Dell EMC standards✨ Main Features

• High Port Density : 48 Gigabit ports to connect numerous devices simultaneously
• Power over Ethernet PoE+ : Power supply for 24 devices (IP telephones, cameras, WiFi terminals) via network cable with a budget of 375W
• High Performance Uplinks : 4 SFP+ 10 Gigabit ports for backbone and aggregation connections
• Quiet Operation : Fanless design for deployment in noise-sensitive environments
• Optimal Performance : Switching capacity of 176 Gbps and forwarding rate of 132 Mpps
• Compact Format : 1U chassis for optimization of rack space
• Flexible Management : Intuitive web interface and console access for complete administration
• Open Networking : Compatibility with open and scalable network solutions

Product Condition: Used - Tested and Working

This Dell EMC N1148P-ON switch is in excellent working condition. It has been rigorously tested by our qualified technicians to ensure optimal performance. The device is ready to use and can be deployed immediately in your professional network infrastructure.

Content included:

• 1 x Dell EMC PowerSwitch N1148P-ON Switch
• 1 x Mains Power Cable

🛡️ Guarantee and Professional Quality

30 day warranty included for your peace of mind

Secure and fast shipping with carrier tracking number

Professional invoice with 0% VAT in paper format attached with each package

💼 Applications and Use Cases

The Dell EMC N1148P-ON is perfectly suited for:

• SME Business Networks : Complete network infrastructure for offices and remote sites
• PoE deployment : Centralized power supply for VoIP telephones, IP video surveillance cameras, WiFi access points
• Campuses and Establishments : High-density educational, hospital or hotel connectivity
• Edge Data Center : Access switching for small to medium-sized data centers
• Noise Sensitive Environments : Open offices, meeting rooms thanks to fanless operation
• Stacking and Aggregation : 10GbE uplinks for connection to core network infrastructure

⚠️ Important Information

Software : Dell OS6 operating system is preinstalled on this switch. However, we assume no responsibility for software configuration, firmware updates or technical support. The purchaser is responsible for configuring and administering the switch according to its specific needs.

Technical Support: We do not provide technical support for the configuration, setup or troubleshooting of this equipment. For technical assistance, please consult Dell documentation or contact a qualified network professional.

Authenticity: This is a genuine and original Dell EMC product. We guarantee the authenticity of all our network equipment.

❓ Frequently Asked Questions (FAQ)🔌 How many PoE devices can I power simultaneously with this Dell switch?

The Dell EMC N1148P-ON has 24 PoE/PoE+ compatible ports out of the 48 available ports, with a total power budget of 375W. The exact number of devices depends on their individual consumption. For example, you can power approximately 24 IP phones (15W each) or 12 high-performance WiFi access points (30W each). The switch intelligently distributes the available power between active ports according to the needs of each connected device and IEEE 802.3af/at standards.

🌐 Is this Gigabit switch compatible with my existing network equipment?

Absolutely ! The Dell N1148P-ON is a standard Ethernet switch compatible with all network equipment using 10/100/1000Base-T protocols. It works perfectly with computers, servers, network printers, NAS, IP cameras, VoIP phones of all brands. The ports auto-negotiate speed (10 Mbps, 100 Mbps or 1000 Mbps) and duplex mode. SFP+ ports support standard SFP and SFP+ optical modules for 1GbE and 10GbE fiber optic connections, providing maximum flexibility for integration into your existing infrastructure.

🔧 How to manage and configure this Dell EMC managed switch?

This PowerSwitch N1148P-ON is a layer 2 managed switch offering several management options. You can manage it via an intuitive graphical web interface accessible from any browser on your local network, or via console port for initial and advanced configuration. The pre-installed Dell OS6 system offers complete features: VLAN configuration, QoS management, port security, link aggregation, SNMP, real-time monitoring. The interface allows monitoring PoE usage, port status, traffic statistics and applying sophisticated network policies tailored to business needs.

📏 Can I install this Dell switch in a standard 19-inch rack?

Yes, the Dell EMC N1148P-ON is designed for standard 19-inch rack mounting with a compact 1U form factor (one rack unit, or 44 mm height). Its dimensions of 431 mm wide and 254 mm deep fit perfectly into professional server racks and cabinets. The switch is light (4.17 kg) making installation easier. Its fanless design allows flexible positioning even in closed racks, without overheating or noise problems. Rack mounting kit with mounting ears is required for installation (not included in this listing).

⚡ What is the power consumption of this professional network switch?

The Dell N1148P-ON packs a 500W power supply and has a maximum power consumption of 459W when all PoE ports are used at full capacity. In normal use without PoE or with partial PoE load, consumption is significantly lower. The switch is designed for energy efficiency with optimized Gigabit Ethernet architecture. The absence of a fan also helps reduce consumption compared to equivalent ventilated models. This energy efficiency helps reduce operating costs while maintaining optimal professional network performance for your IT infrastructure.

🚀 What are the advantages of 10 Gigabit SFP+ ports on this switch?

The Dell N1148P-ON's 4 10GbE SFP+ ports provide high-speed uplink connectivity essential for modern network architectures. These ports allow you to aggregate traffic from the 48 Gigabit ports to your core network infrastructure, servers or other switches with 10 times greater bandwidth. They support SFP+ optical modules for long distance (up to 40 km with ER modules) or short distance fiber optic connections, as well as DAC (Direct Attach Copper) cables for economical rack-to-rack connections. 1G/10G auto-negotiation ensures backward compatibility. These uplinks eliminate network bottlenecks and prepare your infrastructure for future bandwidth needs.

📞 Need Additional Information?

Please feel free to contact us with any questions regarding this Dell EMC N1148P-ON switch.
Our team will be happy to respond to you quickly!

⭐ Thank you for your trust ⭐
Professional seller - Careful and fast shipping
