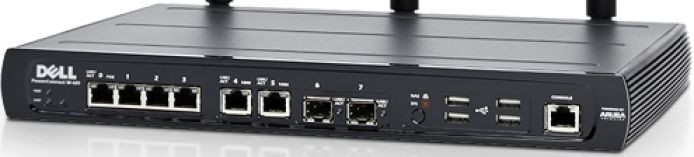

Dell PowerConnect W-650 Small Business and Branch Office Controller

Dear customer,

When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.

Specifications above might be slightly different.

Thanks for your understanding.

Dell PowerConnect W-650 Small Business and Branch Office Controller

Remote Access Points (maximum): 64
Users (max): 512
MAC addresses: 2,048
VLAN IP interfaces: 128
Number of IPv4 unicast routes: 2,048
Active firewall sessions: 16,384
System BSSIDs: 128
Concurrent IPsec tunnels (max): 512
Firewall throughput: 2 Gbps
Encrypted throughput (3DES): 1.6 Gbps
Encrypted throughput (AES-CCM): 800 MbpsOther Switching

• Operating Modes
  Multiservice 802.11a/n or b/g/n WLANMay be configured to operate individually or simultaneously as:
  802.11a/b/g/n Access Point
  Air Monitor
  Remote AP
  Secure enterprise Mesh Backward compatible with 802.11a/b/g and mixed-mode 11a/b/g/n deployments AP type: Indoor, dual radio, dual band Radios
  Single radio capable of 2.4 GHz or 5 GHz operation
  802.11n radio implementing 3x3 MIMO with two spatial streams, providing up to 300Mbps data rate
  Maximal ratio combining (MRC) for improved receiver performance Supported Frequency Bands (country-specific restrictions apply):
  2.400 - 2.4835 GHz
  5.150 - 5.250 GHz with Dynamic Frequency Scanning (DFS) capability
  5.250 - 5.350 GHz with DFS
  5.470 - 5.725 GHz with DFS
  5.725 - 5.850 GHz with DFS Available Channels:
  Controller-managed, dependent upon configured regulatory domain Maximum Transmit Power:
  2.4GHz: 23 dBm (limited by local regulatory requirements)
  5 GHz: 23 dBm (limited by local regulatory requirements)
  Transmit power configurable in increments of 0.5 dBm Supported Radio Technologies:
  802.11b: Direct-sequence spread-spectrum (DSSS)
  802.11a/g/n: Orthogonal frequency division multiplexing (OFDM)
  802.11n: 3x3 MIMO with 2 spatial streams Supported Modulation Types:
  802.11b: BPSK, QPSK, CCK
  802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM Association Rates (Mbps):
  802.11b: 1, 2, 5.5, 11
  802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
  802.11n: MCS0 - MCS15 (6.5 Mbps to 300 Mbps) 802.11n High-Throughput (HT) Support: HT 20/40802.11n Packet Aggregation: A-MPDU, A-MSDU

If something is not on the picture it's not included unless stated otherwise.
