Dynatron R18 1U Rackmount LGA 2011 CPU Cooler for Intel® Xeon® Processors

Dynatron® R18: 1U LGA 2011 Active CPU Cooler For Intel® Xeon® Processors

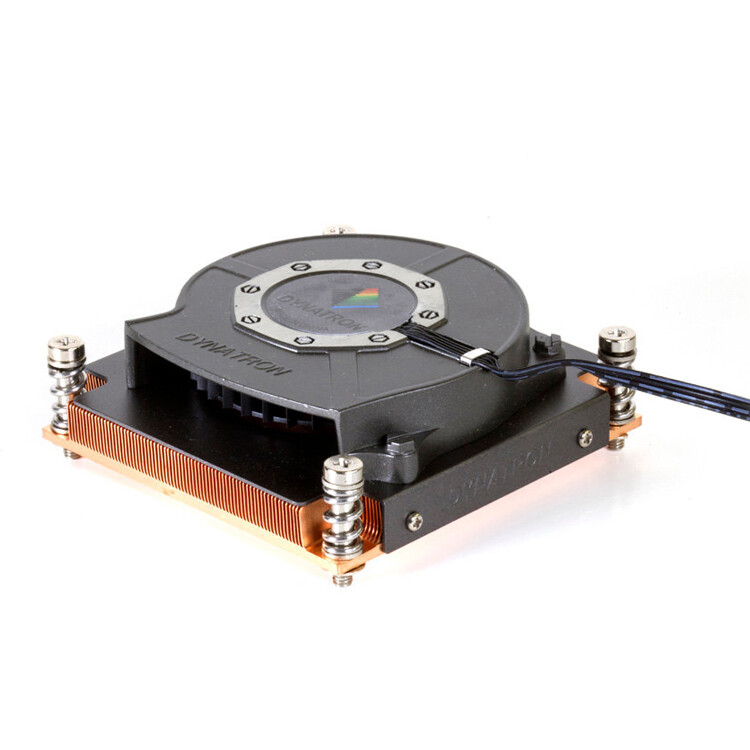

Active 1U rackmount CPU cooler from Dynatron® for Intel® LGA 2011 (Socket R) Sandy Bridge server processors. The R18 1U CPU cooler is comprised of two components. The copper heatsink with skived-fins provide optimal heat transfer and dissipation and is aligned (fin direction parallel to airflow) to the 80mm blower on top. Using this design, the R18 is able to provide cooling for processors with a maximum TDP of 95W in a compact 1U design. Thermal compound is pre-printed with Shin-Etsu G751; no additional thermal compound is required.

Noteable features include:

• Solid copper heatsink with skived-fins
• Dual-ball bearing blower for durability
• Supports 1U+
• Pre-printed thermal compound
• RoHS Compliance

Dynatron® R18: 1U LGA 2011 Active CPU Cooler For Intel® Xeon® Processors Manufacturer's P/N: R18 Dimensions: 90 x 90 x 27.7 mm
3.54" x 3.54" x 1.1" (in inches) Blower Size: 80mm x 80mm x 15mm CPU Support: LGA 2011 (Socket R)
Sandy Bridge-E
Intel® Core™ i7, Xeon® E5 and other LGA 2011 processors
95W TDP MAX Features: Shin-Etsu G751 Thermal Compound (pre-printed) Rated Voltage: 12V Input Power: At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 3.84 W
At Duty Cycle 100%: 14.4 W Speed: At Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 3500 RPM
At Duty Cycle 100%: 6000 RPM Static Pressure: At Duty Cycle 20%: 2.27 mm-H2O
At Duty Cycle 50%: 18.56 mm-H2O
At Duty Cycle 100%: 54.5 mm-H2O Maximum Airflow: At Duty Cycle 20%: 6.5 CFM
At Duty Cycle 50%: 11.2 CFM
At Duty Cycle 100%: 19.1 CFM Noise Level: At Duty Cycle 20%: 21.5 dBA
At Duty Cycle 50%: 43.0 dBA
At Duty Cycle 100%: 55.8 dBA Connector : 4-pin PWM International Shipping Details
