Description

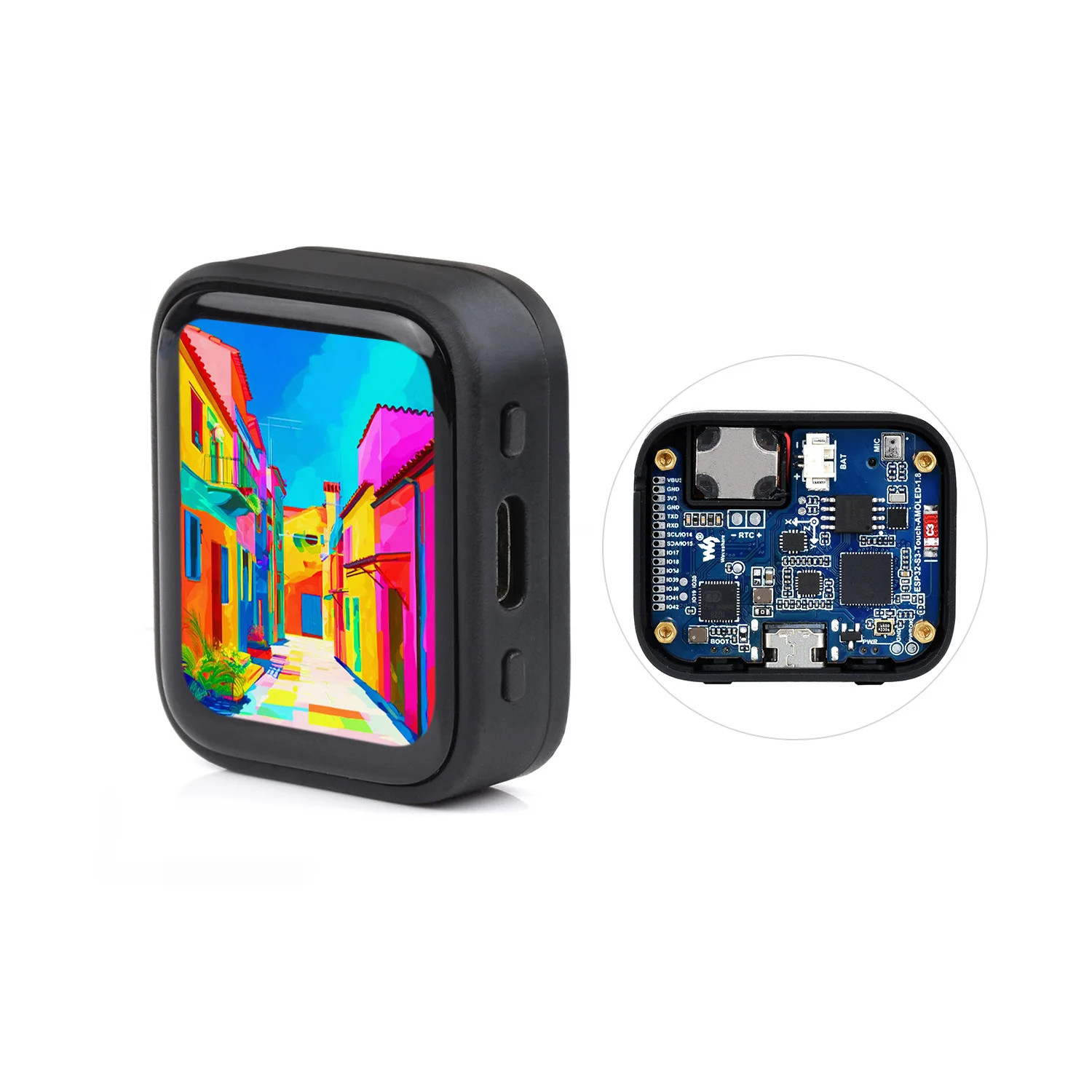

ESP32-S3 1.8inch AMOLED Touch Display Development Board, 32-bit LX7 Dual-core Processor, 368×448 Pixels, Accelerometer And Gyroscope Sensor, ESP32 With with SH8601 Display Driver and FT3168 Capacitive Touch Chip

Version version, without Lithium with a 3.7V MX1.25 Lithium battery
(can be installed inside the a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.8inch AMOLED display, power management IC, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, low power audio codec, and so on, which makes it easy for you to develop and integrate it into the products quickly.

Key features include:

• Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

• Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory

• Type-C connector, improving device compatibility, easier to use

• Onboard 1.8inch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color

• Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources

• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.

• Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery pads for connecting a backup battery, ensuring RTC function during the replacement of the main battery

• Onboard PWR and BOOT programmable buttons for easy custom function development

• Onboard 3.7V MX1.25 Lithium battery recharge/discharge header, optional for 3.7V Lithium battery

• Reserved pads of 7 × GPIO, 1 × I2C, 1 × UART, and 1 × USB interface, for connecting peripherals and debugging

• Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design

• Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc.

• Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.

AMOLED parameters

Display Panel

AMOLED

Display Size

1.8 inch

Resolution

368 × 448 pixels

Display cd/㎡

Contrast Interface

QSPI

Driver IC

FT3168

Small Size, Touch More Possibilities

Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function. Supports installing battery* inside the case for independent operation.

* Note: the Lithium battery is optional.
Adopts AMOLED screen

The next-generation display technology, compared to those traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image

178° wide viewing angle

Excellent Display Performance, 16.7M color, wide viewing angle

Onboard audio codec

Supports high-quality audio processing, providing clear and high-quality audio input and output

Supports Offline Speech recognition and AI Speech Interaction

Allows access to online large model platforms to support more AI application scenarios

Supports ESP-IDF, Arduino

Comprehensive SDK, dev resources, tutorials to help you easily get started

Wi-Fi and BLE 5 support

ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 ax/b/g/n) with 40 MHz of bandwidth support, Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Dedicated black case, unique design

with removable back cover for easy embedded into the projects and DIY design

What's On Board

1. ESP32-S3R8
   The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 8MB PSRAM

2. QMI8658
   6-axis IMU includes a 3-axis gyroscope and a 3-axis chip

3. AXP2101
   Highly integrated power management IC

4. ES8311
   Low power mono audio battery pads
   for connecting backup battery, ensuring RTC function during the replacement of the main battery

1. MX1.25 Lithium battery header
   MX1.25 2P connector, for 3.7V Lithium battery (optional), supports charging and discharging. (To fit inside the case, a battery size of 3.85 × 24 × 28 mm is recommended)

2. 16MB NOR-Flash
   for storing antenna
   Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)

3. Reserved GPIO pads (pitch 1mm)
   Adopting available IO function pins for easy expansion

4. BOOT button
   for device startup and function debugging

5. USB Type-C port
   ESP32-S3 USB interface, for programming and log printing

6. PWM button
   for system power supply ON/OFF, supports custom functions

Pin Definition
outline dimensionsResources & ServicesWiki:

Package Content

Weight:0.024 x1

OPTIONS3.7V MX1.25 Lithium battery ×1
