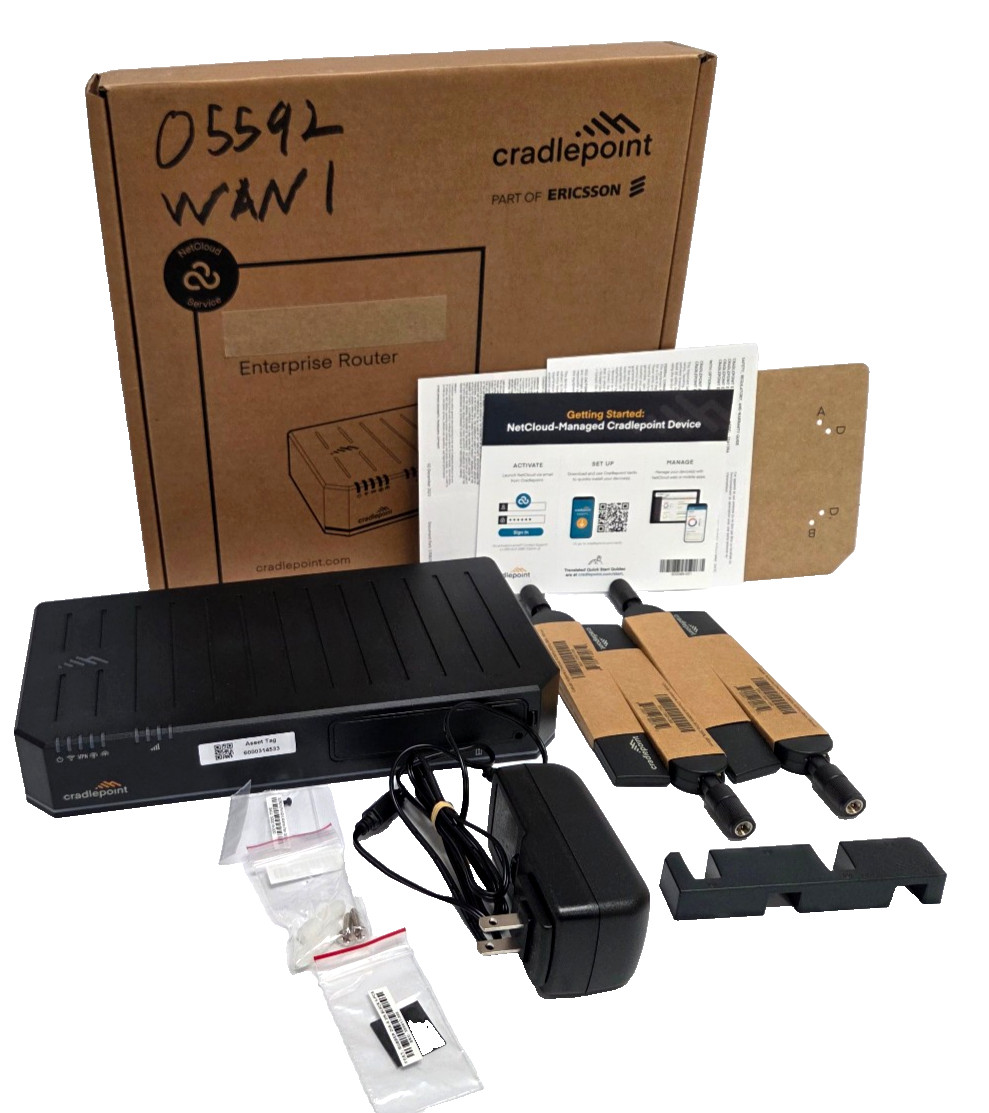

Ericsson Cradlepoint E300-5G BF03-03005GB-GN WLAN Router Switch 5G + Wifi US/CA

Price: US $1199.99

Ericsson Cradlepoint E300-5G BF03-03005GB-GN WLAN Router Switch 5G + Wifi US/CA
Same day shipping. 30 day money back

E300-5GB

Technology:

5G FR1 NSA/SA and 4G LTE

LTE Advanced Pro Category 20
Dual SIM slots, 2FF form factor
3GPP Release 15

3G:

WCDMA/UMTS/HSPA+

Carrier Aggregation:

LTE Only

Downlink: Up to 7 CA
Uplink: Up to 2 CA

LTE + 5G NR ENDC

Downlink: 1 CA
Uplink: 1 CA

See Understanding Carrier Aggregation.

Peak Rates:

Downlink: Up to 4.14 Gbps
Uplink: Up to 660 Mbps

MIMO:

4x4 MIMO

Modulation:

5GB FR1

Downlink: Up to 256 QAM
Uplink: Up to 256 QAM. (Only enabled on particular carrier equipment from 9190 data sheet.)

4G/LTE Bands:

FDD

B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)

TDD

B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)

5G NR Bands:

NSA and SA

n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)

Power:

LTE

LTE bands: 23 dBm ± 1 (typical conducted)
LTE HPUE: 25 dBm ± 1 (B41 standalone mode only)

LTE + 5G NR ENDC

LTE + 5G NR: 20 dBm ± 1 (typical conducted)

5G NR

5G NR bands: 23 dBm ± 1.5 (typical conducted)

Antennas:

SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 4, included)

GNSS/GPS:

Passive GNSS (multiplex with DIV/MIMO2 antenna ports)

SMS:

Yes

Regulatory:

FCC (U.S.)
CE (EU)
RCM (AU/NZ)

Network Operator Standards:

PTCRB (U.S., Canada)
GCF (Worldwide)

Network Operator Certifications:

Public Safety Network Certifications:

FirstNet Trusted™
T-Mobile Connecting Heroes
Verizon Frontline

Private Cellular Network:

Yes, includes FCC Part 96 (CBRS Band 48)

INTERFACES

Modem:

One of the following:

Embedded 5GB low/mid-band modem, including 4 x SMA cellular antenna connectors
Embedded Cat 7 LTE modem, including 2 x SMA cellular antenna connectors
Embedded Cat 18 LTE modem, including 4 x SMA cellular antenna connectors

Optional dual modem:

Modular MC400 Modem

Ethernet:

5 x GbE RJ45 (LAN/WAN switchable)
1 x 10 GbE SFP+ (LAN/WAN switchable)
- SFP: Finisar FTLF8519P3BNL, FTLF1318P3BTL
- SFP+: Finisar FTLX8574D3BCL, FTLX1475D3BCL, FCBG110SD1Cxx

Wi-Fi:

Dual-radio, dual-band, concurrent operation (2.4 GHz and 5 GHz)

2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS
574 Mbps (2.4 GHz) and 1,200 Mbps (5 GHz)
Internal 2x2 antenna
Global Optimized Wi-Fi
WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open
802.11k, 802.11v

Expansion:

1 x MC400 Modular Modem Slot (Peak throughput: 300 Mbps)
1 x USB 2.0 Type A (output: 5 V, 500 mA, 2.5 W)
1 x Expansion Slot
- MC20BT Bluetooth® wireless technology Low Energy Module

GNSS/GPS:

1 x SMA GNSS antenna connector†

ENVIRONMENTAL

Temperature:

Operating: 0 °C to 45 °C (32 °F to 113 °F)
Storage: -20 °C to 70 °C (-4 °F to 158 °F)

Humidity:

Operating: 10% to 90%
Storage: 5% to 95%

POWER

Required:

External power supply (included)

Input: 100-240 VAC 1 A
Output: 12 VDC 3 A

Consumption:

Idle: 9 W
Typical: 13 W
Heavy: 17 W

PHYSICAL

Size:

135 x 270 x 44 mm (5.3 x 10.6 x 1.7 in)

Weight:

.86 kg (1 lb 14 oz)

RELIABILITY

Calculated MTBF:

E300-C7C and E300-C7D: 483,968 hours (Telcordia SR332 at 25 °C)
E300-C18B and E300-C4D: 324,742 hours (Telcordia SR332 at 25 °C)
E300-5GB: 399,642 hours (Telcordia SR332 at 25 °C)

CERTIFICATIONS

Safety:

UL/cUL, CB Scheme, EN 60950-1, EN 62368-1

Substance Compliance:

Prop 65

CLOUD SERVICES

Service Plans:

NetCloud Service for Enterprise Branch

Service Add-Ons:

NetCloud Exchange, NetCloud Advanced

Support:

NetCloud Packages include support for the full subscription term.

Warranty:

All Cradlepoint hardware products are covered by a limited lifetime warranty for as long as they have a subscription license to an active NetCloud Service Plan.

Device Management:

NetCloud Manager for the full subscription term.

Software Updates:

NetCloud Manager for the full subscription term.

WI-FI POWER

FCC:
