Interfaces/Ports
- Total Number of Network Ports: 48
- Modular: Yes
- Stack Port: Yes
- Port/Expansion Slot Details: 32 x Gigabit Ethernet PoE+
- Port/Expansion Slot Details: 4 x 10 Gigabit Ethernet Expansion Slot
- Port/Expansion Slot Details: 2 x Stack
- Port/Expansion Slot Details: 16 x Gigabit Ethernet PoE
Media & Performance
- Media Type Supported: Optical Fiber
- Media Type Supported: Twisted Pair
- Ethernet Technology: 10 Gigabit Ethernet
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10GBase-X
- Network Technology: 10/100/1000Base-T
I/O Expansions
- Number of Total Expansion Slots: 6
- Expansion Slot Type: SFP-DD
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 4
Network & Communication
Power Description
- PoE (RJ-45) Port: Yes
- Power Source: Power Supply
- Number of Power Supplies Supported: 1

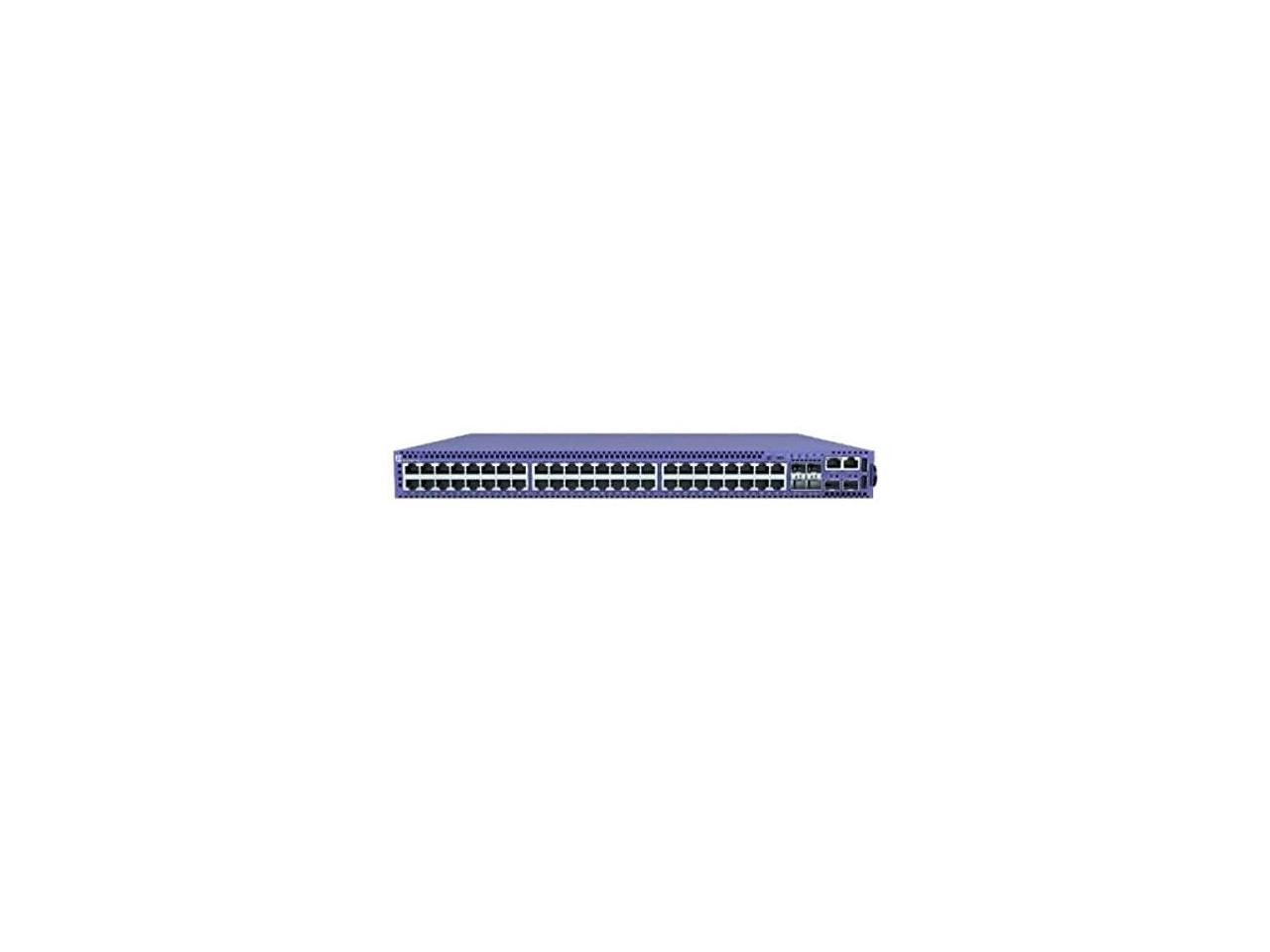

Learn more about Extreme Networks 5420F-16W-32P-4XEModelBrandExtreme & StandardsNetwork Management TypeManagedPorts & InterfacePrimary Ports16 x 10/100/1000BASE-T 802.3bt (90W) ports
• Full / Half-Duplex(autosensing)
• MACsec-capable
32 x 10/100/1000BASE-T 802.3at (30W) ports
• Full / Half-Duplex(autosensing)
• MACsec-capable
4 x 1/10Gb SFP+ uplink ports(unpopulated)
• MACsec-capable
2 x Stacking/SFP-DD ports* (unpopulated)
1 x Serial console port (RJ-45)
1 x 10/100/1000BASE-T out-of-band management port
2 x USB A ports for management or external USB flash
1 x USB Micro-B console portData TransmissionVLAN SupportYesDetailsPoEAll 5420 models support 30W, 60W, and 90W PoE that conforms with IEEE 802.3bt. This enables the 5420 to address the needs of powered edge devices, while eliminating the need for additional electrical cabling and circuits. In addition, 5420 PoE models support perpetual and fast PoE for even more efficient and reliable powered edge device operationStackableYesDimensions & WeightDimensionsHeight: 43.2 mm (1.7 in.)
Width: 442.0 mm (17.4 in.)
Depth: 330.20 mm (13.0 in.)Weight5.36 kg (11.82 lb.)ShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy. For international buyers, items shipped internationally do not qualify for manufacturer warranties.
