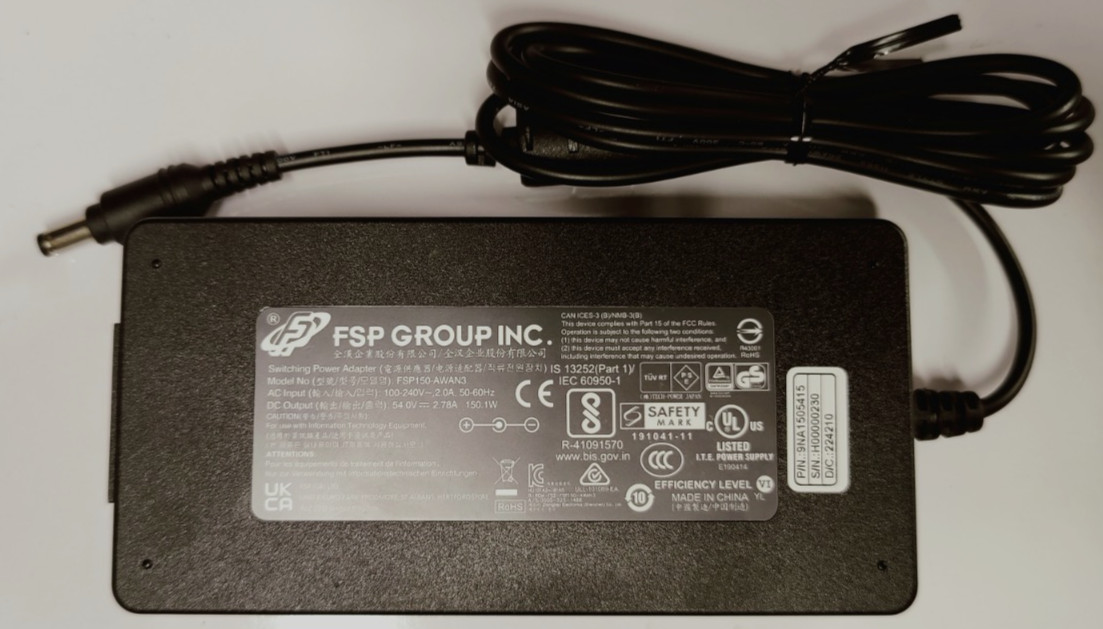

FSP FSP150-AWAN3 100~240V-2.0A,50~60HZ Out 54.0V=2.78A ,150.1W AC/DC Power Adapter
Dimension:
Brick -5.75" (150mm)(L) x 2.75" (75mm)(W) x 1" (25mm)(H)
Cable Length: 5 feetBarrel size: OD 5.5mm X ID 2.5mm X 12 mm long connector. (+/- 0.1~0.2mm)
++ US Power cord included
FEATURES ‧Certified IEC 62368-1 & CB 60950-1‧ Meet USA EISA 2007 ‧ Meet Energy Efficiency DOE Level VI‧ Meet Code of Conduct Version 5 Tier 2‧ High Reliability‧ Low Profile‧ Over Current Protection‧ Over Temperature Protection‧ Over Voltage Protection‧ With PFC Circuit
DESCRIPTION:This product is an 150 watts AC to DC adapter intended for use in IPC systems, embedded systems, printers, monitors, POS systems and PoE application, that have a high wattage demands. This adapter operates at 90 to 264 VAC input voltage. The unit meets CISPR32 EN55032 CLASS B, EN55024 and FCC PART 15B Class B emission limits, and is designed for ITE application
INPUT SPECIFICATIONS
Input voltage: 90-264 VAC
Input frequency: 47-63 Hz
Input current: 100Vac, 240Vac /full load ≦ 2A
No load power consumption: 115Vac, 230Vac ≦ 0.15W
Touch current: 264Vac / 50Hz ≦0.25mA
OUTPUT SPECIFICATIONS:
Total output power: 150W
Protection: Over voltage: Theadapter will enter into shut down that means no output while over voltagehappened at output terminal that caused by internal fault, the output tripvoltage shall not exceed 19/29/37/63/66* volts. That will be return to normalstate by AC reset.
Short circuit & Over current:When an internal fault occurs, or an external fault is applied to the powersupply, such that an overload or short circuit is applied to the output, thepower supply shall shut down and enter auto-recovery mode.
Over temperature: The powersupply will enter into shut down while the abnormal thermal rise occurs. Thatwill be return to normal state by AC reset.
Brown-out Environment: Set at60Vac~70Vac
Working TEMP. 0~70℃(> 40℃ de-rating )
Storage TEMP. -20~+80℃
Working Humidity 20~80% RH non-condensing
Storage Humidity 10~90% RHnon-condensing
