This item include:

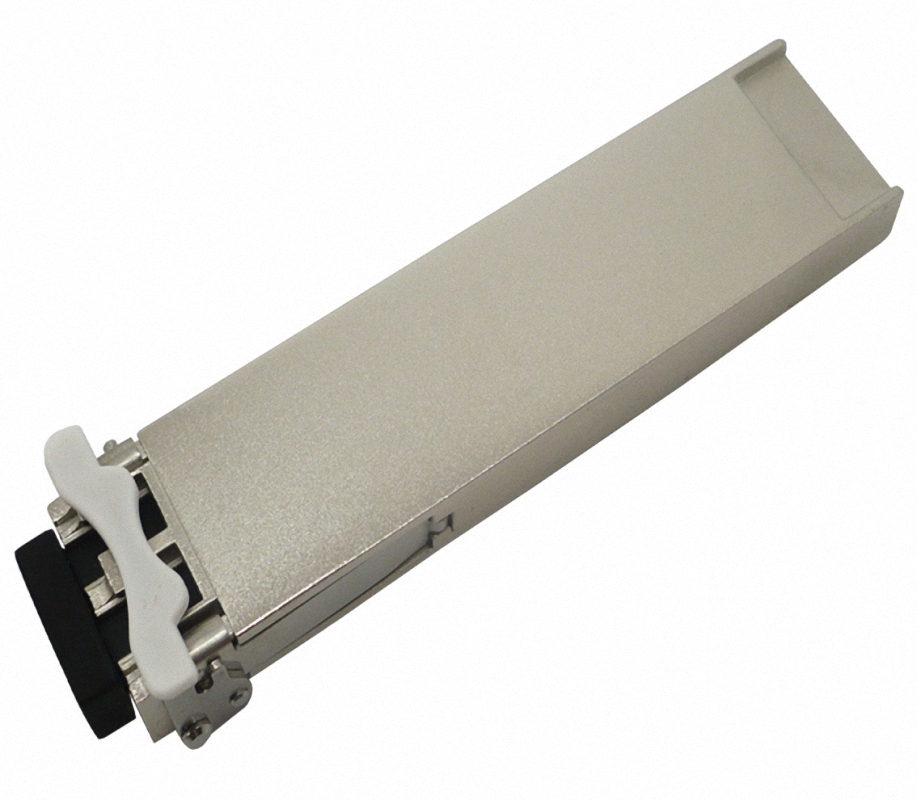

For F5 networks, F5-UPG-XFP-R 10G XFP 10GBase-SR 850nm 300M

Model Number

F5-UPG-XFP-R

Manufacturer

F5 Networks

Product Description

Original F5-UPG-XFP-R F5 Field Upgrade: XFP Fiber Connector (10G-LC/850nm) ROHS, OPT-0012-00

General:

Device Type: XFP Transceiver Module

Form Factor: Plug-In Module

Networking:

Connectivity Technology: Wired

Data Link Protocol: 10 Gigabit Ethernet

Expansion / Connectivity:

Interfaces: 1 X Network

Compatible Slots: 1 X XFP

Compatibility Information:

F5 BIG-IP LTM 8400 and LTM 8800 Systems

Description:

HE-link XFP is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-SR) or 9.953Gbps (10GBASE-SW), and transmission distance up to 300m on 50μm MMF (2000MHz.km).

The transceiver module comprises a transmitter with 850nm a vertical cavity surface emitting (VCSEL) laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

Product Condition:

NEW

Product Features:

* Supports 9.95Gbps to 11.3Gbps bit rates

* Maximum link length of 300m (50um,MMF,2000MHz.Km)

* 850nm VCSEL laser and PIN receiver

* XFP MSA Rev 4.5 Compliant

* No reference clock required

* +1.8V,+3.3V Supply Voltage

* Low Power Dissipation 1.5W Maximum

* XFI and lineside loopback Mode Supported

* 0ºC to 70ºC Operating Case Temperature

* Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power.

* RoHS6 compliant (lead free)

Applications:

* 10GBASE-SR/SW 10G Ethernet

* 1200-Mx-SN-I 10G Fiber Channel

* Other optical links

* 10GBASE-SR/SW 10G Ethernet with FEC
