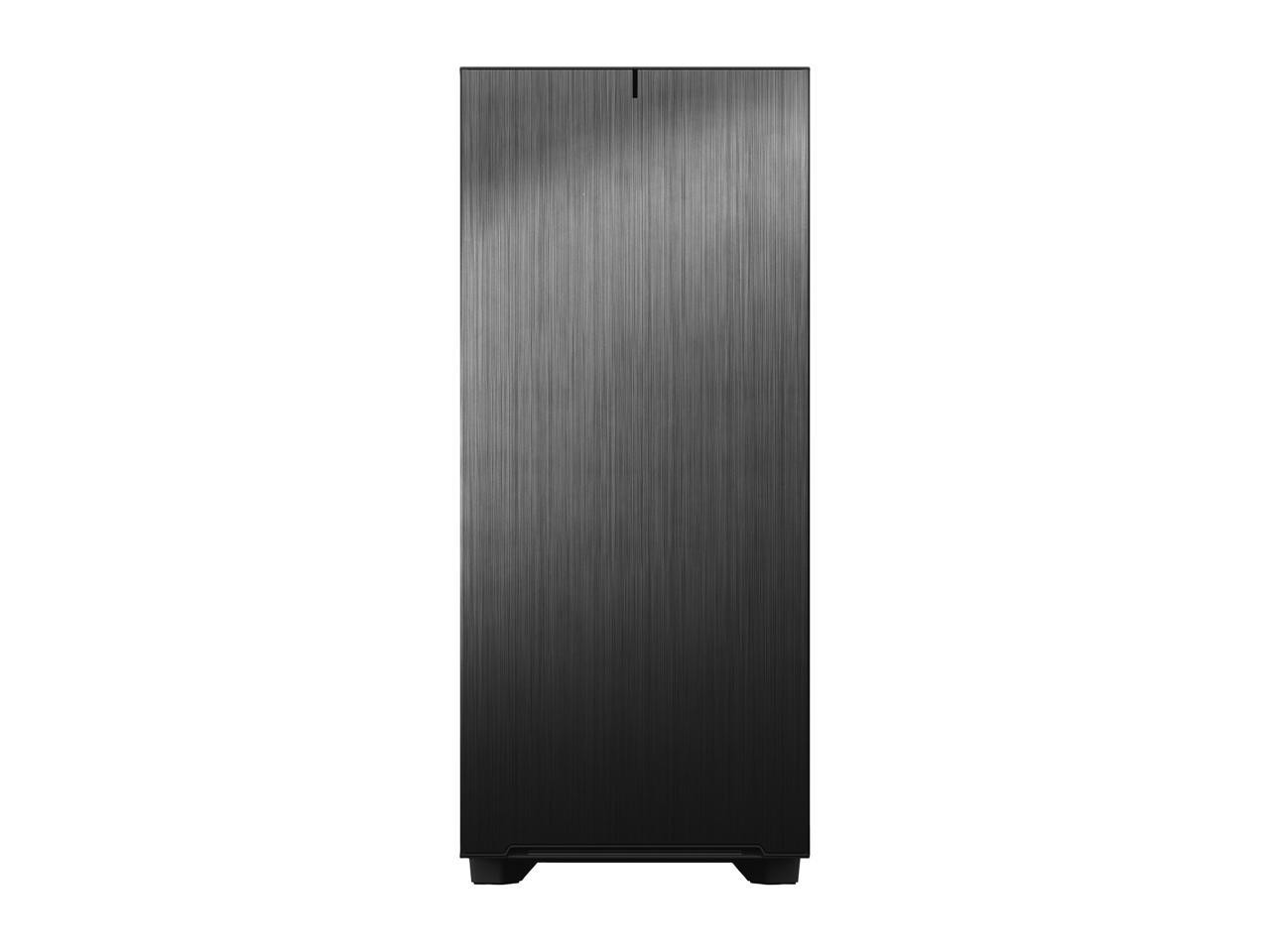

Fractal Design Case FD-C-DEF7X-01 Define7 XL Full Tower E-ATX/ATXMicroATX/Mini-ITX Black Fractal Design Case FD-C-DEF7X-01 Define7 XL Full Tower E-ATX/ATXMicroATX/Mini-ITX Black

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: Define 7 XL Black Solid Accessory Box User Manual Ventilated Top Panel ODD Bracket ODD Bay Cover 2 x HDD/SSD Trays

Country of Origin: China

Product Description

This item is brand-new, factory sealed.

Define 7 XL Dark Tempered Glass

The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.

New chassis design opens up to fully expose the case interior

Anodized aluminum front panel with reversible dual-handed hinges

Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout

Plenty of room for massive builds

Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base

Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB

Two 5.25 ODD bays can be converted to an additional front fan mount with filtered louver covering

Ventilated PSU shroud with two-part removable cover

Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans

Superlative storage possibilities

Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets included)

Detachable PSU cable shield and integrated cable guides with straps further simplify cable management behind the board

Sturdy new HDD cage design with vibration damped trays

13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size

Airflow and cooling

Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans

Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access

The two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering

Specifications
3.5"/2.5" Universal drive brackets
6 + 2 included, 18 positions total
Dedicated 2.5" drive brackets
2 included, 5 positions total
5.25" drive mounts
2
Expansion slots
9 + 3
Front ports
1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
Total fan mounts
11 x 120 mm or 9 x 140 mm
Front fan
4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)
Top fan
4 x 120 mm or 3 x 140 mm
Rear fan
1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)
Bottom fan
2 x 120/140 mm
Dust filters
Top, 2 x Front, Bottom + PSU
Fixed straps
Yes
Cable routing grommets
Yes
Captive thumbscrews
HDD brackets, SSD brackets, PSU bracket
Left side panel
Industrial sound-damped steel
Right side panel
Industrial sound-damped steel
Compatibility
Motherboard compatibility
E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB
Power supply type
ATX
PSU max length
250 mm (both HDD cages installed)
GPU max length
Storage layout: 359 mm - Open layout: 549 mm (524 mm w/ front fan)
CPU cooler max height
185 mm
Front radiator
Up to 480/420 mm
Top radiator
Up to 480/420 mm
Rear radiator
120 mm
Bottom radiator
Up to 240/280 mm
Cable routing space
30 mm
Other
Package contents
Define 7 XL - Accessory box - User manual - Ventilated top panel - ODD bracket - ODD bay cover - 2 x HDD/SSD trays
Item Dimension (L"xW"xH")
26 x 15 x 28
Weight
79.00 LB
Warranty Information
2 YEARS
Package Contents:

• Define 7 XL Black Solid
• Accessory Box
• User Manual
• Ventilated Top Panel
• ODD Bracket
• ODD Bay Cover
• 2 x HDD/SSD Trays

SpecificationPower DescriptionPower Supply InstalledNoNumber of Power Supplies Supported1Number of Power Supplies Installed0Physical CharacteristicsProduct Material

Form FactorFull-towerWeight (Approximate)36.44 lbProduct ColorBlackHeight22.3"Color Warranty2 YearI/O ExpansionsTotal Number of Expansion Slots12Interfaces/PortsTotal Number of Audio Out Ports1Total Number of USB Ports5Total Number of Audio In Ports1BaysNumber of External 5.25" Bays2Number of Internal 2.5" Bays2Number of Total Expansion Bays10Number of Internal 2.5"/3.5" Bays6General InformationBrand NameFractal DesignMarketing Information Re-defining capacity. The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use. With its dual-layout interior, industrial sound damping and massively versatile layout supporting the largest E-ATX and enterprise boards, multi-GPU setups, outlandish water loops, and almost two dozen storage devices (in Storage layout), you'll be hard pressed to find a limit to what you can do with your build in the Define 7 XL.Product TypeComputer CaseProduct NameDefine 7 XL Black SolidManufacturerFractal DesignManufacturer Part NumberFD-C-DEF7X-01Product LineDefine 7 XLTitleProduct TitleFractal Design Define 7 XL Black Solid (FDCDEF7X01)Technical InformationMotherboard Supported

• Mini ITX
• EE-ATX
• SSI CEB
• SSI EEB

Installed Fan Size5.51"Number of Fans Supported11Number of Fans Installed3 Shipping
