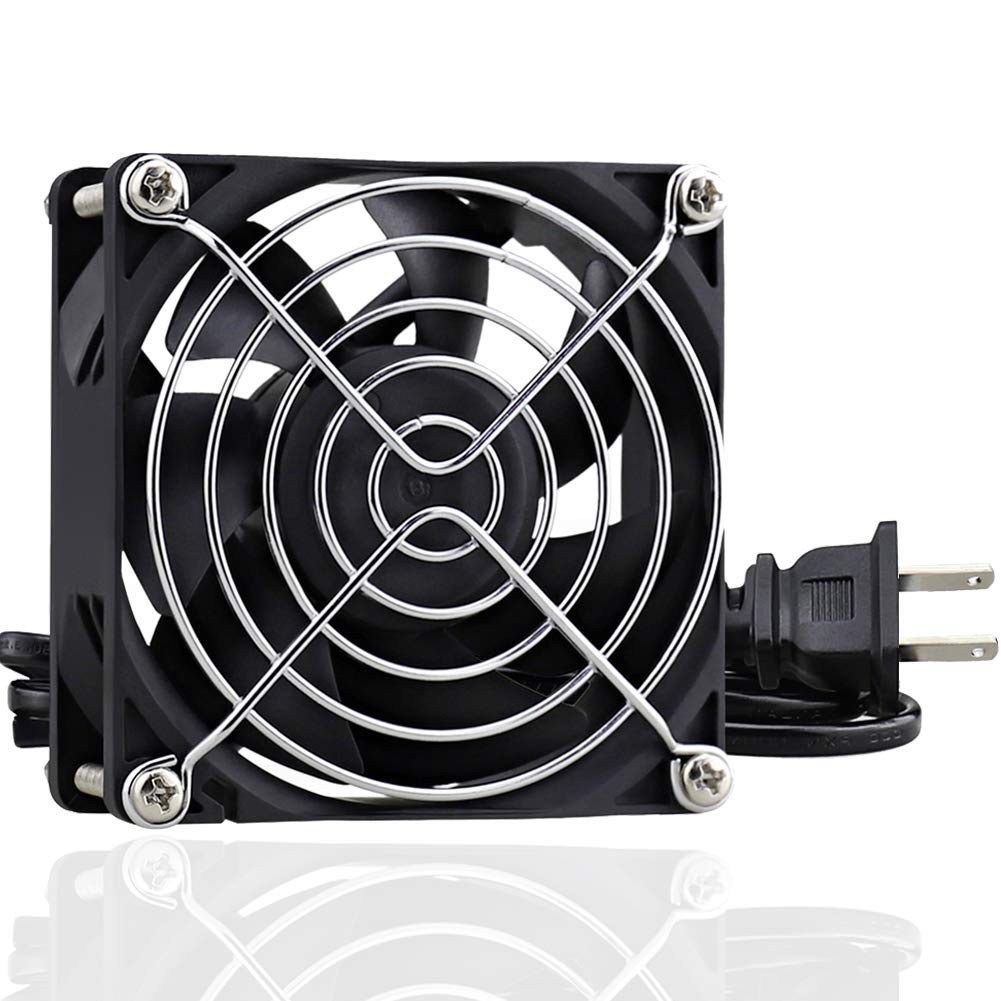

Trusted SellerStore response★★★★★ Top RatedFast dispatchSecure packaging★ responseVisit StoreGDSTIME 80mm EC Axial Fan AC 110V 120V 220V Brushless Cooling 80mm x 25mm

• Package include: 1 Piece fan include fan grill and mounting screws & nuts; 1x Wire Clip; 1x US Plug Power Cord
• This fan can easily run from 90 to 270VAC current without any trouble.
• 80x80x25mm AC 110V 115V 120V 220V 240V; Speed:2800rpm; 2.0W
• The motor runs on a DC voltage, but with a normal AC supply. DC motors already have low power consumption but if used in an AC application
• Sleeve bearing have a lifespan of 40,000 hours and allows the fans to be laid flat or stand upright.

Product Description

EC fans/motors is highly regarded as the preferred choice for energy efficient motor and fan solutions.Available in 60mm,80mm,90mm,120mm size Run at 110V,115V,120V,220V,240V AC

GDSTIME’s EC fans are highly efficient, provide a more compact design, lower energy consumption and longer component life to reduce the costs of operation and maintenance.

Outstanding airflow performance with low static pressure. The air volume is 1.5-3 times higher than the same conventional fans.

Efficiency EC motor, allowing EC fans to consume up to 80% less energy. Moved more air at less power consumption.

Lightweight motor rotor design and low operating temperature rise, extend 50% lifespan compared others.

All EC axial fans run at 110V, 115V, 120V, 220V, 240V AC (Range from 90 to 260 VAC), include a power cord,wire connector,fan grill and screw set.

This EC axial fan's operating temperature rise is very low, so the EC fan's housing can be constructed of PBT Material,Its impeller and blades are one-time injecting molded with thermoplastic. It has 300 millimeter AWM 1007 24 AWG 80℃ 300V VW-1 wireleads. (The Operating Temperature is 14℉ to 167℉)

The EC axial fan widely used for ventilation of residential, office and industrial buildings or as a replacements fans. It can be mounted flat or upright.

Air Handlers, Cabinet Cooling, Commercial Refrigeration, HVAC, Copiers & Projectors, Air Cleaners & Heaters, Server/Storage Devices, Vending Machines, Mobile Devices, Purifiers, and other electronics and components.

1piece 80x80x25mm EC axial fan includes a 4.9ft power cord, one 80mm metal fan grill, one wire connector and four screws and nuts for quick mounting.

What is EC Axial Fan?

• Brand: GDSTIME
• Model Number: EC8025S 110V-240V
• Voltage: 120 2 watts
• Unit Count: 1 Count
• Item Weight: 2.61 ounces
• Noise Level: 31 db
• Manufacturer: GDSTIME
• Material Type: Plastic
• Cooling Method: Air
• Item Highlight: AXIAL 8025, Muffin Fan, 80V-240V, 2.5W Low Power, ON/OFF Switch, for Incubators, Tube Amp, DIY Ventilation Exhaust Projects
• Air Flow Capacity: 43.6 cfm
• Compatible Devices: Server
• Power Connector Type: 2-Pin
• Warranty Description: One-year Warranty (Free Replacement)
• Maximum Rotational Speed: 2800 rpm
• Item Dimensions L x W x H: 3.15"L x 3.15"W x 1"H
