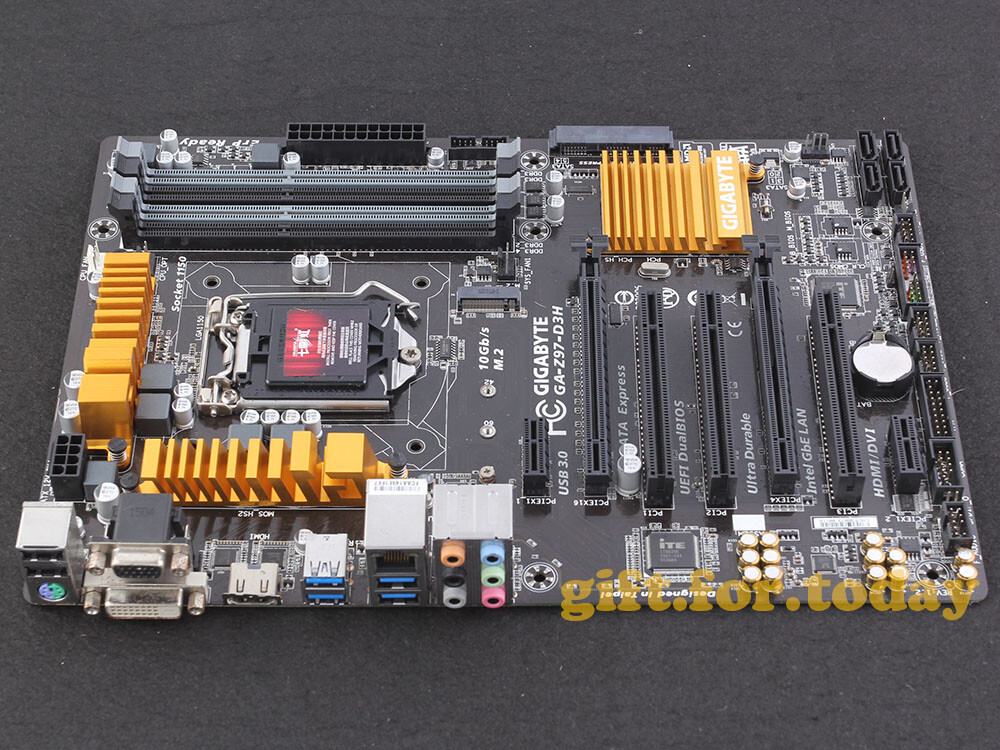

GIGABYTE GA-Z97-D3H Motherboard Introduction

CPU

1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

Intel® Z97 Express Chipset

Memory

1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor - Intel® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200at60Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200at60Hz
   * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160at24Hz or 2560x1600at60Hz
   * Support for HDMI 1.4a version.
4. Support for up to 3 displays at the same time
5. Maximum shared memory of 512MB

Audio

1. Realtek® ALC1150 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

LAN

1. Intel® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
   * The PCIEX4 slot shares bandwidth with all PCI Express x1 slots. All PCI Express x1 slots will become unavailable when a PCIe x4 expansion card is installed.
   * When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4. (Refer to Chapter 2, "BIOS Setup," "Peripherals," for more information.)

3. 2 x PCI Express x1 slots
   (The PCIEX4 and the PCI Express x1 slots conform to PCI Express 2.0 standard.)

4. 3 x PCI slots

Storage Interface

Chipset:

1. 1 x M.2 PCIe connector
   (Socket 3, M key, type 2242/2260/2280 SATA & PCIe SSD support)
2. 1 x SATA Express connector
3. 6 x SATA 6Gb/s connectors
   (M.2, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed.)
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10

Multi-Graphics Technology

1. Support for AMD CrossFire™ technology

USB

Chipset:

1. 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
2. 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x M.2 PCIe connector
4. 1 x SATA Express connector
5. 6 x SATA 6Gb/s connectors
6. 1 x USB 3.0/2.0 header
7. 3 x USB 2.0/1.1 headers
8. 1 x CPU fan header
9. 1 x water cooling fan header (CPU_OPT)
10. 3 x system fan headers
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x serial port header
14. 1 x Trusted Platform Module (TPM) header
15. 1 x S/PDIF Out header
16. 1 x Clear CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 4 x USB 3.0/2.0 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/CPU OPT/System fan speed detection
4. CPU/System overheating warning
5. CPU/CPU OPT/System fan fail warning
6. CPU/CPU OPT/System fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1. 2 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for APP Center
   * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
   atBIOS
   EasyTune
   EZ Setup
   Fast Boot
   ON/OFF Charge
   Smart TimeLock
   Smart Recovery 2
   System Information Viewer
   USB Blocker
2. Support for Q-Flash
3. Support for Smart Switch
4. Support for Xpress Install

Operating System

1. Support for Windows 10/8.1/8/7

Form Factor

ATX Form Factor; 30.5cm x 21.4cm

Remark

 Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

 Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
