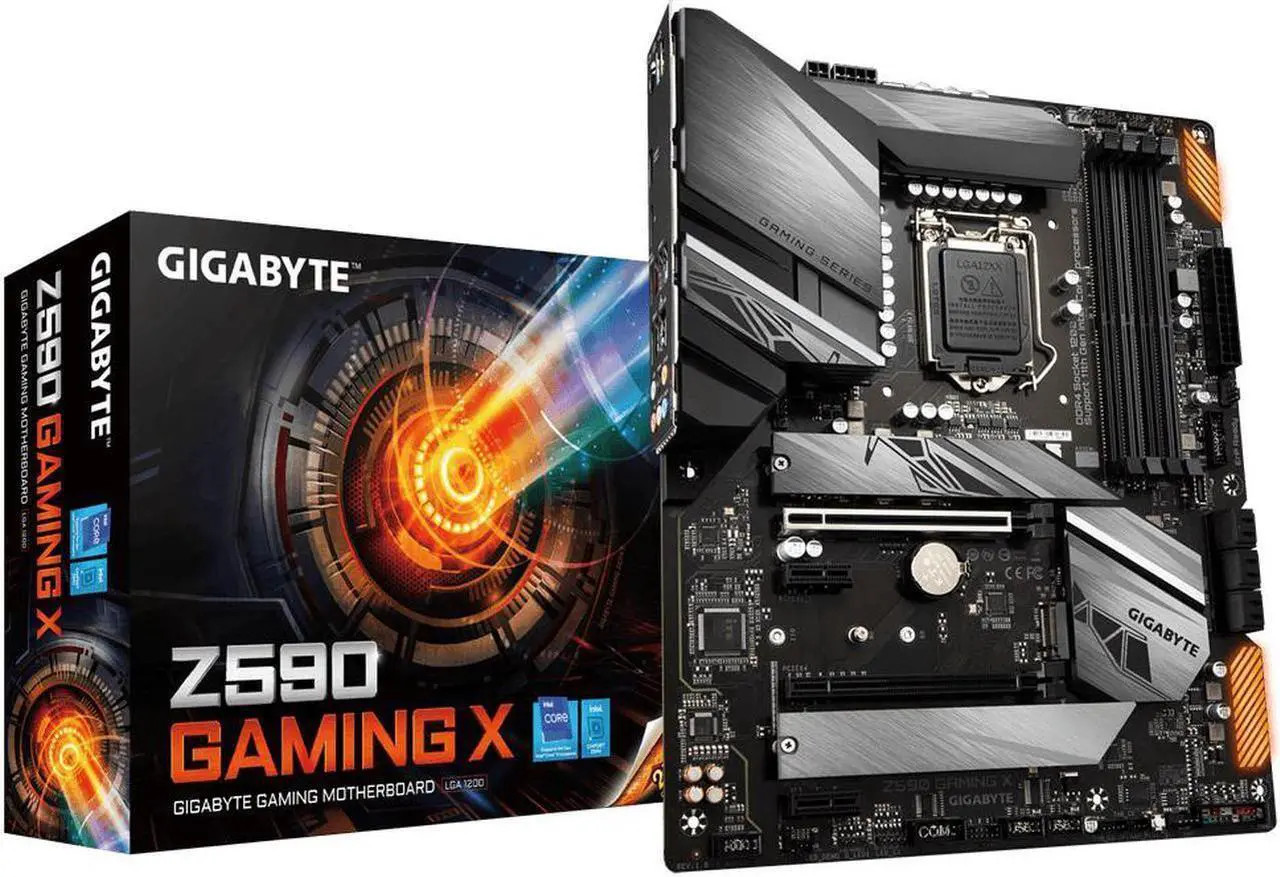

ModelBrandGIGABYTEModelZ590 GAMING XSupported CPUCPU Socket TypeLGA 1200CPU TypeSupports 11th Generation Intel Core i9 / Intel Core i7 / Intel Core i5 processors
Supports 10th Generation Intel Core i9 / Intel Core i7 / Intel Core i5 / Intel Core i3 / Intel Pentium / Intel Celeron processors*
* Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.ChipsetsChipsetIntel Z590MemoryNumber of Memory Slots4x288pin (DDR4)Memory StandardDDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.)/ 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133Maximum Memory Supported128GBChannel SupportedDual ChannelMemory Feature4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modulesExpansion SlotsPCI Express x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
*Supported by 11th Generation processors only.
1 x PCI Express x16 slot, running at x4 (PCIEX4)PCI Express x12 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 3.0 standard)Storage DevicesSerial ATA (SATA)6 x SATA 6Gb/sM.22 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) (M2M_SB)SATA RAID0/1/5/10Onboard AudioAudio ChipsetRealtek Audio codec
High Definition AudioAudio Channels7.1 ChannelsOnboard LANMax LAN Speed2.5GbpsRear Panel PortsBack I/O Ports1 x PS/2 keyboard/mouse port
1 x USB Type-C header, with USB 3.2 Gen2 support
1 x DisplayPort
1 x USB 3.2 Gen 2 Type-A port (red)
5 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacksInternal I/O ConnectorsOnboard USB1 x USB Type-C header, with USB 3.2 Gen1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headersOther Connectors1 x CPU fan header
4 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt add-in card connectors
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.Physical SpecForm FactorATXDimensions (W x L)12.0" x 9.6"Power Pin1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x 8-pin ATX 12V power connectorFeaturesFeaturesSupport for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
