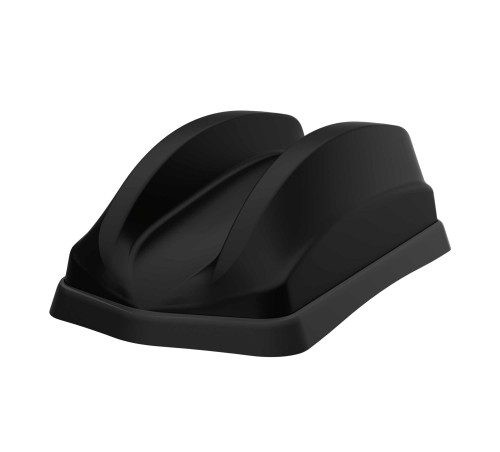

GPSD4-6-60-Q 4x4 4G/5G 4x4 WiFi and GPS/GNSS "Dual Sharkee" Sharkfin Antenna GPSD4-6-60-Q 4x4 4G/5G 4x4 WiFi and GPS/GNSS "Dual Sharkee" Sharkfin AntennaThe GPSD4-6-60-Q is an advanced 4G/5G, GPS/GNSS and WiFi antenna with a sharkfin style housing.

The housing contains a 4×4 MiMo antenna function for 4G/5G (617-960/1427-6000MHz), 4×4 MiMo dual-band WiFi, which supports WiFi 6e. It also includes 1x active antennas for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA and advanced filtering for LTE Band13/14 operation.

In addition, there is an integral stud mount for an external antenna whip. A blanking cap is supplied for when this whip position is not required.

The antenna should be installed on a metal panel when a comms whip is used, but if a whip is not required, then it may be fitted on a non-metallic panel and still offer similar performance.

The shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost-effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the antenna reduces vehicle damage, installation time, cost and visual impact whilst protecting a vehicle’s resale value.

Product Features

• Distinctive Automotive SharkFin design
• 10-in-1 Combination Antenna Solution
• Covers all 4G/5G LTE bands, WiFi 6e and GPS/GNSS bands

Performance Features

• 4×4 MiMo 600-6000MHz LTE antenna elemments
• 4×4 MiMo WiFi 6e, and 1x GPS/GNSS
• Allows for external VHF, UHF or combination whip for voice radio connectivity

Benefits

• Can come as a complete antenna kit with extension cables for a plug-and-play solution for any 5G vehicle router
• IP69K certified and UN ECE 118 certified
• Provides the user with an overt/covert all-in-one antenna solution

Applications

• Public safety
• Mass transit
• Utilities & Industrial

Electrical DataGlobal Positioning1562-1612 26dBPeak Gain (dBi)9dBiMax Input Power (W)Internal elements 5W / main whip 60WPatternOmni-directionalMechanical DataAvailable ColoursBlack, (GPS[X]D4W denotes White variant)Length (mm)253 (9.96”)Width (mm)142 (5.56”)Connector4x SMA (f), 3x SMA (f), 2x SMA (f)Operating Temperature-40° / +80°C (-40° / 176°F)Mounting DataMounting TypePanel MountMounting MethodFixingApprovals DataVandal ProtectionIP69K

Spec Sheet (Multiple models on sheet): GPSD4-6-60-Q
