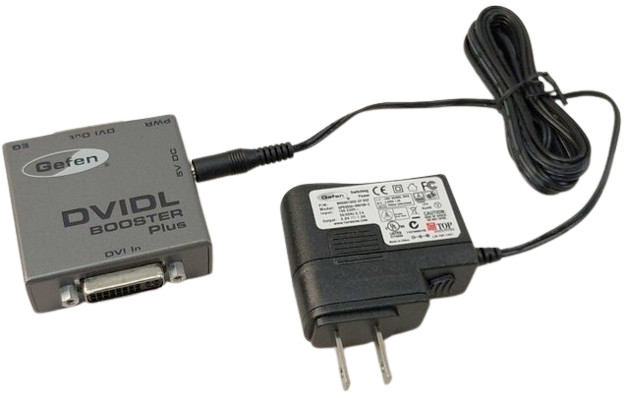

Gefen EXTDVI141DLBP DVI DL Booster PLUS Dual Link w/ AC Adapter
The Gefen DVI DL Booster Plus (Model: EXT-DVI-141DLBP) is a high-performance video signal amplifier designed to extend dual-link DVI displays up to 200 feet (60 meters) away from the video source. It functions by regenerating and equalizing the TMDS and DDC signals to eliminate digital artifacts like sparkles or static over long copper cable runs
Video & Signal SpecificationsMaximum Resolution: Up to 3840 x 2400.Supported Refresh Rates: Supports 3840 x 2400 @ 60 Hz (some operational documentation indicates up to 30 Hz depending on the maximum cable distance), and 1080p Full HD at 120Hz.Video Amplifier Bandwidth: 2 x 165 MHz.Input Video Signal: 1.2 Volts p-p.Input DDC Signal: 5 Volts p-p (TTL).Compliance: Fully HDCP compliant (pass-through) and compliant with DDWG standards for DVI monitors
Connectivity & InterfaceConnectors: 2 x DVI-I (29-pin) female ports (digital signal only).Configuration: One DVI input port from the computer source, one DVI output port to the display.Daisy-Chaining: Multiple units can be daisy-chained together to achieve distances beyond 200 feet
Power & Physical CharacteristicsPower Supply: 5V DC external power adapter (Model: EXT-PS51AIP).Power Consumption: 5 Watts maximum.Form Factor: External inline unit.Dimensions: 2.2" W x 0.8" H x 2.3" D.Weight: Unit weight is approx. 1 lb (shipping weight).Status Indicator: LED power indicator light.
