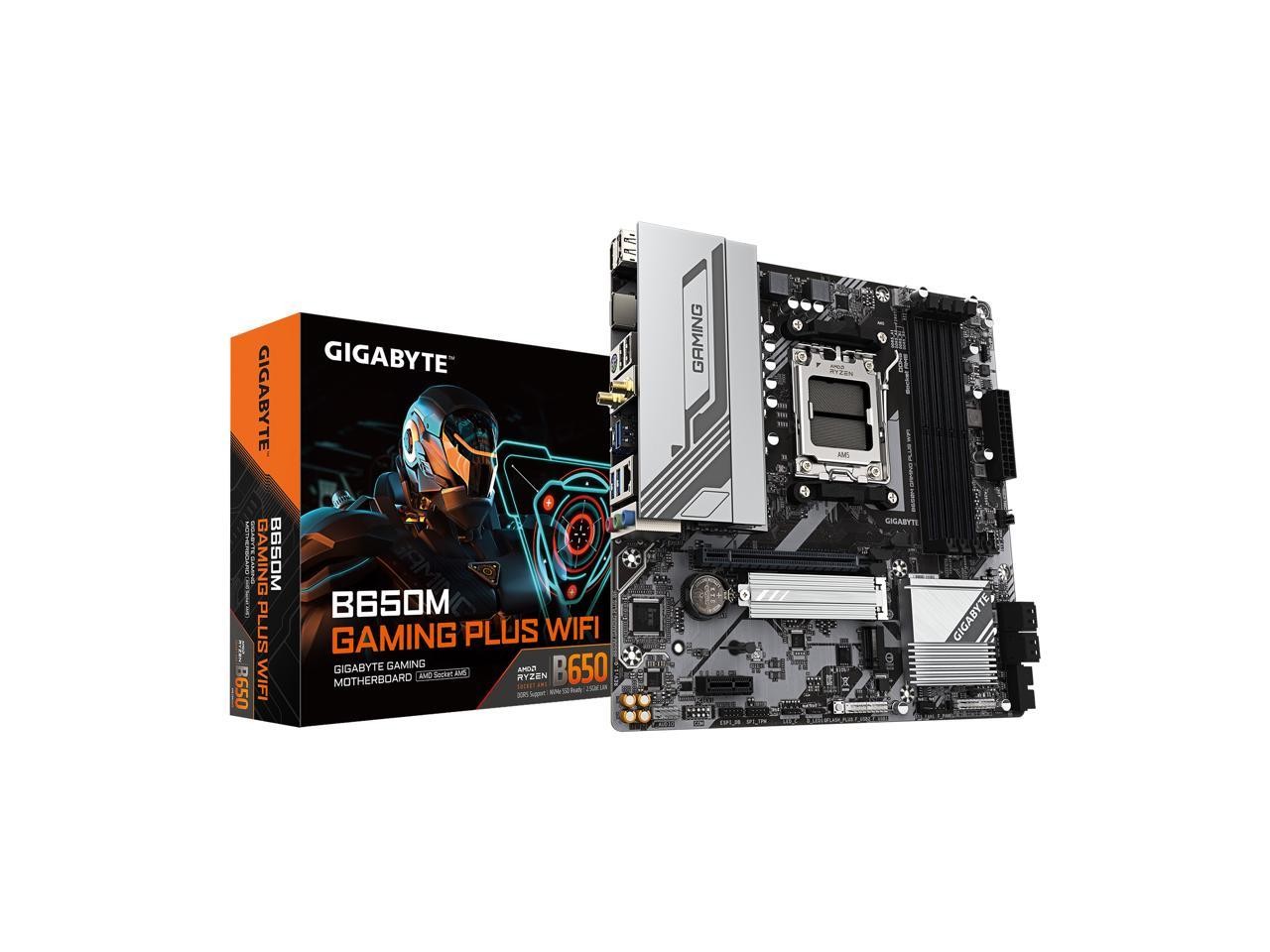

Gigabyte Ultra Durable B650M GAMING PLUS WIFI Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX (b650mgamingpluswifi) Gigabyte Ultra Durable B650M GAMING PLUS WIFI Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - Micro ATX (b650mgamingpluswifi)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Energy Efficiency Compliance: Energy-related Products Directive Ready (ErP Ready)

Environmental Compliance:

China Restriction of Hazardous Substances (China RoHS)
Restriction of Hazardous Substances (RoHS)
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Product Description

This item is brand-new, factory sealed.

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design

5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs

EXPO & XMP Support

DDR5 EXPO & XMP Overclocking Up to 7600 and Beyond

EXPO & XMP Support

Unlock DDR5 Voltage

EXPO & XMP Support

GIGABYTE Exclusive DDR5 Circuit Design

EXPO & XMP Support

Shielded Memory Routing

Note: The picture is for reference and may vary by mode.

EXPO & XMP Support

EXPO and XMP Dual Support

EXPO & XMP Support

DDR5 Auto Booster

EXPO & XMP Support

AMD EXPO™ and Intel® XMP 3.0 User Profile

- SPD Re-defined or retrieve from database

- Performance Simulation

- Save/Load Profile

- Overclocked Performance

- Profile Clearance

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ax Wi-Fi

The Wireless solution 802.11ax Wi-Fi enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN Achieve -fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 4.0 Hardware Design

GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

Hi-Fi Audio | High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!

• STEP 1:Plug 24pin & 8pin power supply cable on motherboard
• STEP 2:Download motherboard BIOS file and rename to ""gigabyte.bin"" , save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
• STEP 3:Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.

SpecificationPhysical CharacteristicsForm FactorMicro ATXWidth9.6"Depth9.6"I/O ExpansionsNumber of PCI Express x1 Slots1Total Number of Expansion Slots2PCI Express Standard

• PCI Express 4.0
• PCI Express 3.0

Number of PCI Express x16 Slots1Total Number of PCI Express Slots2MemoryMemory TechnologyDDR5 SDRAMNumber of Memory Slots4Memory Speed Supported

• 7600 MHz
• 7200 MHz
• 7000 MHz
• 6800 MHz
• 6600 MHz
• 6400 MHz
• 6200 MHz
• 6000 MHz
• 5600 MHz
• 5200 MHz
• 4800 MHz
• 4400 MHz

Memory Form Factor

• Ryzen 5
• Ryzen 7
• Ryzen 9

Total Processor Supported1Processor SocketSocket AM5Chipset ModelB650Onboard InterfacesNumber of SATA Interfaces4Total Number of Onboard USB Ports7Number of M.2 Interfaces2Number of Onboard USB 2.0 Ports4Interfaces/PortsHDMI Version 2.1 DisplayPortYesHDMIYesNumber of USB 2.0 Ports2Total Number of USB Ports6Number of USB 3.2 Gen 1 Ports3Number of Network (RJ-45) Ports1I/O ControllerRAID SupportedYesController TypeSerial ATA/600RAID Levels
