This is a tested pull in good condition. You will receive a rev 6 or Rev 5

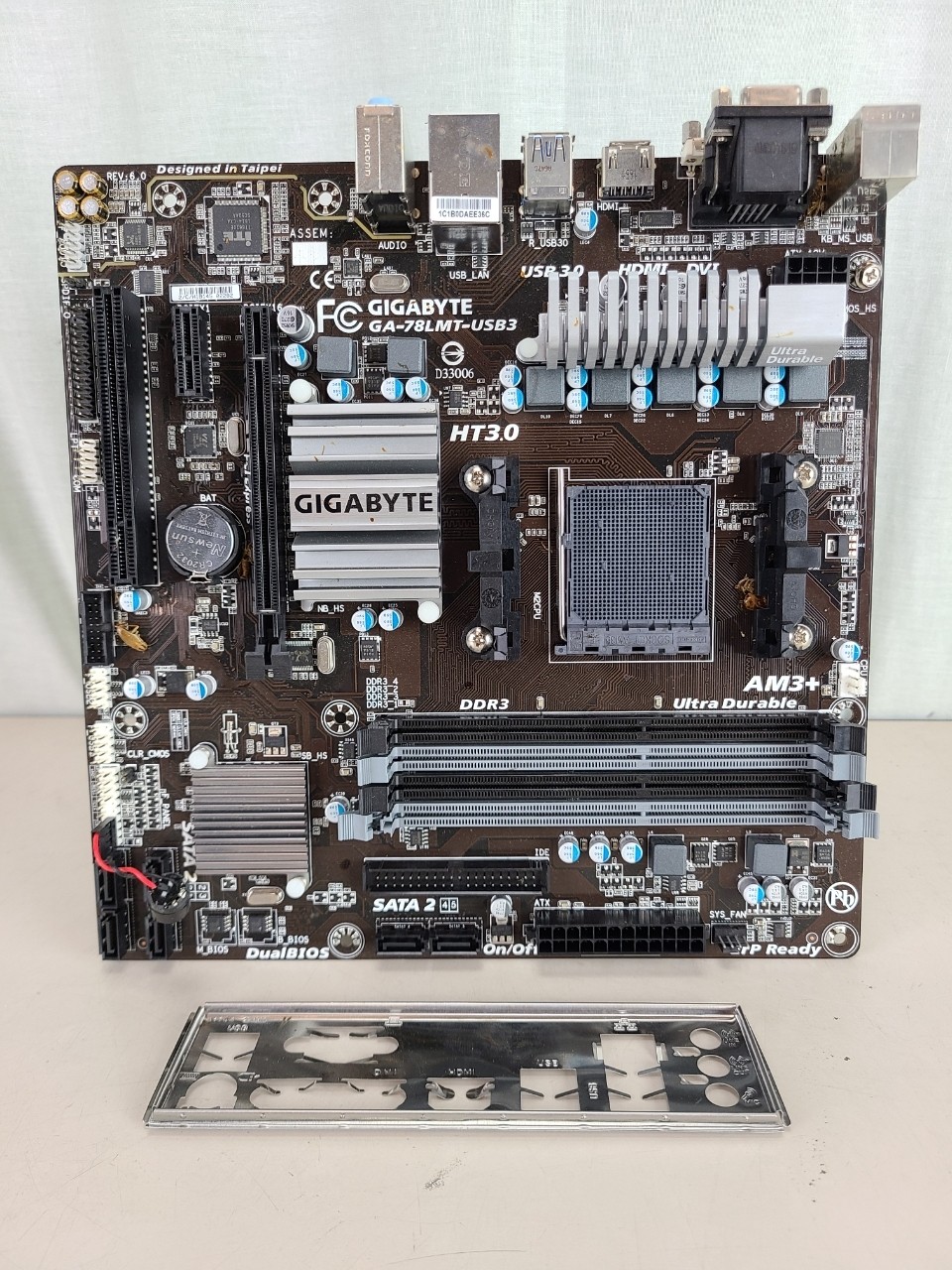

MB Model:GA-78LMT-USB3

I/O Sheild Included

Specs:

CPU Socket TypeAM3+/AM3CPU TypeSupport for AMD AM3+ processor
Support for AMD FX processor / AMD AM3 Phenom II processor / AMD Athlon II processorChipsetAMD 760GSouth BridgeAMD SB710Number of Memory Slots4x240pinMemory StandardDDR3 1600(O.C.)/ 1333/ 1066Maximum Memory Supported32GBChannel SupportedDual ChannelPCI Express 2.0 x161 x PCI Express x16 slot, running at x16PCI Express x11 x PCI Express x1 slot
(All PCI Express slots conform to PCI Express 2.0 standard.)PCI Slots1 x PCI SlotPATA1 x ATA133 2 Dev. MaxSATA 3Gb/s6 x SATA 3Gb/sSATA RAID0/1/10/JBODAudio ChipsetRealtek ALC892Audio Channels2/4/5.1/7.1-channel*
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.LAN ChipsetRealtek GbE LAN chipMax LAN Speed10/100/1000MbpsPS/21 x PS/2 keyboard/mouse portVideo Ports1 x D-Sub port
1 x DVI-D portHDMI1 x HDMIRJ451 x RJ45USB 3.02 x USB 3.0/2.0 portsUSB 1.1/2.04 x USB 2.0/1.1 portsAudio Ports3 x audio jacks (Line In/Line Out/Microphone)Onboard USB1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headersOther Connectors1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumperForm FactorMicro ATXDimensions (W x L)9.6" x 9.6"Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connectorFeaturesHyper Transport Bus:
HyperTransport 3.0
Support up to 5200 MT/s

I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control (Note 5)

BIOS:
2 x 32 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features:
Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for EasyTune (Note 6)
Support for Smart Recovery2
Support for Auto Green
Support for ON/OFF Charge
Support for Q-Share

Bundle Software:
Norton Internet Security (OEM version)

Operating System:
Support for Windows 7/XP

(Note 5) Whether the fan speed control function is supported will depend on the cooler you install.

;

Shipping Box Size 14 X 12 X 3.5Estimated Package Weight:3lbs.Item SKU: M11944Item Location: R1B14, R13A7
