Dear Buyers:
Welcome to our store.Before shipping, we'll test and examine all the items,ensure there is no defects or DOA.
We'll put the item into an Anti-electrostatic plastic bag, then put it into a safe package to avoid being injured by shipping.Warranty:
Our item warranty 90 days, the following reason we don't accept returns:
A. Wrong order.
B. The item didn't buy from us.
C. Damage the item on purpose.Kindly Tips:
A. If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
B. Please DO NOT use single-sidememory, most motherboards can't support suchmemory.C. We DO use genuine brandmemory, please do not use fakememory or if you're not sure whether yourmemoryfake or not, please do not try it on our motherboard.Packet Contained:
1 x motherboard
2 x SATA II cables
1 x I/O shieldParts Specification:

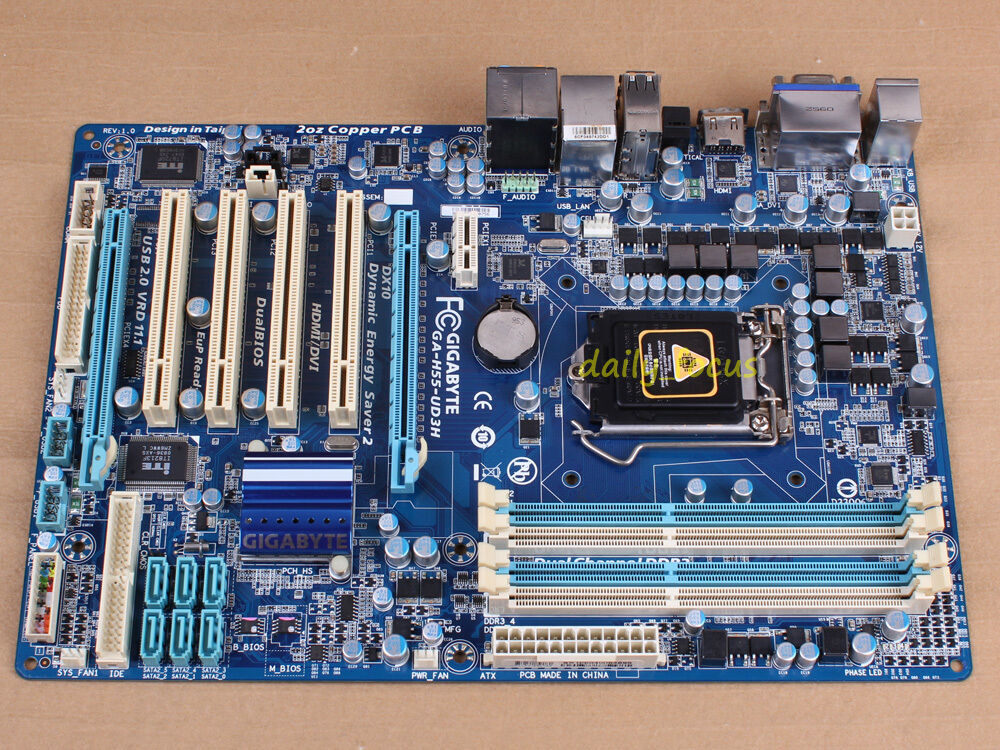

CPU

1. Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor/ Intel® Core™ i3 series processor in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
2. L3 cache varies with CPU

Chipset

1. Intel® H55 Express Chipset

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
2. Dual channel memory architecture
3. Support for DDR3 2200+/1800/1600/1333/1066/800 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

* To reach DDR3 2200 MHz and above, you are required to use with Intel Core i7/Core i5 CPU without HD Graphics and install a discrete graphics card.
When using Intel Core i5/Core i3/ Pentium CPU with HD Graphics, the maximum memory speed supported is 1666 MHz.
* Go to GIGABYTE's website for the latest memory support list.

Onboard Graphics

Integrated in the Chipset:

1. 1 x D-Sub port (Note 2)
2. 1 x DVI-D port (Note 2) (Note 3) (Note 4)
3. 1 x HDMI port (Note 2) (Note 4)

Audio

1. Realtek ALC889 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF In/Out
5. Support for CD In

LAN

1. 1 x RTL8111D chip (10/100/1000 Mbit)

Expansion Slots

1. *1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 5) (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
2. *1 x PCI Express x16 slot, running at x4 (PCIEX4) (Note 6)
3. 1 x PCI Express x1 slots
4. 4 x PCI slots

Multi-Graphics Technology

1. Support for ATI CrossFireX™ technology(Note 7)

Storage Interface

Chipset:

1. 6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices

iTE IT8213 chip:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

iTE IT8720 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

Chipset:

1. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 6 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 2 x system fan headers
8. 1 x power fan header
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x CD In connector
12. 1 x S/PDIF In header
13. 1 x S/PDIF Out header
14. 2 x USB 2.0/1.1 headers
15. 1 x serial port header
16. 1 x clearing CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard or PS/2 mouse port
2. 1 x D-Sub port (Note 2)
3. 1 x DVI-D port (Note 2) (Note 3) (Note 4)
4. 1 x HDMI port (Note 2) (Note 4)
5. 1 x optical S/PDIF Out connector
6. 8 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

1. iTE IT8720 chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System/Power fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control (Note 8)

BIOS

1. 2 x 64 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune
8. Support for Dynamic Energy Saver™ 2
9. Support for Smart 6™
10. Support for Auto Green
11. Support for Q-Share

Form Factor

1. ATX Form Factor; 30.5cm x 21.0cm

Remark

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Note

(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) To use the onboard D-Sub, DVI-D and HDMI ports, you must install an Intel CPU with integrated graphics.
(Note 3) The DVI-D port does not support D-Sub connection by adapter.
(Note 4) You can use only one of the onboard digital graphics ports (e.g. HDMI and DVI-D) for output when in the BIOS Setup program or when during the POST screens.
(Note 5) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(Note 6) When the PCIEX1 slot is populated with an expansion card, the PCIEX4 slot will operate at up to x1 mode.
(Note 7) The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX™ is enabled.
(Note 8) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.(Note 9) Available functions in EasyTune may differ by motherboard model.
