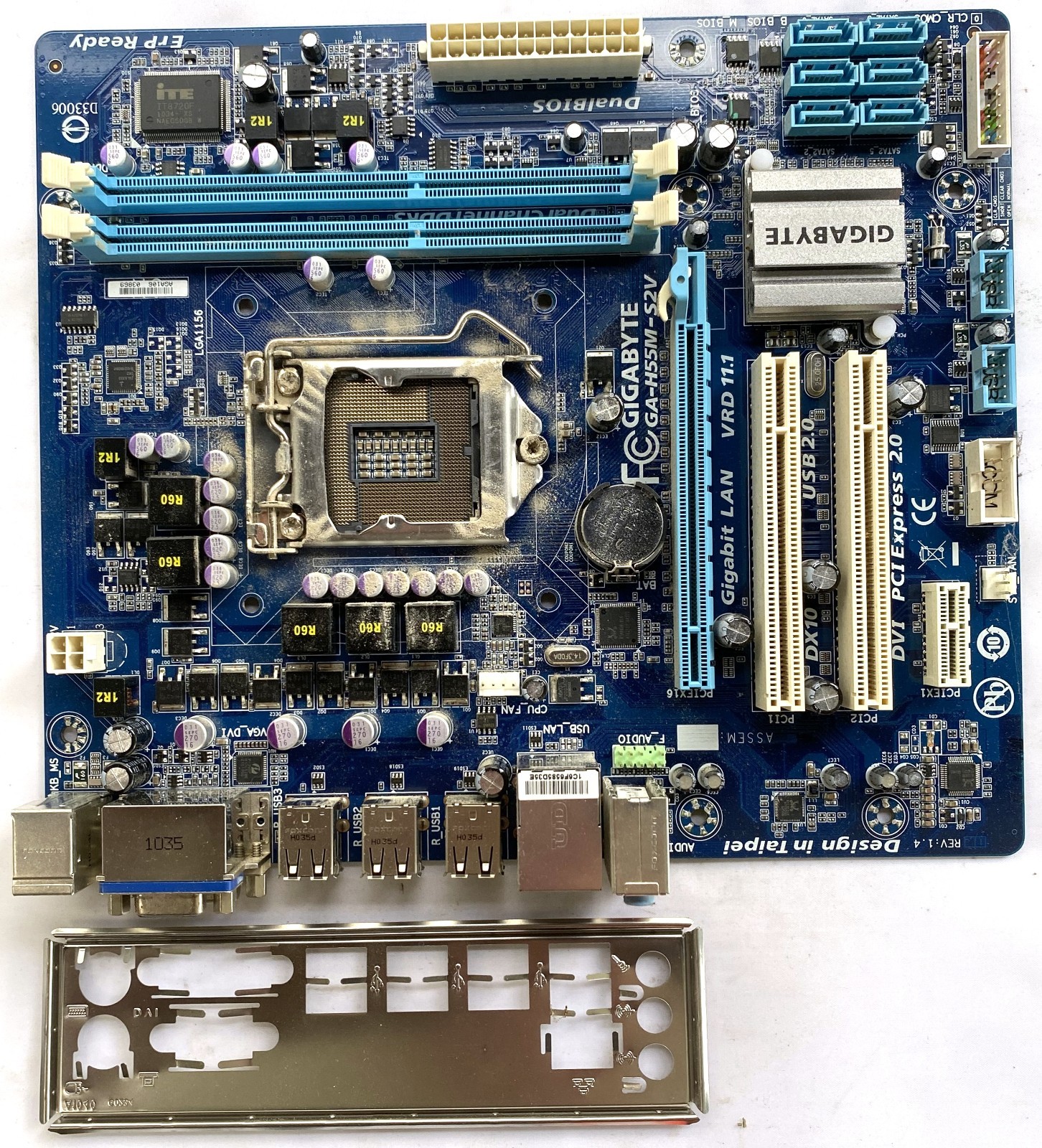

For sale is one Gigabyte GA-H55M-S2V LGA1156 LGA 1156 Socket H/H1 Motherboard - Tested WorkingKey Technical Specifications

• CPU
• 1. Support for Intel®Core™ i7 processors/Intel®Core™ i5 processors/Intel®Core™ i3 processors/Intel®Pentium®processors in the LGA1156 package (Go to GIGABYTE's website for the latest CPU support list.)
  2. L3 cache varies with CPU

• Chipset
• 1. Intel®H55 Express Chipset

• Memory
• 1. 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1)
  2. Dual channel memory architecture
  3. Support for DDR3 2200/1800/1600/1333/1066/800 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
  (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

• Onboard Graphics
• Integrated in the Chipset:
  1. 1 x DVI-D port (Note 2)(Note 3)
  2. 1 x D-Sub port (Note 2)

• Audio
• 1. Realtek ALC888B codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel (Note 4)

• LAN
• 1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)

• Expansion Slots
• 1. 1 x PCI Express x16 slot, running at x16
     (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
  2. 1 x PCI Express x1 slot
  3. 2 x PCI slots

• Storage Interface
• Chipset:
  1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices

• USB
• Chipset:
  1. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

• Internal I/O Connectors
• 1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 6 x SATA 3Gb/s connectors
  4. 1 x CPU fan header
  5. 1 x system fan header
  6. 1 x front panel header
  7. 1 x front panel audio header
  8. 2 x USB 2.0/1.1 headers
  9. 1 x clearing CMOS jumper

• Back Panel Connectors
• 1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port (Note 2)
  4. 1 x DVI port (Note 2)(Note 3)
  5. 8 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks (Line In/Line Out/Microphone)

• I/O Controller
• 1. iTE IT8720 chip

• H/W Monitoring
• 1. System voltage detection
  2. CPU temperature detection
  3. CPU/System fan speed detection
  4. CPU overheating warning
  5. CPU/System fan fail warning
  6. CPU fan speed control (Note 5)

• BIOS
• 1. 2 x 8 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

• Unique Features
• 1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress BIOS Rescue
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune (Note 6)
  8. Support for Auto Green
  9. Support for ON/OFF Charge
  10. Support for Q-Share

• Bundled Software
• 1. Norton Internet Security (OEM version)

• Operating System
• 1. Support for Microsoft®Windows 7/Vista/XP

• Form Factor
• 1. Micro ATX Form Factor; 24.4cm x 21.0cm

• Note
• (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  (Note 2) To use the onboard DVI-D/D-Sub port, you must install an Intel CPU with integrated graphics.
  (Note 3) The DVI-D port does not support D-Sub connection by adapter.
  (Note 4) To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  (Note 5) Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
  (Note 6) Available functions in EasyTune may differ by motherboard model.
