Hello, if you need memory, please refer to the following link
SK Hynix 64GB2Rx4 DDR5 RDIMM PC5-48008-RAD-1010-NT 4*64g=256g Hynix 64GB2Rx4 DDR5 RDIMM PC5-48008-RAD-1010-NT 8*64g=512g Hynix 64GB2Rx4 DDR5 RDIMM PC5-48008-RAD-1010-NT 12*64g=768g Hynix 64GB2Rx4 DDR5 RDIMM PC5-48008-RAD-1010-NT 24*64g=1536g

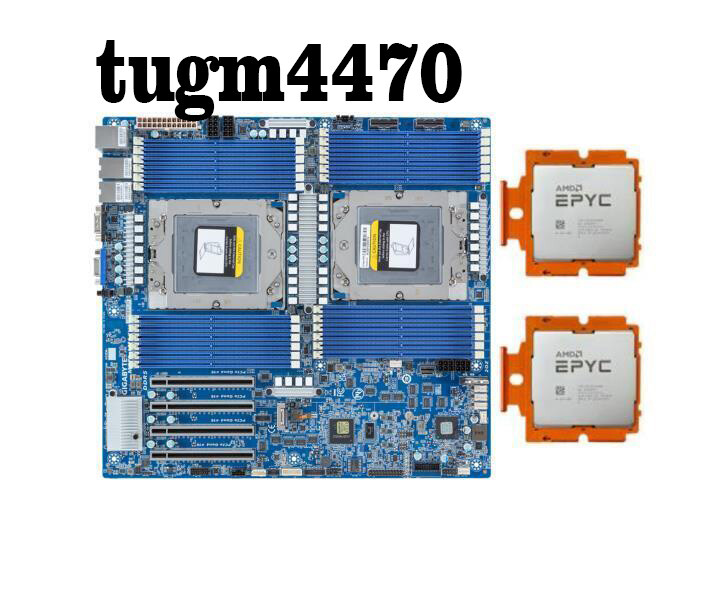

Model: EPYC 9654 (GENOA Dual-socket) - P/N: 100-000000894
- 96-Core / 192-Threads
- Base Frequency: 2.4 GHz
- Max Turbo Frequency: 3.7 GHz
- Cache: 256 MB L3
- DDR5-4800
- 128L PCIe Gen5
- Sockets Supported SP5
- 360W (320W-400W)
304.8W x 335.2D mm
AMD EPYC™ 9004 series processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
Up to 128-core, 256 threads per processor
cTDP up to 400W
Socket SP5
DDR5 memory supported only
12-Channel memory architecture per processor
RDIMM modules up to 128GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz
NCSI function supported1 x 10/100/1000 management LAN
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2 x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports, from CPU_1
Slot_3: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0
Slot_2: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1
Slot_1: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_11 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards2 x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports, from CPU_1
2 x 8-pin ATX 12V power connectors
2 x 6-pin ATX 12V power connector
2 x MCIO 8i connectors
1 x M.2 slot
2 x CPU fan headers
4 x System fan headers
1 x USB 3.2 Gen1 header
1 x TPM header
1 x Front panel header
1 x HDD backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Optional TPM2.0 kit:CTM010
·Dashboard
·HTML5 KVM
·Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
·Sensor Reading History Data
·FRU Information
·SEL Log in Linear Storage / Circular Storage Policy
·Hardware Inventory
·Fan Profile
·System Firewall
·Power Consumption
·Power Control
·LDAP / AD / RADIUS Support
·Backup & Restore Configuration
·Remote BIOS/BMC/CPLD Update
·Event Log Filter
·User Management
·Media Redirection Settings
·PAM Order Settings
·SSL Settings
·SMTP Settings
2 x 8-pin ATX 12V power connectors
2 x 6-pin ATX 12V power connector
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
1 x I/O shield
1 x Quick start guide
1 x SlimSAS 4i to 4 x SATA 6Gb/s cable
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
10 x I/O shields
Carton dimensions: 600 x 473 x 517 mm
Bulk: 9MZ73LM0NR-000-20*Part Numbers:
- I/O shield: 12AIO-MZ73L0-00R
- SlimSAS 4i to 4 x SATA 6Gb/s cable: 25CFM-600800-A4RNOTE: Please select GIGABYTE qualified cable to make sure Gen5 signal quality
