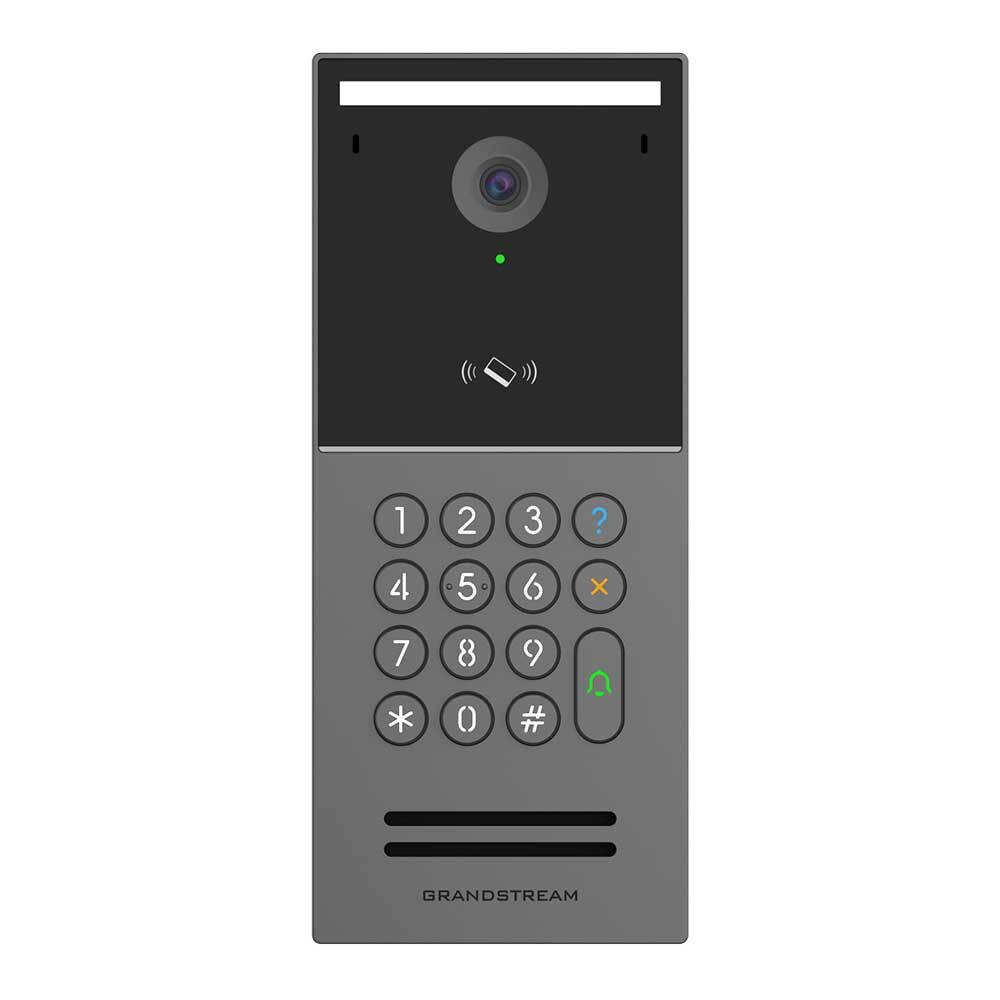

Grandstream GDS3725 Smart IP Video Door Station with 4MP Camera & KeypadGrandstream GDS3725 Smart IP Video Door Station with 4MP Camera & Keypad The Grandstream GDS3725 Smart IP Video Door Station combines an IP intercom, HD surveillance camera, and secure access controller into a single, weatherproof unit. Designed for commercial buildings, schools, warehouses, and gated facilities, it gives you clear video of every visitor while tightly controlling who can unlock the door. A 4MP HDR image sensor and AI-powered image processing deliver crisp 1080p full HD video and a wide 127° horizontal field of view, so you can identify people and objects even in challenging lighting. Built-in white LEDs provide intelligent fill light for low-light scenes, while PIR detection monitors motion within roughly 10–16 feet (3–5 m). The GDS3725’s metal housing is IP66 weather-rated and IK10 vandal resistant, making it suitable for exposed outdoor installations and high-traffic areas. A numeric keypad and multi-technology IC/ID card reader support flexible access methods, from PIN codes to key cards and NFC credentials. Solid State Relay (SSR) outputs help protect against tampering and external magnetic interference. Thanks to built-in dual microphones, a 3W speaker, and AI-based noise reduction, visitors and staff can communicate clearly, even in noisy environments. The unit speaks standard SIP, so it integrates with IP PBXs, video phones, and paging systems, and it’s compatible with Grandstream’s GSC357x intercom stations, GXV video phones, Wave Mobile App, and GNS network storage for a complete end-to-end solution. Management is handled through Grandstream’s SecureAccess mobile app and GDS Manager software, which let you configure users, PINs, card permissions, and remote door-opening options, plus review logs and event snapshots from anywhere. For more information, please see the Grandstream GDS3725 Datasheet Quick Model Differences: GDS3725: 15-key numeric keypad, added Wiegand 26/34 input and output, Built with a metal casing to make it IP66 weatherproof and IK10 vandal resistant GDS3726: 1 doorbell key, added Wiegand 26/34 input and output, Built with a metal casing to make it IP66 weatherproof and IK10 vandal resistant GDS3727: 1 doorbell key, Built with a plastic casing IK07 and IP66 weatherproof, Wi-Fi 6 Key Features & Benefits 4MP ultra HD sensor with 1080p video output – capture detailed images while streaming and recording at up to 1920×1080 @ 30fps Wide 127° (H) field of view – monitor a broad area at the door, gate, or entry vestibule with a single device AI ISP and intelligent fill light – advanced image processing, HDR, and white LED illumination help identify people within about 3 m (10 ft), even in very low light Rugged metal housing – IP66 weatherproof and IK10 vandal resistant, built for outdoor and high-risk locations Flexible access control – supports PIN codes, IC/ID and NFC cards, BLE-based mobile credentials, SecureAccess app, QR codes, and SIP calls for remote door opening Integrated keypad & RFID reader – numeric keypad plus multi-technology RFID (13.56 MHz & 125 kHz) supporting MIFARE Classic, Ultralight, PLUS, and DESFire; store up to 5,000 IDs Powerful intercom audio – dual microphones with AI noise reduction and a 3W speaker provide clear two-way voice Advanced analytics & alarms – AI-based motion detection, PIR sensor, 3 alarm inputs, 2 alarm outputs, and 2 SSR relays for locks, door strikes, or sirens ONVIF Profile S support – integrates with third-party NVRs and VMS platforms for recording and video management PoE or DC power – single-cable installation with 802.3af PoE or 9–36V DC power input Technical Highlights Camera: 4MP HDR sensor, H.264 + Motion JPEG Lens & View: F2.2, approx. 127° (H) × 70° (V) × 152° (D) Illumination: White light with 6 LEDs for day/night operation Video: Up to 1920×1080 @ 30 fps PIR Sensor: Approx. 3–5 m (10–16 ft) range Audio: 2 microphones, 3W speaker, AI noise reduction RFID: 13.56 MHz & 125 kHz, up to 5,000 card records Interfaces: 1× RJ45 with PoE, RS485, Wiegand 26/34 in & out, 3× alarm in, 2× alarm out, 2× SSR relays, SD card slot (up to 256 GB) Power: 9–36V DC (12W) or 802.3af PoE (Class 3) Housing: 204 × 87 × 35.5 mm, approx. 1.56 kg; IP66, IK10 rated Operating Environment: –30°C to +60°C; 10–90% RH (non-condensing) Package: GDS3725 Device, Quick Installation, Guide, Wall Bracket, IC Card, Rain cover (optional) Grandstream GDS3725 Smart IP Video Door Station with 4MP Camera & Keypad
The Grandstream GDS3725 Smart IP Video Door Station combines an IP intercom, HD surveillance camera, and secure access controller into a single, weatherproof unit. Designed for commercial buildings, schools, warehouses, and gated facilities, it gives you clear video of every visitor while tightly controlling who can unlock the door.
A 4MP HDR image sensor and AI-powered image processing deliver crisp 1080p full HD video and a wide 127° horizontal field of view, so you can identify people and objects even in challenging lighting. Built-in white LEDs provide intelligent fill light for low-light scenes, while PIR detection monitors motion within roughly 10–16 feet (3–5 m).
The GDS3725’s metal housing is IP66 weather-rated and IK10 vandal resistant, making it suitable for exposed outdoor installations and high-traffic areas. A numeric keypad and multi-technology IC/ID card reader support flexible access methods, from PIN codes to key cards and NFC credentials. Solid State Relay (SSR) outputs help protect against tampering and external magnetic interference.
Thanks to built-in dual microphones, a 3W speaker, and AI-based noise reduction, visitors and staff can communicate clearly, even in noisy environments. The unit speaks standard SIP, so it integrates with IP PBXs, video phones, and paging systems, and it’s compatible with Grandstream’s GSC357x intercom stations, GXV video phones, Wave Mobile App, and GNS network storage for a complete end-to-end solution.
Management is handled through Grandstream’s SecureAccess mobile app and GDS Manager software, which let you configure users, PINs, card permissions, and remote door-opening options, plus review logs and event snapshots from anywhere.
For more information, please see the Grandstream GDS3725 Datasheet
Quick Model Differences:
- GDS3725: 15-key numeric keypad, added Wiegand 26/34 input and output, Built with a metal casing to make it IP66 weatherproof and IK10 vandal resistant
- GDS3726: 1 doorbell key, added Wiegand 26/34 input and output, Built with a metal casing to make it IP66 weatherproof and IK10 vandal resistant
- GDS3727: 1 doorbell key, Built with a plastic casing IK07 and IP66 weatherproof, Wi-Fi 6
Key Features & Benefits
- 4MP ultra HD sensor with 1080p video output – capture detailed images while streaming and recording at up to 1920×1080 @ 30fps
- Wide 127° (H) field of view – monitor a broad area at the door, gate, or entry vestibule with a single device
- AI ISP and intelligent fill light – advanced image processing, HDR, and white LED illumination help identify people within about 3 m (10 ft), even in very low light
- Rugged metal housing – IP66 weatherproof and IK10 vandal resistant, built for outdoor and high-risk locations
- Flexible access control – supports PIN codes, IC/ID and NFC cards, BLE-based mobile credentials, SecureAccess app, QR codes, and SIP calls for remote door opening
- Integrated keypad & RFID reader – numeric keypad plus multi-technology RFID (13.56 MHz & 125 kHz) supporting MIFARE Classic, Ultralight, PLUS, and DESFire; store up to 5,000 IDs
- Powerful intercom audio – dual microphones with AI noise reduction and a 3W speaker provide clear two-way voice
- Advanced analytics & alarms – AI-based motion detection, PIR sensor, 3 alarm inputs, 2 alarm outputs, and 2 SSR relays for locks, door strikes, or sirens
- ONVIF Profile S support – integrates with third-party NVRs and VMS platforms for recording and video management
- PoE or DC power – single-cable installation with 802.3af PoE or 9–36V DC power input
Technical Highlights
- Camera: 4MP HDR sensor, H.264 + Motion JPEG
- Lens & View: F2.2, approx. 127° (H) × 70° (V) × 152° (D)
- Illumination: White light with 6 LEDs for day/night operation
- Video: Up to 1920×1080 @ 30 fps
- PIR Sensor: Approx. 3–5 m (10–16 ft) range
- Audio: 2 microphones, 3W speaker, AI noise reduction
- RFID: 13.56 MHz & 125 kHz, up to 5,000 card records
- Interfaces: 1× RJ45 with PoE, RS485, Wiegand 26/34 in & out, 3× alarm in, 2× alarm out, 2× SSR relays, SD card slot (up to 256 GB)
- Power: 9–36V DC (12W) or 802.3af PoE (Class 3)
- Housing: 204 × 87 × 35.5 mm, approx. 1.56 kg; IP66, IK10 rated
- Operating Environment: –30°C to +60°C; 10–90% RH (non-condensing)
- Package: GDS3725 Device, Quick Installation, Guide, Wall Bracket, IC Card, Rain cover (optional)
×
